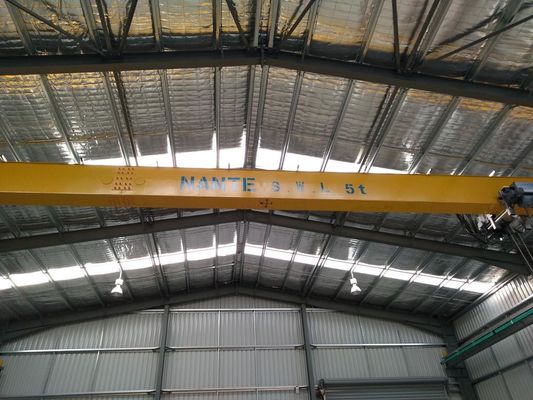

Electric Single Girder Overhead Bridge Cranes Traveling Type LDX3t-18m

Electric Single Girder Overhead Bridge Cranes Traveling Type LDX3t-18m

Electric Single Girder Overhead Bridge Cranes Traveling Type LDX3t-18m
Electric Single Girder Overhead Bridge Cranes Traveling Type LDX3t-18m

Large Image :  Electric Single Girder Overhead Bridge Cranes Traveling Type LDX3t-18m Get Best Price

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Nante
Model Number: LDX10t-12m
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: N/A
Packaging Details: Naked
Delivery Time: Within 2 months
Payment Terms: L/C, T/T
Detailed Product Description
Capacity: 10T Span: 12m
Material: Q235B Color: Yellow
Delivery Time: 35 Days Packing: Naked



Electric Single Girder Overhead Bridge Cranes Traveling Type LDX3t-18m



Technical Parameters

      3.2T
  Span m 10.5 14 17.5 21 24.5
Speed Lifting Speed m/min 5/0.8
Trolley Speed 5.0/20
Bridge Speed 8/32
Motor Power Lifting Motor kW 3.2/0.45 3.2/0.45 3.2/0.45 3.2/0.45 3.2/0.45
Trolley Motor 0.64x1 0.64x1 0.64x1 0.64x1 0.64x1
Bridge Motor 0.37x2 0.37x2 0.37x2 0.55x2 0.55x2
Crane Power 4.58 4.58 4.58 4.94 4.94
Basic Data Max.Wheel Load KN 20.8 22.8 24.8 27.3 31.4
Wheel Dia.   125 125 125 125 125
Model of End Carriage   HSE125-15 HSE125-20 HSE125-25 HSE125-30 HSE125-35
Gear Model   SK0282-0.37 SK0282-0.37 SK0282-0.37 SK0282-0.55 SK0282-0.55
Crane Wheel Qty. Pcs 4 4 4 4 4
Crane Rail   30×50 30×50 30×50 30×50 30×50





        Single girder Electric Hoist Travelling Bridge crane systems provide solution for materials handling even when production units or warehouses are comparatively small and low.To minimize the capital costs for buildings modifications toprovide extra space, we utilize the minimum of space for our crane systems.





DESIGN:
        Compact dimensions, low weight, easy to operate and easy to maintain, modular design with direct fits between components



Structure:
        Bridge Girder, End carriages, Crab Frame manufactured from box plate design / Rolled Sections. If required 100% radiography of all butt welding joints of bridge and end carriages can be provided.



MOTORS:
        Nante Crane uses sturdy cylindrical/ conical rotor pole-changing motors with elegant continuous cast aluminum sections, integrated safety brakes insulation class F, IP54 protection.



CONTROLS:
        Pendant control from floor, master control switches, master controllers in the driver's cabin can be provided. Radio remote control can be provided on request.



ELECTRICAL PANEL:
        Modular design, covering a very wide operating range. The systems are designed for ease of installation and maintenance and reliable operation, with fuseless circuitry, ducted wiring and non-screwed terminals. Each drive group is equipped with a motor overload protection device to provide effective protection against inadmissible overloading.


PAINTING:
        Every component & part is thoroughly scrubbed & painted with two coats of primer before assembly & two coats of synthetic enamel after testing.
