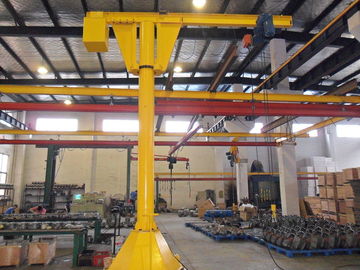

Custom Slewing Movable Jib Cranes with 500kg Max. Lifting Load for Marine Loading 500kg Capacity BX-Z type

Custom Slewing Movable Jib Cranes with 500kg Max. Lifting Load for Marine Loading 500kg Capacity BX-Z type

Custom Slewing Movable Jib Cranes with 500kg Max. Lifting Load for Marine Loading 500kg Capacity BX-Z type
Custom Slewing Movable Jib Cranes with 500kg Max. Lifting Load for Marine Loading 500kg Capacity BX-Z type Custom Slewing Movable Jib Cranes with 500kg Max. Lifting Load for Marine Loading 500kg Capacity BX-Z type Custom Slewing Movable Jib Cranes with 500kg Max. Lifting Load for Marine Loading 500kg Capacity BX-Z type

Large Image :  Custom Slewing Movable Jib Cranes with 500kg Max. Lifting Load for Marine Loading 500kg Capacity BX-Z type Get Best Price

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Shuangpeng
Certification: CE, ISO
Model Number: BX-Z-500kg
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: N/A
Packaging Details: Naked
Delivery Time: Within 2 months
Payment Terms: L/C, T/T
Detailed Product Description
Brand: NANTE Original: China
Condition: New Type: Jib Crane
High Light:

jib boom crane

,

wall mount jib crane

Custom Slewing Movable Jib Cranes with 500kg Max. Lifting Load for Marine Loading



The Jib crane is an industrial component, which belongs to light working strength crane. It is composed of column, slewing driving device of slewing arm and electric hoist. It has light self weight, large span, large lifting capacity, economy and durability.

Movable Arm Rotation Jib Crane is widely used to control or position a load in areas that are generally inaccessible to other material handling equipment. They are designed to provide reliable long-life performance with minimum maintenance. This jib crane provides 360-degree rotation our jib include taglines, festoon systems, collector ring assemblies and motorized rotation. The flexible move mechanism make you handle lifting tasks at ease. Motorized and Manual type as options for trolley travelling



Jib cranes are widely used in the following applications:

  1. Fitting & fabrication workstations
  2. Building Maintenance
  3. Plant room maintenance
  4. Marine loading and maintenance
  5. Machine centre loading and maintenance to name a few applications

The versatility of a Nante Jib Crane is unmatched. Our Jib Cranes offer an extensive range of installation options and capacities, with the power to create the best material handling solution with maximum space utilization. A Jib Crane can be mounted to your facility floor, foundation, column, pillar or wall to accommodate any space constraints or work plans.

Design features include:

  1. Precision upper pivot roller bearing
  2. Easy set, self adjusting slew brake
  3. Range of models available from full manual to fully powered operation
  4. Wall, column or freestanding mounts available
  5. Peace of mind knowing that your crane is designed by qualified engineers and manufactured by qualified boilermakers, electricians and fitters.
  6. Medium / heavy weight design
  7. Sturdy steel structure with low solid-web jib for high usable crane hook height.
  8. Safty anchoring with sturdy, ribbed based and a large number of anchor bolts.
  9. Rated slewing range infinite X 360 degree.
  10. Scope of Supply includes anchor bolts, template and plan for foundation design.
  11. For operation in completely enclosed buildings.
  12. LIMIT SWITCHES: To prevent over hoisting & over lowering of hook

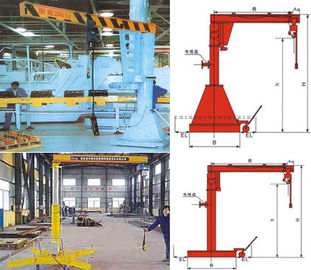

General Drawing or Sketch or Draft Drawing

Custom Slewing Movable Jib Cranes with 500kg Max. Lifting Load for Marine Loading 500kg Capacity BX-Z type 0



Technical Parameters



Type Rated capacity
(t)
Base width
B
Feet wide
E
L(mm) h H
EBZ0.125 0.125 1200 1018 3000 3000 3700
EBZ0.25 0.25 1400 1218 3000 3000 3750
EBZ0.5 0.5 1400 1218 3000 3000 3900





Place of Origin:

Zhejiang, China

Brand Name:

Shuangpeng

Model Number:

BX-Z-500kg

Certification:

ISO9001:2008

Max. Lifting Load

500kg

Span

--

Max. Lifting Height

--

Crane Travelling Speed

--

Trolley Travelling Speed

--
