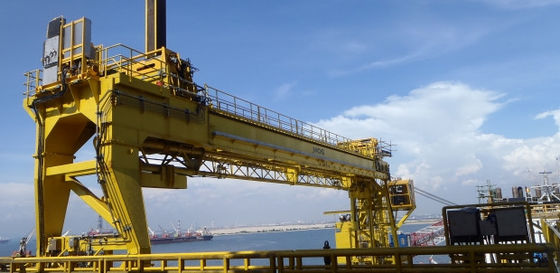

Truss Double Girder Gantry Crane for Bridge Construction

Truss Double Girder Gantry Crane for Bridge Construction

Truss Double Girder Gantry Crane for Bridge Construction
Truss Double Girder Gantry Crane for Bridge Construction Truss Double Girder Gantry Crane for Bridge Construction Truss Double Girder Gantry Crane for Bridge Construction Truss Double Girder Gantry Crane for Bridge Construction

Large Image :  Truss Double Girder Gantry Crane for Bridge Construction Get Best Price

Product Details:

Place of Origin: Zhejiang, China
Brand Name: Nante
Model Number: QM70T-30M-22M

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: N/A
Packaging Details: Naked
Delivery Time: Within 2 months
Payment Terms: L/C, T/T
Detailed Product Description
Capacity: 70T Span: 30m
Height: 22m
High Light:

rail mounted gantry crane

,

launching girder bridge

Truss Double Girder Gantry Crane for Bridge Construction


Truss double girder electric Gantry Cranes for highway and bridge construction offer an economical solution to overhead cranes when the building is inadequate to support a bridge crane or the crane system is to be located outdoors. Truss Girder Portal Gantry Cranes are a variation from the typical beam or box girder that becomes economical when long crane spans are required. Additionally, many truss girders allow the hoist to be located "up into" truss thereby offering much better hook height than a single beam or box girder crane. Also, truss girder cranes are typically more economical than long span beam or box girder cranes. Truss girder cranes offer almost limitless span - but capacity is often restricted with longer spans. Truss girders



Gantry crane can be applied to both single girder and double girder format. It is ideal for outdoor applications where lifting devices can be applied without the cost of supporting steelwork. Indoor applications are also available where with a low ceiling and overhead cranes are not suitable. Typical occasions of goliath gantry crane include steel stock yards, loading areas, the concrete industry, ship building, and workshops.
Gantry/Portal/Goliath cranes are widely used in the following applications:

1.Precast yards

2.Shipbuilding

3.Container Handling

4.Construction sites

5.Marble / Granite Industry

6.Mining Maintenance

7.Bridge Construction sites

8.Road Construction Sites

9.Stockyards

10.Scrapyards

11Railway yards



Unique design features include:

1. Steel structure part of the gantry crane is welded by U-steel with light weight, low cost and convenient assembly and disassembly.

2. Fast lifting speed and high wind resistance

3.Many safety devices such as overload limiter, over-height limiter and overspeed switch are added to ensure products’ safe operation.

4.We can design gantry cranes with different specifications to meet different customers’ requirements.

5.Full penetration sub-arc welded top flanges for the ultimate in strength and fatigue resistance.

6.Line bored one piece end carriages to ensure precise alignment and smooth travelling options.

7.High quality enamel paint with optional 2-pak or client specific systems.

                  8.Oversized motors and controls to allow operation in high wind conditions, sandblast and high performance paint systems, galvanized   fasteners, space heaters in motors and controls, hoist covers, motor covers etc.
                   9 Peace of mind knowing that your crane is designed by qualified engineers and manufactured by qualified boilermakers, electricians and fitters.



Place of Origin:

Zhejiang, China

Brand Name:

Shuangpeng

Model Number:

QM70T-30M-22M

Certification:

ISO9001:2008

Max. Lifting Load

70t

Span

30

Max. Lifting Height

22

Crane Travelling Speed

6-60m/min

Trolley Travelling Speed

2-30m/min



General Drawing or Sketch or Draft Drawing
Truss Double Girder Gantry Crane for Bridge Construction 0

Truss Double Girder Gantry Crane for Bridge Construction 1
