2 Ton Electric Chain Hoists EHB Type With Overload Limiter

China 2 Ton Electric Chain Hoists EHB Type With Overload Limiter supplier
2 Ton Electric Chain Hoists EHB Type With Overload Limiter supplier 2 Ton Electric Chain Hoists EHB Type With Overload Limiter supplier

Large Image :  2 Ton Electric Chain Hoists EHB Type With Overload Limiter

Product Details:

Place of Origin: Zhejiang, China
Brand Name: Shuangpeng
Certification: ISO9001:2008
Model Number: EHB

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: N/A
Packaging Details: Container packing
Delivery Time: Based on client's needs
Payment Terms: L/C, T/T
Supply Ability: 500000 Sets per Year
Contact Now
Detailed Product Description

2 Ton Electric Chain Hoists EHB Type With Overload Limiter

Lifting capacity

0.5~20ton

Lifting Height

6~18m

Lifting Speed

2.5/10 m/min



NANTE Machinery can supply various famous hoist brands, such as TBM, Kito, HZ hoist etc, with competitive price and professional service.



The Electric Chain Hoist (ECH) series with super rotor brake system and efficient motor was designed for heavy duty industrial applications, which greatly reduce down time and operation costs, and the structure is comperatively small. Nante chain hoists can withstand heavy loads with ease and require little maintenance. Pulling from one side and true vertical lift is allowed under certain conditions.



EHB type are equipped with the latest technology in lifting field today. All models include a low headroom, lightweight body with a high efficiency fan-cooled motor, standard thermal motor protection and a count hour meter for preventive maintenance. To be brief,  the top hoist on the market!



 Whether chain hoist or wire rope hoist, electric or pneumatic; our line of powered hoists are ideal in manufacturing, power generation, and industrial facilities where heavy items are lifted and positioned as part of production or warehousing. Our new model high-capacity wire rope hoist complements our line with capacities up to 50 Tons. We offer a full line of manual hoists, both hand chain and lever tools, which are used primarily for maintenance and construction activities.



Special low headroom hoist and trolley arrangements available to suit tight headroom applications.

Electric trolleys are fitted with Guide Rollers as standard to reduce wear and ensure suitability for curved beam applications.

    ● Capacity range: 0.25 to 20 Ton.

    ● Sealed body suitable for both indoor and outdoor applications.

      (Outdoor use requires certain precautions/conditions)

    ●Super pull rotor brake system

       Without asbestos, pull rotor brake system, column rotor taper braking motor.

    ●High efficient motor with fan cooled

      Reduce the quantity of heat when motor continuum working, postpone the working group.

    ●Low noise driven gear component

      For quiet operation and long working life

    ● Limit switch devices

      Switch off power automatically to prevent the over-winding and excess lifting and falling.

    ●High tensile alloy steel forging hook

      With high strength for extension, shear bending; it can revolve an angle of 360 degrees when loading.

      only distortion, not broken when overloading.

    ●Phase error relay: A specially designed current-post, prevents motor from running at incorrect wire connection.

    ● Overload limiter to prevent dangerous overloading.

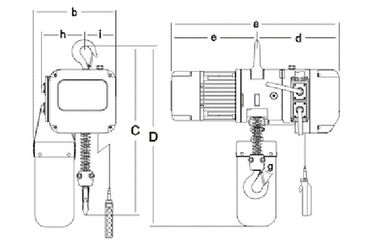

General Drawing or Sketch or Draft Drawing

2 Ton Electric Chain Hoists EHB Type With Overload Limiter

Technical Parameters

MODEL

EHB-025

EHB-050

EHB-100

EHB-200

EHB-250

EHB300

EHB-500

EHB-1000

CAPACITY  (TON)

0.25

0.5

1

2

2.5

3

5

10

STANDARD LIFT  ( M)

3

3

3

3

3

3

3

3

PROOF LOAD  (Kn)

3.12

6.3

12.5

25

31.3

37.5

62.5

125

MOTOR POWER  (KW)

0.85/0.21

0.9/0.3

1.1/0.37

1.1/0.37

3/1

3/1

3/1

2x3/1

GROUP ISO

M6

M5

M5

M4

M5

M4

M4

M4

LOAD CHAIN (mm)

5x15(1)

6.3x19(1)

8x24(1)

8x24(2)

11.2x34(1)

11.2x34(1)

11.2x34(2)

11.2X34(4)

LIFTING SPEED (M/MIN.)

14/3.5

7.6/2.5

5/1.7

2.5/0.85

5.2/1.7

6/2

2.6/0.85

2.6/0.85

DIMENSIONS (MM)

C

490

495

530

590

595

595

860

860

D

610

610

630

780

780

780

870

870

a

592/592

592/632

592/652

592/652

694/720

694/720

694/720

694/720

b

276

276

276

276

430

430

430

430

d

273/273

273/303

273/303

273/303

336/336

336/336

336/336

336/336

e

319/319

319/329

319/349

319/349

358/384

358/384

358/384

358/384

g

31

31

38

45

45

45

61

71

h

142

142

142

185

185

185

240

240

i

102

102

102

165

165

165

110

110

j

415

420

430

482

487

487

665

665

NET WEIGHT  (KG)

36/40

38/42

40/46

50/56

100/110

105/115

120/130

280/300
