Capacity: | 50T | Lifting Height: | 12/15/18m |
---|---|---|---|
Lifting Speed: | 0.4-4m/min | Traveling Speed: | 2-20 M/min |
Work Duty: | M6 | Rail Distance: | 2500/2800/3200 |
High Light: | Electric Hoist Lifting Winch,Electric Hoist crane Winch |
Electric Hoist Lifting Winch 50t Winch Hoist Equipment for Crane
Industrial Usage Electric Winch for Crane

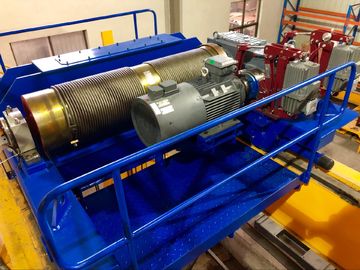

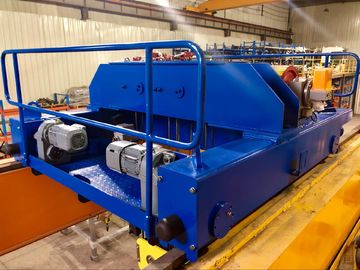

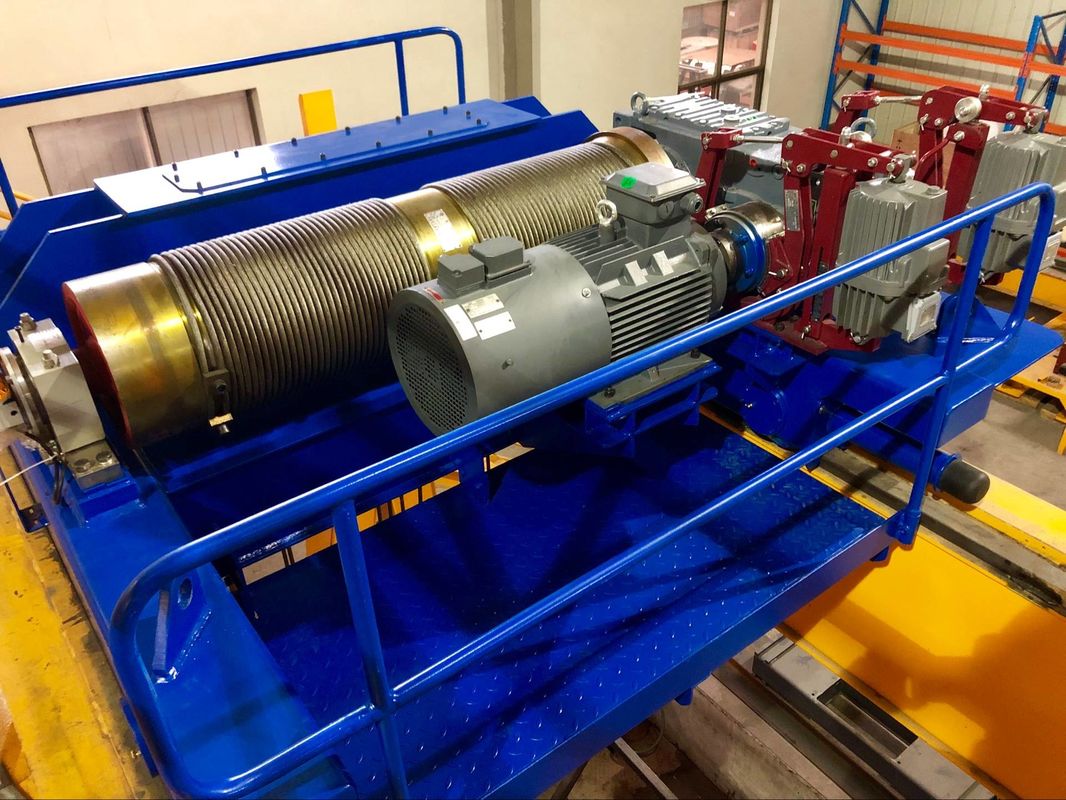

50T Electric Wire Rope Trolley Winch
Electric winch
1. Electric winch for pulling
2. 50Ton electric winch speed: 2-20 m/min, Lifting Power: 37kw, Traveling power: 2.2*2kw,
3. Failsafe brake
4. 3phase voltage
Electric winch capacity 50Ton, wrie rope speed: 2-20 m/min, Lifting Power: 37kw, Traveling power: 2.2*2kw, soft start, wire rope dia 22mm.
Which use wire rope or chain which is install in the drum to lifting up the cargos from the ground. The winch lifting direction can be vertical, horizontal, and oblique pulling.
The winch can be manual winch, electrical winch, and hydraulic winch base on the different power.
The winch can be crane winch, construction winch, tower winch, mining winch etc which is base on the different application. And this session is focus on the crane winch.
Nante manufactures and exports superior quality electric winches for its valuable clients based at several parts of the world. Electric winch is a device consisting of a horizontal cylinder turned back by a crank on which a cable or a rope wind is bound. These are compact and light weight material handling and lifting equipments, suitable for installation on cranes, davits and s.
Electric Winches are widely used in the following applications:
1. Cranes
2. Davits
3. s
4. Marine
5. Punching driver
6. Construction Site and Port
Features:
1. The final drive gears are made of heat treated carbon steel that provides it a great strength.
2. It has an emergency crank handle.
3. Our product is available in AC and DC models also.
4. The front plate is made of stainless steel that provides a great rust resistance.
5. The die formed base of the equipment helps in quick mounting applications.
Advantages:
1. Compact and low head room Design, Light Self-weight
2. Can customized design base on different application and duty group.
3. The Gear box and motor is connected by flange, high transmission efficiency
4. High performance motor, ED can achieve to 60%, and IP class can achieve IP66, and Insulation class can achieve H
5. The motor have heat protection function. and have Encoder for over speed and Synchronization control
6. Can have dual brake design for high duty group and high safety demand.
7. The T series hook is high grade material, compact design, low self-weight, and follow DIN standard.
8. Use high strength wire rope, max. force is 2160N2, galvanized coating and free-lubrication.
9. 2 reeling design, the lifting point always in the centre.
10. The control panel enclosure is IP55, and wiring is base on IEC standard.
11. User inverter control for lifting and cross travel, smooth and low energy consumption.
12. PLC programming is optional.
13. Have a systemic safety device for the winch, like Overload limited switch, double positioning limited switch, cross limited switch, phase protection relay, over-current protection device, etc.
Name | Description |
NW Series (NANTE European Style Winch) |
QD Series (China Old Design Winch) |
Design Criterion | FEM(European Standard) | GB(China Standard) | |
Steel Structure | Material | Q355B(S355J) | Q235B(<=S275J) |
Feature | Compactable and Light Self-Weight | Heavy Weight | |
Rope Drum | Material | Winding Plate (Q355B) | Casting Steel |
Structure | Compact design and small Drum Diameter | Big Drum Diameter | |
Feature | Good dynamic balance | Bad dynamic balance | |
Gear box | Brand | Tailong, Taixing | |
Model | M series | ZQ/ZQD Series | |
Structure | Compact design, low self weight | Very big size and heavy self-weight | |
Gear Type | Hardened face gear | Soft face gear | |
Feature | Design for Heavy duty group | Design for Medium duty group |
