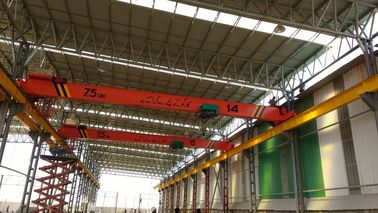

Single Girder Overhead Cranes 7.5ton + 7.5 ton in One Line IP56 Protection
Single girder overhead crane with hoist are widely used in the following applications:
EXTRA HEAVY DUTY Cranes for Long-term operation's factory . Cranes for Outdoor duty also with specific design; MEDIUM DUTY Cranes for general engineering application and Machine shop; HEAVY DUTY Cranes for Vehicle factory, Heavy machine shops, Fabrication shop; LIGHT DUTY Cranes for maintenance, warehouse and assembly operations,paper mills.
Design features include:
DESIGN:
Compact dimensions, low weight, easy to operate and easy to maintain, modular design with direct
fits between components
STRUCTURE:
Bridge Girder, End carriages, Crab Frame manufactured from box plate design / Rolled Sections.
If required 100% radiography of all butt welding joints of bridge and end carriages can be provided.
MOTORS:
Nante Crane uses sturdy cylindrical/ conical rotor pole-changing motors with elegant continuous cast
aluminum sections, integrated safety brakes insulation class F, IP54 protection.
Variable Frequency Drives & Remote Controls:
We also offer Variable Frequency Drive in hoisting, cross travel,long travel for steples speed control
as an optional feature. We also provide radio remote control cranes for application in inaccessible and
hazardous areas.
Brakes
Failsafe magnetic or hydraulic brakes of 150% torque or more are fitted on shaft extensions. For heavy duty cranes a second brake can be mounted to ensure failsafe operation.
Controls
Pendant control from floor, master control switches,master controllers in the driver's cabin can be
provided.Radio remote control can be provided on request.
ELECTRICAL PANEL:
Modular design, covering a very wide operating range. The systems are designed for ease of installation and maintenance and reliable operation, with fuseless circuitry, ducted wiring and non screwed terminals.
PAINTING:
Every component & part is thoroughly scrubbed & painted with two coats of primer before assembly & two coats of synthetic enamel after testing.
LIMIT SWITCHES:
To prevent over hoisting & over lowering of hook.
Technical Parameters
| 7.5T | |||||||
| Span | m | 10.5 | 14 | 17.5 | 21 | 24.5 | |
| Speed | Lifting Speed | m/min | 5/0.8 | ||||
| Trolley Speed | 5.0/20 | ||||||
| Bridge Speed | 8/32 | ||||||
| Motor Power | Lifting Motor | kW | 3.2/0.45 | 3.2/0.45 | 3.2/0.45 | 3.2/0.45 | 3.2/0.45 |
| Trolley Motor | 0.64x1 | 0.64x1 | 0.64x1 | 0.64x1 | 0.64x1 | ||
| Bridge Motor | 0.37x2 | 0.37x2 | 0.37x2 | 0.37x2 | 0.37x2 | ||
| Crane Power | 4.58 | 4.58 | 4.58 | 4.58 | 4.58 | ||
| Basic Data | Max.Wheel Load | KN | 14.7 | 16 | 18 | 20.4 | 24.3 |
| Wheel Dia. | 125 | 125 | 125 | 125 | 125 | ||
| Model of End Carriage | HSE125-15 | HSE125-20 | HSE125-25 | HSE125-30 | HSE125-35 | ||
| Gear Model | SK0282-0.37 | SK0282-0.37 | SK0282-0.37 | SK0282-0.37 | SK0282-0.37 | ||
| Crane Wheel Qty. | Pcs | 4 | 4 | 4 | 4 | 4 | |
| Crane Rail | 30×50 | 30×50 | 30×50 | 30×50 | 30×50 |
||
