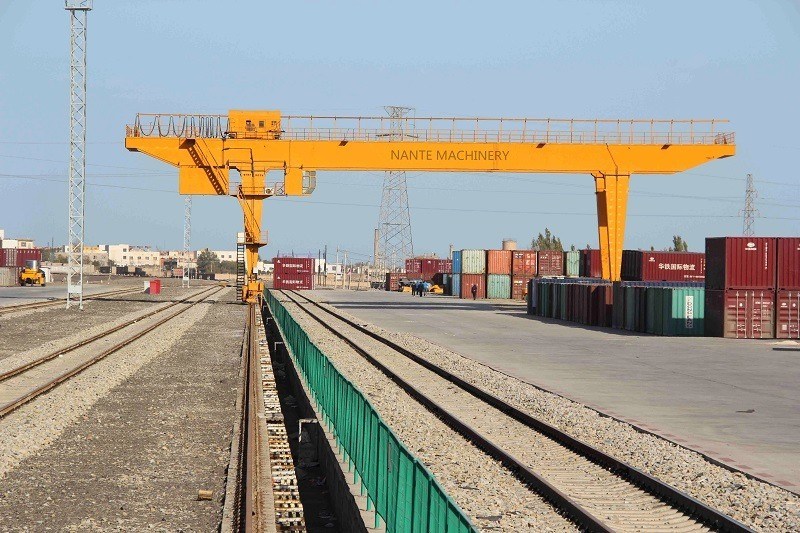

Box Steel Warehouses Construction Girder Gantry Crane

Box Steel Warehouses Construction Girder Gantry Crane

Box Steel Warehouses Construction Girder Gantry Crane
Box Steel Warehouses Construction Girder Gantry Crane Box Steel Warehouses Construction Girder Gantry Crane

Large Image :  Box Steel Warehouses Construction Girder Gantry Crane Get Best Price

Product Details:
Place of Origin: China
Brand Name: NANTE
Certification: ISO
Model Number: Gantry crane
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: USD85000-250000/set
Packaging Details: Naked
Delivery Time: 50 days
Payment Terms: L/C, T/T
Supply Ability: 100set/year
Detailed Product Description
Capacity: 450T Lifting Height: 28m
Span: 38m Driven Type: Electric
Feature: Explosion-Proof Running Mode: Moving
Structure: Bridge Crane Type Of Work: Weight Level
High Light:

double girder gantry crane

,

overhead gantry cranes

Gantry Cranes offer an economical solution to bridge cranes when the building is inadequate to support a bridge crane or the crane system is to be located outdoors. A box girder gantry crane is a gantry crane that utilizes a "box" configuration in fabricating the girder. This box girder design incorporates a four-sided box with a running surface plate for the hoist trolley attached to the bottom of the box. The advantage of the box girder is that it possesses greater loading capabilities and is able to span greater bridge distances. The crane is generally utilized in pairs with the hoisting mechanism operating on rails attached to the top of each box girder.

Gantry/Portal/Goliath cranes are widely used in the following applications:
1. Precast yards
2. Shipbuilding
3. Container Handling
4. Construction sites
5. Marble / Granite Industry
6. Mining Maintenance
7. Bridge Construction sites
8. Road Construction Sites
9. Stock yards
10. Scrap yards
11. Railway yards

Design features include:

1. Main girder:
Is welded of steel plates, connected by high-strength precision bolt. There are sliding rail for trolley to travel upper the girder which is fixed on outrigger by high-tension precision bolt
2. Outrigger
A). Consist of rigid outrigger and flexible outrigger, all connection points are connected by high-tension bolt
B). The ladder is used by operator to enter into cab or arriving at winch
C). When the span>30m, there need a flexible leg aiming at reducing the lateral thrust the trolley has to the rail when the girder load objects.
3. Travelling mechanism

Consist of driving gear box and passive wheel box.
A). The driving gear box supplies power to realize the crane's travelling.
B). What the difference between driving gear box and passive wheel box is that passive wheel box lacks transmission structure such as dynamo, reducer and a pair of exposed gear
4. Trolley with hoist
Is made up of trolley frame, winch and pulley block
A). Trolley frame welded of steel plate is the loading and travelling mechanism of trolley with hoisting
B). Winch is the lifting mechanism of trolley...When it works, wire rope affects the pulley as rising and falling movement, which makes suspended objects lifting and lowering
Warning: Wire ropes need to be examined regularly and changed in time if there is a 10% broken wires, loosen wires and wearing down.

5. Cab
A). Glass window through which one can watch overall working condition is installed in the front and two sides of the cab
B). Electric cabinet as a group of independent cabinet, fixed outside of cab is connected by control cable and linkage station which is set up in the cab
6. Electrical system
A). Lifting motor, crane travelling motor and hydraulic power motor are included. The whole electrical system is controlled by PLC.
B). Two ways to operate the crane: Cab operating and remote controlling.
C). Electric components are imported from Schneider in Germany
7. Platform
Platform is installed in order to maintain the crane, the protective guard is added to protect the safety of servicemen.

Rated Lifting Capacity 450t
Clear Span 32m
Effective Lifting Height 20m
Trolley Traveling Speed 3.5m/min
Lifting Speed 0.72-0.9m/min
Trolley 2*20t
Rate of Pulley block 2*12
Wire Rope Dia. Φ 42mm
Crane Traveling Speed 0-8m/min
Wind Pressure under working 148pa
Lifting Capacity of Auxiliary hook 10t
Total Power 148KW
Total Weight 880t
