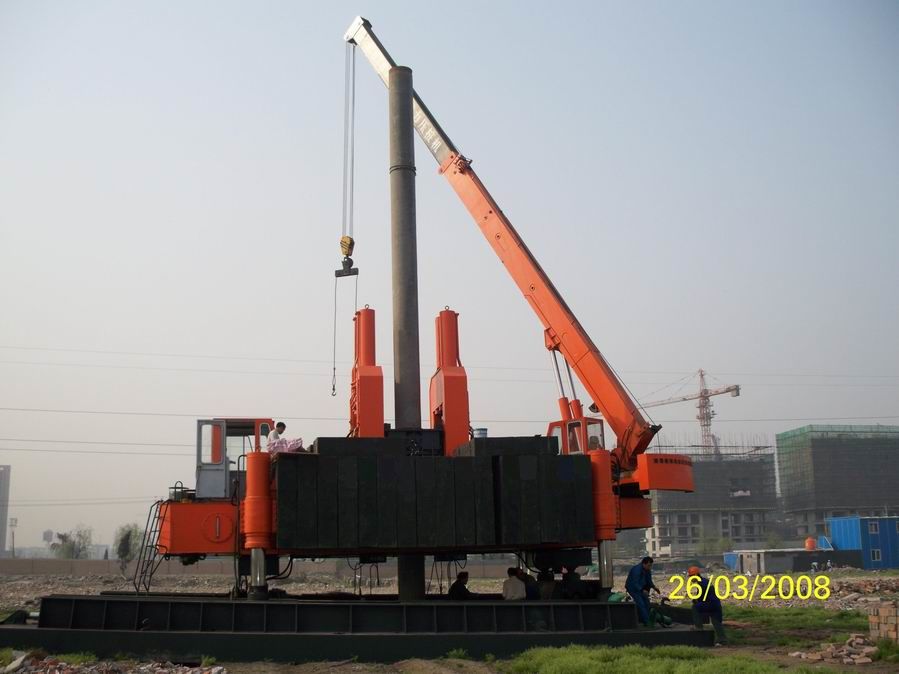

Customized Hydraulic Static Hammer Pile Driver for Construction Site

Customized Hydraulic Static Hammer Pile Driver for Construction Site

Customized Hydraulic Static Hammer Pile Driver for Construction Site
Customized Hydraulic Static Hammer Pile Driver for Construction Site

Large Image :  Customized Hydraulic Static Hammer Pile Driver for Construction Site Get Best Price

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Shuangpeng
Certification: ISO9001:2008
Model Number: ZJ2000
Max. Lifting Load: 5t
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: N/A
Packaging Details: Naked
Delivery Time: Within 2 months
Payment Terms: L/C, T/T
Supply Ability: 400 Sets per Year
Detailed Product Description
High Light:

pile driver machine

,

vibrating pile driver

Customized Hydraulic Static Hammer Pile Driver for Construction Site, Easy for Maintenance:

Clean, No noise, No vibration
No construction wastes
Unique design
4 patents in technology

Hydraulic Static Pile Driver from Realtop

1) ZYC series hydraulic static pile driver, is a kind of eco-friendly foundation equipment, features with no noise, no vibration, no pollution, high piling efficiency, and excellent quality.

2) Clamping and hold one prefabricate concrete pile, H pile or other special steel piles using hydraulic static pressure. Then, press it into the ground base.

3) The piling machine is composed of clamp, pressuring mechanism, piling driving unit, lifting unit, hoisting unit, hydraulic system, and electrical system and so on. It has the functions of piling hoisting, piling driving, traveling and steering.

4) The machine is convenient to pressconcrete spun pile, square pile , H pile , and other precast pile at the site of clay, soil and sand.

5) The technology of our clamp mechanism is unique:

Clamp the pile with balanced pressure from multipoint directions; completely avoid the unbalanced pressure due to the inflexible design of traditional clamp systems, Suitable for the thin-walled piles.

Compared to the traditional clamp systems that uses the wedge to increase the pressure, our clamp mechanism has the function of protection-including no easily damaged parts, which lowers the costs and extends its service life.



Pile Drivers are widely used in the following applications:

1.    Construction Site



General Drawing or Sketch or Draft Drawing

Technical Data

8. Main Technical Parameters

Models

Technical Parameters

ZYC

600

ZYC

800

Rated Piling Pressure (KN)

6000

8000

Piling Speed (m/min)

Max

4.2

3.9

Min

0.8

0.9

Piling Stroke (m)

1.9

1.9

Pace (m)

Longitudinal

3.6

3.6

Horizontal

0.6

0.6

Angle Range (°)

11

11

Rise Stroke (m)

1.1

1.1

Square Pile (mm)

Max

450

500

Min

400

400

Circle Pile (mm)

Max

600

600

Min

400

400

Side Piling Space (mm)

1380

1380

Corner Piling Space (mm)

2800

2800

Lift Weight (t)

16

16

Hanging Pile Length (m)

15

15

Power (kW)

Piling

111

111

Lift

30

30

Dimension (m)

Working Length

13.40

14.00

Working Width

8.04

8.14

Transportation Height

3.15

3.15

Pure weight ( only for the main unit) (t)

156

178

Weight (including the side piling) (t)

166

198

Gross Weight (including balance weight) (t)

600

800
