Feature:: | Bridge Crane | Warranty: | 1 Year |
---|---|---|---|
Control Method: | Electric Operated | Application: | Lifting Goods |
Certification: | ISO9001/CE | Name: | Bridge Crane End Trucks |
High Light: | overhead crane end trucks,bridge crane end trucks |

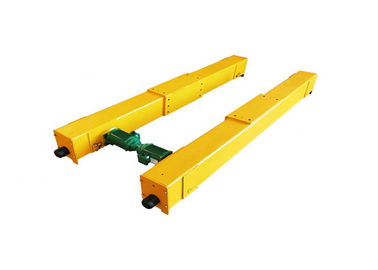

1. END Carriage have compact dimensions, light weight, good stability, triple motor-driven, high mechanical efficiency, installation, use, easy maintenance, low cost, generally as the first choice of customers.

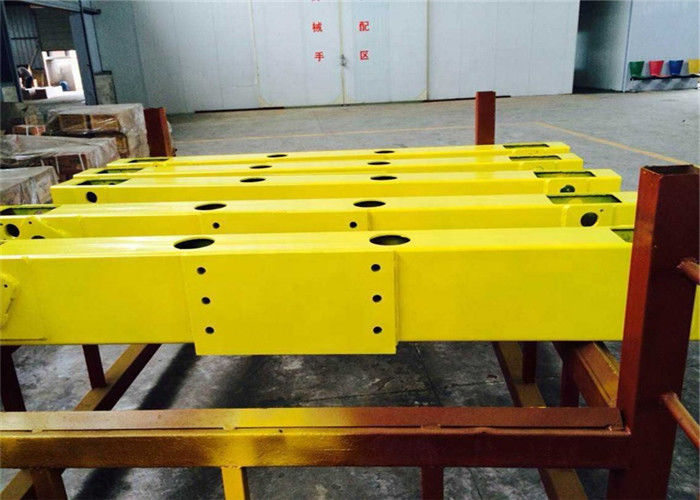

2. END Carriage use rectangular tube modular manufacturing, buffer motor drive, with forged wheels. Use one custom CNC boring and milling machine.Completing opening, boring, milling surface drilling in one time.

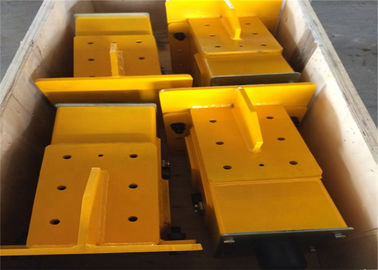

3. END Carriage with two main beam webs, rigid connection with the main beam. When calibration crane, placed on the main beam webs, after adjustment good crane span, the main beam can be completed securely connecting plate welding. Main beam can be calibrated separately with end carriage transport, installation, just the main beam webs and end beams are bolted to complete the installation.
4. Every END Carriage run institutions have two wheels mounted at both ends of end carriage. One of only Active Wheel, including gear, used in conjunction with a motor output gear. The other was driven wheels.
SPECIFICATIONS FOR ELECTRIC CRANE USING END CARRIAGE
|
Model
|
Crane
|
Rectangular
Steel tube |
Wheel size
|
Motor power
(20m/min) |
Motor power
(30m/min) |
EUD90-20
|
1.6t-11.5m
|
150*150*6
|
U90*60
|
FA27-0.25KW
|
FA27-0.37KW
|
EUD90-25
|
1.6t-16.5m
|
||||
EUD125-25
|
3.2t-11.5m
|
150*200*8
|
U125*60
|
FA37-0.55KW
|
FA37-0.75KW
|
EUD125-30
|
3.2t-16.5m
|
||||
EUD125-35
|
3.2t-22.5m
|
||||
EUD125-40
|
3.2t-28.5m
|
||||
EUD160-25
|
6.3t-11.5m
|
150*250*8
|
U160*70
|
FA47-0.75KW
|
FA47-1.1KW
|
EUD160-30
|
6.3t-16.5m
|
||||
EUD160-35
|
6.3t-22.5m
|
||||
EUD160-40
|
6.3t-28.5m
|
||||
EUD200-25
|
12.5t-11.5m
|
200*250*8
|
U200*70
|
FA57-1.1KW
|
FA57-1.5KW
|
EUD200-30
|
12.5t-16.5m
|
||||
EUD200-35
|
12.5t-22.5m
|
||||
EUD200-40
|
12.5t-28.5m
|
||||
EUD250-35A
|
16t-16.5m
|
200*300*8
|
U250*80
|
FA67-1.5KW
|
FA67-2.2KW
|
EUD250-40A
|
16t-22.5m
|
||||
EUD250-45A
|
16t-28.5m
|
||||
EUD250-35B
|
20t-16.5m
|
200*400*8
|
U250*80
|
FA77-2.2KW
|
FA77-3KW
|
EUD250-40B
|
20t-22.5m
|
||||
EUD250-45B
|
20t-28.5m
|
||||
EUD315-35
|
32t-16.5m
|
200*400*10
|
U315*90
|
FA87-4KW
|
FA87-5.5KW
|
EUD315-40
|
32t-22.5m
|
||||
EUD315-45
|
32t-28.5m
|
