| Color: | Red | END CARRIAGE: | HSE125-15 |
|---|---|---|---|
| Motor Brand: | Nord | Lifting Height: | 6m |
| Capacity: | 3T | Brand: | Nante |
| High Light: | manual overhead crane,overhead electric cranes,single girder electric overhead travelling crane |
||

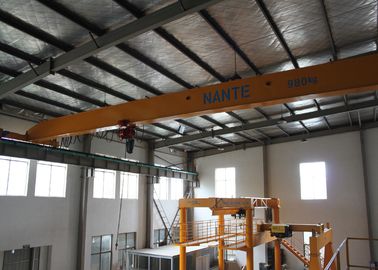

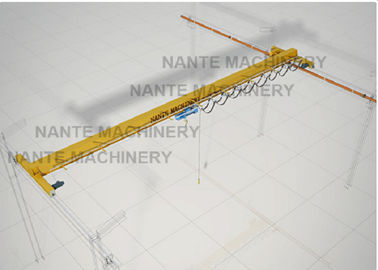

Electric Single Girder Overhead Bridge Cranes Traveling Type LDX3t-18m
Single girder Electric Hoist Travelling Bridge crane systems provide solution for materials handling even when production units or warehouses are comparatively small and low.To minimize the capital costs for buildings modifications toprovide extra space, we utilize the minimum of space for our crane systems.
Using various fixing arrangements the single girder travelling cranes can be fitted individually to the existing space available.Favorable dimensions result in the optimal highest hook position.
This makes it a master at saving space even in buildings with unfavorable dimensions. The crane girder is constructed from robust profiles. Using a comprehensive range of fixing arrangements the travelling cranes can be designed to fit the available space. All we need for the planning stage of the crane system are the clear dimensions of the building. We will then design the crane individually for you.
DESIGN:
Compact dimensions, low weight, easy to operate and easy to maintain, modular design with direct fits between components
Structure:
Bridge Girder, End carriages, Crab Frame manufactured from box plate design / Rolled Sections. If required 100% radiography of all butt welding joints of bridge and end carriages can be provided.
MOTORS:
Nante Crane uses sturdy cylindrical/ conical rotor pole-changing motors with elegant continuous cast aluminum sections, integrated safety brakes insulation class F, IP54 protection.
CONTROLS:
Pendant control from floor, master control switches, master controllers in the driver's cabin can be provided. Radio remote control can be provided on request.
ELECTRICAL PANEL:
Modular design, covering a very wide operating range. The systems are designed for ease of installation and maintenance and reliable operation, with fuseless circuitry, ducted wiring and non-screwed terminals. Each drive group is equipped with a motor overload protection device to provide effective protection against inadmissible overloading.
PAINTING:
Every component & part is thoroughly scrubbed & painted with two coats of primer before assembly & two coats of synthetic enamel after testing.
Technical Parameters
| 3.2T | |||||||
| Span | m | 10.5 | 14 | 17.5 | 21 | 24.5 | |
| Speed | Lifting Speed | m/min | 5/0.8 | ||||
| Trolley Speed | 5.0/20 | ||||||
| Bridge Speed | 8/32 | ||||||
| Motor Power | Lifting Motor | kW | 3.2/0.45 | 3.2/0.45 | 3.2/0.45 | 3.2/0.45 | 3.2/0.45 |
| Trolley Motor | 0.64x1 | 0.64x1 | 0.64x1 | 0.64x1 | 0.64x1 | ||
| Bridge Motor | 0.37x2 | 0.37x2 | 0.37x2 | 0.55x2 | 0.55x2 | ||
| Crane Power | 4.58 | 4.58 | 4.58 | 4.94 | 4.94 | ||
| Basic Data | Max.Wheel Load | KN | 20.8 | 22.8 | 24.8 | 27.3 | 31.4 |
| Wheel Dia. | 125 | 125 | 125 | 125 | 125 | ||
| Model of End Carriage | HSE125-15 | HSE125-20 | HSE125-25 | HSE125-30 | HSE125-35 | ||
| Gear Model | SK0282-0.37 | SK0282-0.37 | SK0282-0.37 | SK0282-0.55 | SK0282-0.55 | ||
| Crane Wheel Qty. | Pcs | 4 | 4 | 4 | 4 | 4 | |
| Crane Rail | 30×50 | 30×50 | 30×50 | 30×50 | 30×50 | ||
Single girder overhead industrial crane with hoist are widely used in the following applications:
1. LIGHT DUTY Cranes for maintenance, warehouse and assembly operations.
2. MEDIUM DUTY Cranes for general engineering application and Machine shop.
3. HEAVY DUTY Cranes for Heavy machine shops, paper mills, Fabrication shop, etc.
4. EXTRA HEAVY DUTY Cranes for continuous operation in Steel mills and other Heavy Engineering purpose. Cranes for Outdoor duty is also designed specially.
