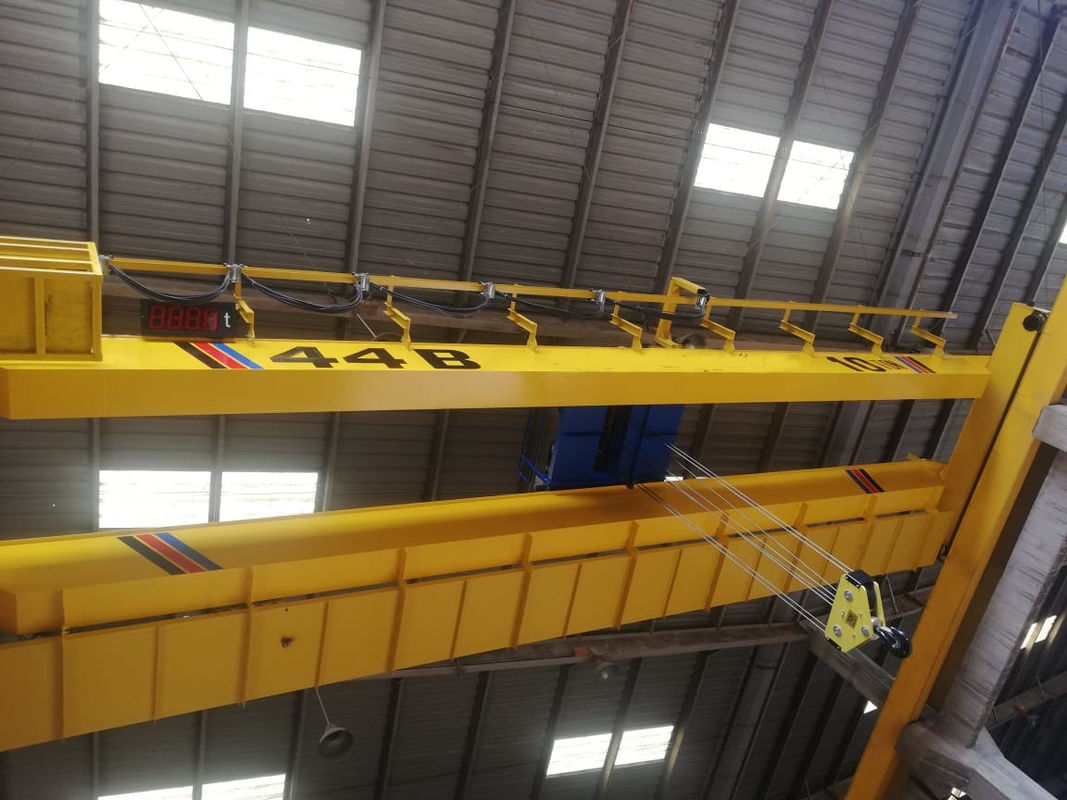

Long Travel Winch Overhead Crane Double Girder

Long Travel Winch Overhead Crane Double Girder

Long Travel Winch Overhead Crane Double Girder
Long Travel Winch Overhead Crane Double Girder

Large Image :  Long Travel Winch Overhead Crane Double Girder Get Best Price

Product Details:
Place of Origin: Zhejiang, China
Brand Name: NANTE
Certification: ISO9001
Model Number: LH10t-12m
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: N/A
Packaging Details: Naked
Delivery Time: Within 2 months
Payment Terms: L/C, T/T
Detailed Product Description
Max. Lifting Load: 10T Span: 12m
Brand Name: NANTE Lifting Height H: 12m
Place Of Origin: China Certification:: ISO9001:2008
High Light:

crane double girder

,

double girder bridge crane

,

materials handling single girder overhead crane

Long Travel Single Girder Overhead Cranes with Customized Design Winch



European type Single girder electric winch overhead bridge crane cranes provide solution for materials handling even when production units or warehouses are comparatively small and low.
To minimize the capital costs for buildings modifications to provide extra space, we utilize the minimum of space for our crane systems.
Using various fixing arrangements the single girder travelling cranes can be fitted individually to the existing space available. Favorable dimensions result in the optimal highest hook position.



Technical Parameters
1. Capacity: 10T

2. Span: 10.5-24.5m

3. Lifting speed: 5/0.8 m/min

4. Trolley Speed: 5/20 m/min

5. Bridge Speed: 8/32 m/min

6. Lifting Motor: 9.5/1.5 kw

7. Trolley Motor: 0.96x1 kw

8. Bridge Motor: 0.75x2 - 1.1x2 kw

9. Crane Power: 11.96 - 12.66 kw

Basic Data Max.Wheel Load KN 58.7 61.4 64.7 68.6 74.5
Wheel Dia.   200 200 200 250 250
Model of End Carriage   HSE200-15 HSE200-20 HSE200-25 HSE250-30 HSE250-35
Gear Model   SK2282-0.75 SK2282-1.1 SK2282-1.1 SK2282-1.1 SK2282-1.1
Crane Wheel Qty. Pcs 4 4 4 4 4
Crane Rail   40×60 40×60 40×60 40×70 40×70



STRUCTURE:
Bridge Girder, End carriages, Crab Frame manufactured from box plate design / Rolled Sections. If required 100% radiography of all butt welding joints of bridge and end carriages can be provided.

MOTORS:
Nante Crane uses sturdy cylindrical/ conical rotor pole-changing motors with elegant continuous cast aluminum sections, integrated safety brakes insulation class F, IP54 protection.

Variable Frequency Drives & Remote Controls:
We also offer Variable Frequency Drive in hoisting, cross travel, long travel for stepless speed control as an optional feature. We also provide radio remote control cranes for application in inaccessible and hazardous areas.

BRAKES:
Failsafe magnetic or hydraulic brakes of 150% torque or more are fitted on shaft extensions. For heavy duty cranes a second brake can be mounted to ensure failsafe operation.

CONTROLS:
Pendant control from floor, master control switches, master controllers in the driver's cabin can be provided. Radio remote control can be provided on request.
