Product Details:
Payment & Shipping Terms:
|
| Brand: | NANTE | Modle: | NSP |
|---|---|---|---|
| Certificate: | ISO9001:2008 | Material: | Copper/ Aluminium |
| Current: | 150-1250A | Max. Voltage: | 660V |
| Highlight: | bridge crane kits,parts of an overhead crane |
||
Standard application data
Nominal Current (at 100% duty cycle) [A]: 100
Nom. Voltage [V]: 600
Rail Length [mm]: 6.000 or 4, 000
Outside-Dimensions (Pol) [mm]: 12, 0 X 18, 0
Operating Conditions: For indoor and weather protected outdoor applications
Track Configuration: Straight / easy onside adaptation to course layout
Mechanical properties:
Flexible strength: 75N/mm2± 10%
Tensile strength: 40N/mm2± 10%
Temperature range:
Common Housing: -30oC up to +60oC
BAYBLEND Housing: -20oC up to +115oC
Resistance to chemicals: +45oC
Gasoline: Sulphuric acid 50%
Mineral Oil: Caustic soda 25% & 50%
Grease: Hydro-chloric acid, concentrated.
Special features
Fast mounting with plug and screw connector solution
Compact design for multiple poles on limited space (Phase distance 14 or 12 mm)
Easy mounting and flexible combination with 4, 6, 8 or 10 poles clamp in rail holder
Rail holder for all common EMS rail systems available
Flexible on side rail adaptation (bending device)
Power feed option on each connector or endcapposition possible
Main applications
EMS Eleotro monorail systems
Stretcher / Packing equipment
Amusements rights
Ring application or slip rings
Stage equipment
Technical Data:
| Type | Conductor material | Cross section(mm²) | Nominal current (A) | Leakage-distance (mm) | Resistance | Dimensions (H * W) | Weight(kg) |
| H19 | Aluminum | 100 | 150 | 35 or 80 | 0.376 | 25*19 | 0.46 |
| H24 | Aluminum | 160 | 250 | 45 or 80 | 0.203 | 32*24 | 0.63 |
| H24 | Aluminum | 180 | 300 | 45 or 80 | 0.187 | 32*24 | 0.71 |
| H32 | Aluminum | 230 | 320 | 80 | 0.153 | 42*32 | 0.96 |
| H32 | Aluminum | 285 | 500 | 80 | 0.116 | 42*32 | 1.13 |
| H32 | Aluminum | 360 | 630 | 80 | 0.087 | 42*32 | 1.38 |
| H32 | Aluminum | 450 | 800 | 80 | 0.067 | 42*32 | 1.5 |
| H32 | Aluminum | 550 | 1000 | 80 | 0.058 | 42*32 | 1.83 |
| H32 | Aluminum | 600 | 1250 | 80 | 0.046 | 42*32 | 2.01 |

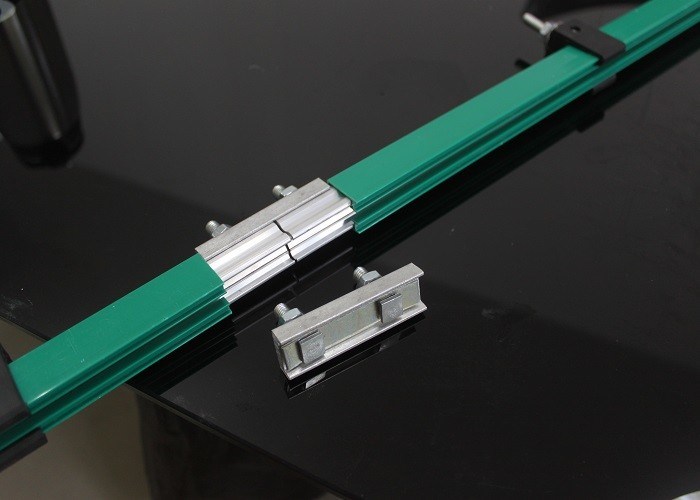

Products Display:
