QD20t-22m Double Girder Overhead Cranes Travelling with Sturdy Cylindrical Motors

QD20t-22m Double Girder Overhead Cranes Travelling with Sturdy Cylindrical Motors

QD20t-22m Double Girder Overhead Cranes Travelling with Sturdy Cylindrical Motors
QD20t-22m Double Girder Overhead Cranes Travelling with Sturdy Cylindrical Motors QD20t-22m Double Girder Overhead Cranes Travelling with Sturdy Cylindrical Motors QD20t-22m Double Girder Overhead Cranes Travelling with Sturdy Cylindrical Motors

Large Image :  QD20t-22m Double Girder Overhead Cranes Travelling with Sturdy Cylindrical Motors Get Best Price

Product Details:
Place of Origin: Zhejiang, China
Brand Name: NANTE
Certification: CE,ISO
Model Number: QD20t-22m
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: N/A
Packaging Details: Naked
Delivery Time: Within 2 months
Payment Terms: L/C, T/T
Detailed Product Description
Place Of Origin: Zhejiang, China Brand Name: NANTE
Model Number: QD20t-22m Certification: ISO9001:2008
Max. Lifting Load: 20t Span: 22.5m
Highlight:

overhead electric cranes

,

design overhead crane

,

CE double girder electric overhead cranes

QD20t-22m Double Girder Electric Overhead Cranes Travelling with Sturdy Cylindrical Motors



QD20t-22m Double Girder Overhead Cranes Travelling with Sturdy Cylindrical Motors 0



Capacity(t) 5 10 16/3.2 20/;5
Control Type pendent control+remote control pendent control+remote control pendent control+remote control pendent control+remote control
Long Travel Speed(m/min) 18 18 18 18
Crane Travel Mechanism Power(KW) 0.4x2 0.75x2 0.75x2 1.1x2 1.1x2 1.5x2 1.5x2
Motor Speed(r/min) 176 189 189 112 112 92 92
Lifting Mechanism Hoist Type SH6-2/1A SH6-4/1A SH7-4/1A;SH5-2/1A SH8-4/1A;SH6-2/1A
Liting Speed 7.6;(7.6/1.8) 7.6;(7.6/1.6) 7.6;(7.6/1.8)/ 7;(7/1.6) 8;(8/2)/ 7.6;(7.6/1.8)
Travel LengthH(M) 6; 9; 12; 18;24; 30 6; 9; 12; 18;24; 30 6; 9; 12; 18;24; 30 6; 9; 12; 18;24; 30
Travel Speed(m/min) 18 18 18 18
Motor Type Tapered Suquirrel Cage Tapered Suquirrel Cage Tapered Suquirrel Cage Tapered Suquirrel Cage
Working Duty A3-A5 A3-A5 A3-A5 A3-A5
Power Supply 3P 380V 50HZ 3P 380V 50HZ 3P 380V 50HZ 3P 380V 50HZ
Wheel Dia.(mm) Ø200 Ø240 Ø268 Ø300
Recommended Rail(kg/m) P24 P24; P38 P38; P43 P38; P43
Basic Size A(mm) 110 110 110 110
B(mm) 3800 4870 5370 3800 4870 5370 3800 4900 5500 4900 5500
C(mm) 1100 1100 1900 1900
H1(mm) 1210 1300 1275 1370 1450 1620
K(mm) 3200 4000 4500 3200 4000 4500 3200 4000 4600 4000 4600
L1(mm) 1110 1110 1050 1500
L2(mm) 1240 1240 1285 1500
L3(mm) 120 200 120 200 120 230 230
W(mm) 1200/1400 1600/1800 1400/1700/2000/2600 1550/1850/2150/2750
h1(mm) 100 40 338 267 338 267 65

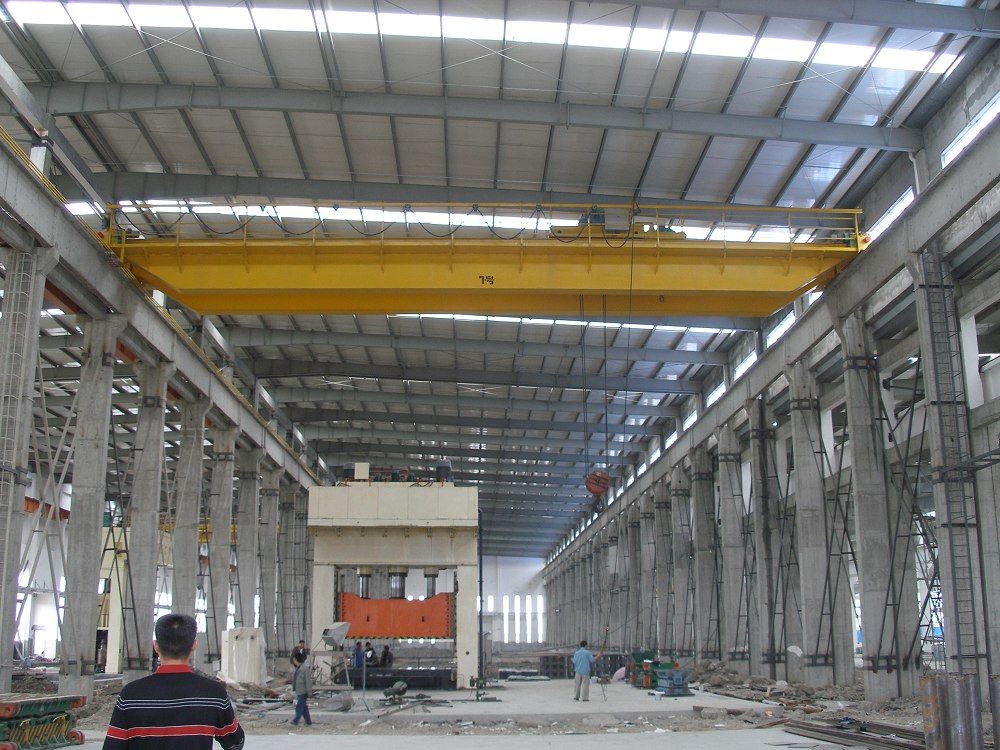

This is QD20t-20m Doulbe Girder Overehad Bridge Cranes with Sturday Cylindrical Mortor. When heavy loads and wide duty are required, the electric double beam electric overhead travelling cranes for workshop show their strength. They consist of two torsion-free box girders. This makes them especially suitable for lifting and transporting heavy loads.



Double girder overhead crane is characterized by strong bearing, big span, and overall stability with various models, but their quality is better compared with single girder gantry crane with the same capacity.They are available with load capacities up to 50T and with spans up to 35 m. Articulated end carriage joints ensure positive contact of all four wheels with the track. The range of fixing arrangements allows the appropriate integration of double girder travelling cranes into new buildings as well as into existing buildings. Just as with all other types of double girder travelling cranes, the profiles of the main girder are optimally produced using computers so that maximum performance with a minimum of dead-weight can be achieved. An advantage that has financial benefits.



Double girder overhead industrial crane with hoist are widely used in the following applications:

1. Light duty cranes for repair shops, light assembly operations, service buildings, light warehouses, where service requirements are infrequent.

2. Medium duty cranes for machine shops and general industrial use both indoor and outdoor application.

3. Extra heavy duty cranes for steel mills and other heavy machine shops, steel warehouses, heavy fabrication

shops, paper mills etc. with magnet and bucket operation for scrap yards, fertilizer plants & induction furnace.

4. Extra heavy duty cranes for steel mills and other heavy engineering purposes. Cranes designed for hot metal

application on request.Design features include:

DESIGN:

Compact dimensions, low weight, easy to operate and easy to maintain, modular design with direct fits between components

Structure:

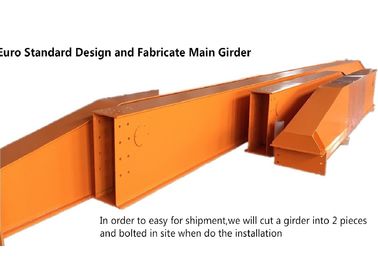

Bridge Girder, End carriages, Crab Frame manufactured from box plate design / Rolled Sections. If required 100% radiography of all butt welding joints of bridge and end carriages can be provided.

MOTORS:

Nante Crane uses sturdy cylindrical / conical rotor pole-changing motors with elegant continuous cast aluminum sections, integrated safety brakes insulation class F, IP54 protection.

Variable Frequency Drives & Remote Controls:

We also offer Variable Frequency Drive in hoisting, cross travel, long travel for stepless speed control as an optional feature. We also provide radio remote control cranes for application in inaccessible and hazardous areas.

Brakes

Failsafe magnetic or hydraulic brakes of 150% torque or more are fitted on shaft extensions. For heavy duty cranes a second brake can be mounted to ensure failsafe operation.

Controls

Pendant control from floor, master control switches, master controllers in the driver's cabin can be provided. Radio remote control can be provided on request.

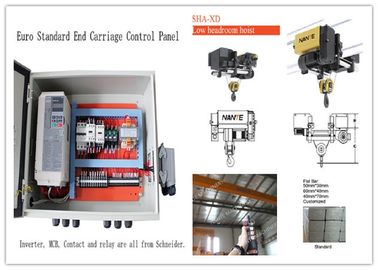

ELECTRICAL PANEL:

Modular design, covering a very wide operating range. The systems are designed for ease of installation and maintenance and reliable operation, with fuseless circuitry, ducted wiring and non-screwed terminals. Each drive group is equipped with a motor overload protection device to provide effective protection against inadmissible overloading.

PAINTING:

Every component & part is thoroughly scrubbed & painted with two coats of primer before assembly & two coats of synthetic enamel after testing.

LIMIT SWITCHES:

To prevent over hoisting & over lowering of hook.

General Drawing or Sketch or Draft Drawing



Technical Parameters

QD20t-22m Double Girder Overhead Cranes Travelling with Sturdy Cylindrical Motors 1
