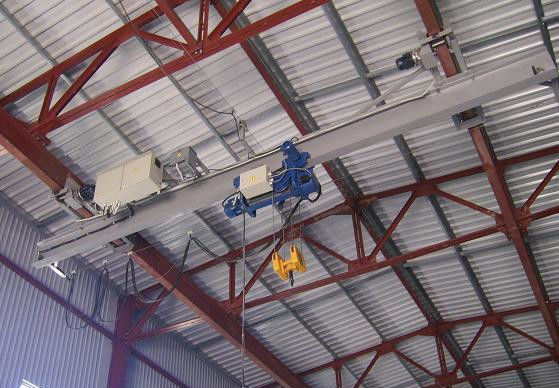

Underhung Single Girder Gantry Crane Capactiy 5 Ton Span 8m Lifting Height 12m

Underhung Single Girder Gantry Crane Capactiy 5 Ton Span 8m Lifting Height 12m

Underhung Single Girder Gantry Crane Capactiy 5 Ton Span 8m Lifting Height 12m
Underhung Single Girder Gantry Crane Capactiy 5 Ton Span 8m Lifting Height 12m

Large Image :  Underhung Single Girder Gantry Crane Capactiy 5 Ton Span 8m Lifting Height 12m Get Best Price

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Nante
Certification: ISO9001:2008
Model Number: Underhung SG5T-12M
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: N/A
Packaging Details: Naked
Delivery Time: Within 2 months
Payment Terms: L/C, T/T
Detailed Product Description
Material: Q235B Protection: IP56
Capacity: 5t Span: 8m
Lifting Height: 12m Type: Underhung End Carriage
High Light:

design overhead crane

,

overhead electric cranes

,

5 ton single girder gantry crane



Underhung Single Girder Overhead Crane Ae Approved Capactiy 5 Ton Span 8m Lifting Height 12m



Underhung cranes:
As the market leader in the design and supply of underhung cranes, we have supplied many single and double girder underhung crane and top running cranes for our foreign honored clients.
Underhung crane system is ideal for lifting and moving products along a fixed path, servicing individual and/or banks of machines and carrying product to work centers.



Technical Parameter for LDA Signle Girder Overhead Crane
Capacity(t) 1 2
Control Type Pendent Control Canbin Control Pendent Control
Long Travel Speed(m/min) 20 30 45 45 60 75 20 30 45
Crane Travel Mechanism Gear Ratio 58.78 39.38 26.36 26.36 19.37 15.61 58.78 39.38 26.36
Motor Type ZDY21-4 ZDR12-4 ZDY21-4
Power (KW) 2*0.8 2*1.5 2*0.8
Motor Speed(r/min) 1380 1380
Hoist Type CDI Type MDI Type CDI Type
Lifting Mechanism Lifting Spped(m/min) 8 8/0.8 8
Travel Length(m) 6 9 12 18 24 30 6 9 12 18 24 30
Travel Speed(m/min) 20,30 20,30
Motor Type Tapered Squirrel Cage Tapered Squirrel Cage
Working Duty A3-A5 A3-A5
Power Supply 3P AC 50HZ 380V 3P AC 50HZ 380V
Wheel Dia.(mm) 220 270
Recommended Rail(kg/m) 18,24 18,24
Span(m) 7.5-11 11.5-12 12.5-14 14.5-17 19.5 22.5 7.5-11 11.5-12 12.5-14
Total Weight Pendent Control 1.65-2.06 1.65-2.06 2.15-2.29 2.42-2.67 3 3.41 1.78-2.10 2.21-2.26 2.35-2.50
Canbin Control 2.05-2.46 2.05-2.46 2.55-2.69 2.82-3.07 3.4 3.81 2.18-2.50 2.61-2.66 2.75-2.90
Wheel Load Pendent Control 1.08-1.18 1.08-1.18 1.21-1.25 1.28-1.35 1.44 1.56 1.64-1.72 1.75-1.76 1.79-1.83
Canbin Control 1.38-1.48 1.38-1.48 1.5-1.55 1.58-1.65 1.74 1.86 1.94-2.02 2.05-2.06 2.09-2.13



Single girder overhead crane with hoist are widely used in the following applications:

1. LIGHT DUTY Cranes for maintenance,  warehouse and assembly operations.

2. MEDIUM DUTY Cranes for general engineering application and Machine shop.

3. HEAVY DUTY Cranes for Heavy machine shops,  paper mills,  Fabrication shop,  etc.

4. EXTRA HEAVY DUTY Cranes for continuous operation in Steel mills and other Heavy Engineering  purpose. Cranes for Outdoor duty is also designed specially.

Design features include:

DESIGN:

Compact dimensions,low weight,easy to operate and easy to maintain,modular design with direct fits  between components

STRUCTURE:

Bridge Girder, End carriages,Crab Frame manufactured from box plate design / Rolled Sections. If  required 100% radiography of all butt welding joints of bridge and end carriages can be provided.

MOTORS:

Nante Crane uses sturdy cylindrical/ conical rotor pole-changing motors with elegant continuous cast  aluminum sections,integrated safety brakes insulation class F, IP54 protection.

Variable Frequency Drives & Remote Controls:

We also offer Variable Frequency Drive in hoisting,  cross travel,  long travel for stepless speed control as an optional feature. We also provide radio remote control  cranes for application in inaccessible and hazardous areas.

Brakes –

Failsafe magnetic or hydraulic brakes of 150% torque or more are fitted on shaft extensions. For heavy  duty cranes a second brake can be mounted to ensure failsafe operation.

Controls –

Pendant control from floor,  master control switches,  master controllers in the driver's cabin can be provided. Radio remote control can be provided on request.

ELECTRICAL PANEL:

Modular design,covering a very wide operating range. The systems are designed for ease of installation  and maintenance and reliable operation,  with fuseless circuitry,  ducted wiring and non-screwed terminals. Each drive group is equipped with a motor overload protection  device to provide effective protection against inadmissible overloading.

PAINTING:

Every component & part is thoroughly scrubbed & painted with two coats of primer before assembly & two  coats of synthetic enamel after testing.

LIMIT SWITCHES:

To prevent over hoisting & over lowering of hook.
