Condition: | New | Capacity: | 5T |
---|---|---|---|
Work Duty: | M5 | Lifting Height: | 6-18m |
Power Source: | Electric | Sling Type: | Wire Rope |
Lifting Speed: | 5/0.8 M/min | Lifting Power: | 6.1/1 Kw |
High Light: | ultra low headroom hoist,low headroom hoist and trolley,electric lifting overhead crane hoist |

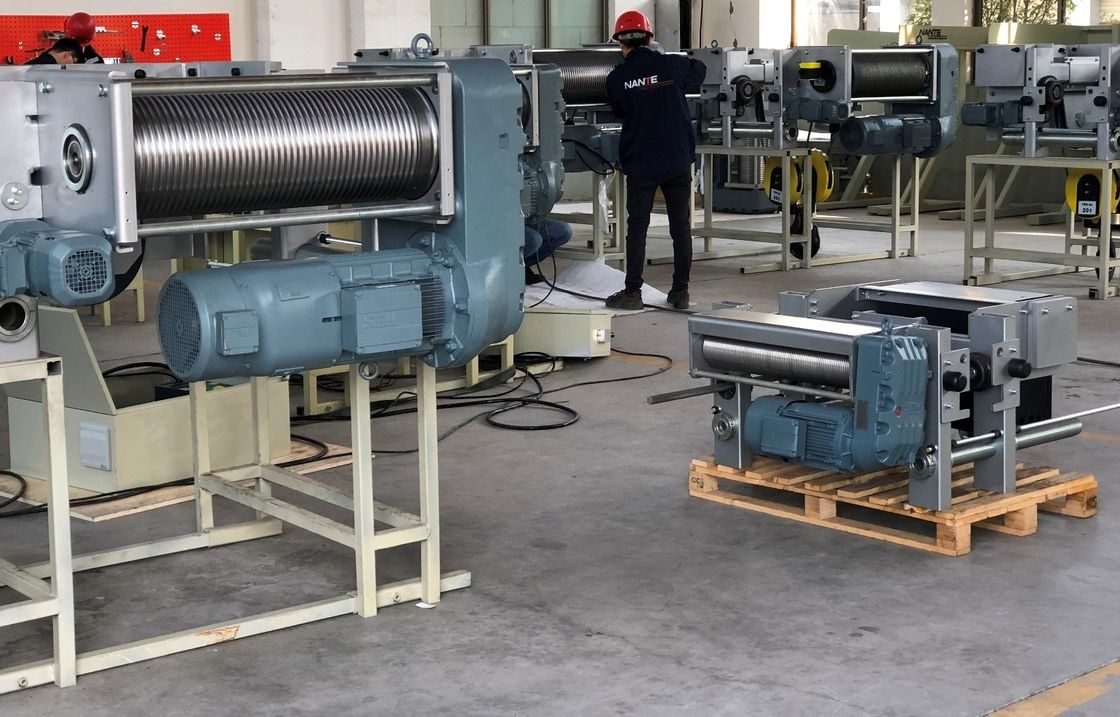

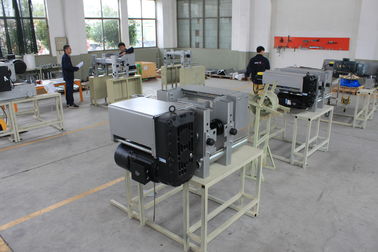

5ton European Designed Wire Rope Electric Lifting Overhead Crane Hoist
Lifting Gear Motor
Compact design, smooth operation and low noise level.
Three-in-one system integrated by pole-changing professional hoisting motor, Different gear ratio makes more options for different lifting speed.
Low energy consumption motor
High performance and stable brake with electromagneticdisk type.
IP55(IP56,IP66 is options),
Class F(Class H is options) .
Rope Drum
Made of seamless tube, CNC machined with precision of concentricity.
Advanced processing methods ensure concentricity of the reels.
The depth of rope groove complies with the FEM standard.
High-strength lock plates are fastened on drum to hold the wire rope ensuring the safety of lifting.
Wire Rope
Top brand wire rope, adopt high-performance and high-trength wire rope with zinc surfacing-plating,
effectively prevent corrosion. high breakingforce and good flexibility.
Advantages:
1. Low headroom design, compact, strong, long service life span, save your space.
2. Three-in-one lifting motor: AMB Germany original imported. Column rotor, low noise.
3. Limit Switch: Cam limit model operate safety.
4. With load limiter protection.
5. Remote control avaliable.
New advantages:
1. Improved travelling motor: Lower noise, more effciency
2. Improved wire rope guider: Improved to engineering plastic material, lighter, less wear to wire rope
1. Reducer
Third-class dead axel helica gear transmission structure is adopted,; gear and gear axel are made of heat treated alloy steel.
2. Control Box
It has device with up an down stroke protection of break off limiter and can cut off main circuit in an emergency,which ensures safe operation of electric block.Electric elements are of long service life and operational safety.
3. Steel Wire Rope
It uses GB1102-74(6*37+1) hoist steel wire rope which is durable in use.
4. Conical Motor
The hoist motor uses conical motors of relatively stronger starting torque to brake asynchronous motor and does not need extra arrester. The motor s load duration factor is 25%.
5. Button Switch
Its hand-operated, easy to handle,and has two modes of cord operation and cordless remote control
6. Gear
By adopting Japanese technology, they are innovated symmetrical arrayed high-speed synchronous gears, and are made from international standard gear steel.
7. Chain
Adopts high strength chain and high precision welding technology,meet ISO3077-1984 international standard;fits for gusty overload work conditions;takes your hands a better feeling multi-angle operation.
8. Hook
Made of high-class alloy steel,it has high strength and high security; by using new design, weight will never escape.
Description of configuration:
1. Power 380V-50HZ-3P control voltage:48V
2. Lifting reducer and Motor
3. Electrical Unit: Schneider
4. Wire rope: high strength wire rope with zinc surfacing
5. Traveling Gear Motor: motor, controlled by Yaskawa/Schneider inverter
Application
Used in the factory, mine, dock, warehouse, temperature-20 ~ + 40 °C, relative humidity under 85%.
Design Feature
(1) imported motor can be chosen for high working level up to M5, low noise
(2) applies to factories, freight yards, terminals, power plants, construction sites and other places
(3) Particularly suitable for the plant with restrict height, maximize the effective lifting height
Detailed Product Description
Low Headroom Electric Wire Rope Hoist is the newly developed type which is specific to the box type beam but not the traditional I beam. You can benefit from shock absorption and noise reduction. What's more, the distance for the gauge can be adjusted. This products, by its newly unique design and great originality, have gained a good reputation among users in China and abroad.
Technical Data
Capacity (t) |
Lifting Height (m) |
Lifting Speed (m/min) |
Lifting Power (KW) |
Travel Speed (m/min) |
Travel Power (KW) |
Work Duty - Lifting FEM/ISO |
H (mm) |
C (mm) |
Rail Gauge B(mm) |
|
2 | 6/9/12/15/18 | 5/0.8 | 3.3/0.5 | 5/20 | 0.37 | 3M | M6 | 210 | 556 | 150-300 |
3.2 | 6/9/12/15/18 | 5/0.8 | 3.3/0.5 | 5/20 | 0.37 | 2M | M5 | 210 | 556 | 150-300 |
5 | 6/9/12/15/18 | 5/0.8 | 6.1/1 | 5/20 | 0.37 | 2M | M5 | 260 | 596 | 200-350 |
6.3 | 6/9/12/15/18 | 5/0.8 | 6.1/1 | 5/20 | 0.37 | 1Am | M4 | 260 | 596 | 200-350 |
8 | 6/9/12/15/18 | 5/0.8 | 9.5/1.5 | 5/20 | 0.55 | 3M | M6 | 325 | 750 | 200-410 |
10 | 6/9/12/15/18 | 5/0.8 | 9.5/1.5 | 5/20 | 0.55 | 2M | M5 | 325 | 750 | 200-410 |
12.5 | 6/9/12/15/18 | 5/0.8 | 12.5/2 | 5/20 | 0.55 | 1Am | M4 | 325 | 750 | 200-410 |
16 | 6/9/12/15/18 | 4/0.6 | 15/2.5 | 5/20 | 0.55×2 | 2M | M5 | 400 | 920 | 300-450 |
20 | 6/9/12/15/18 | 4/0.6 | 15/2.5 | 5/20 | 0.55×2 | 1Am | M4 | 400 | 920 | 350-400 |
General Drawing
