Product Details:
Payment & Shipping Terms:
|
| Usage: | Construction , Mining, Market , Workshop | Colour: | Customization |
|---|---|---|---|
| Power Source: | Electric | Condition: | New |
| Sling Type: | Wire Rope | Warranty: | 12 Months |
| Highlight: | electric cable hoist winch,electric cable winche |
||

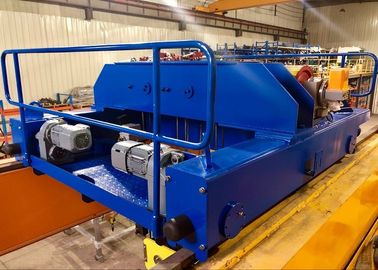

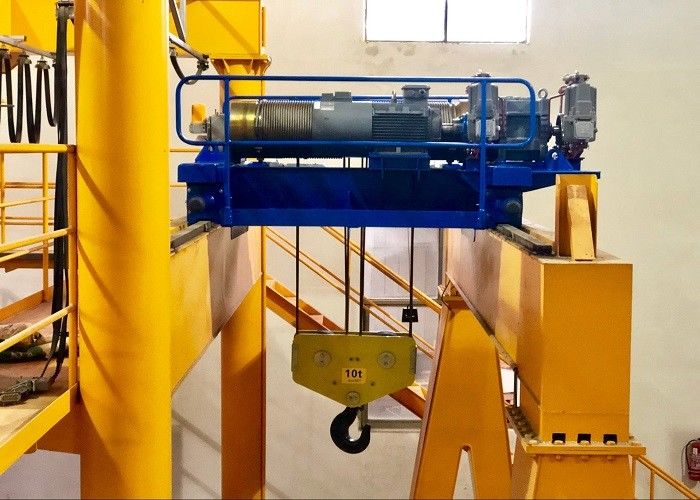

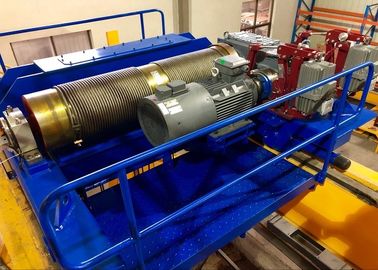

Electric Hoists Winches Cable with Lifting Load 10t
| Place of Origin: | Zhejiang, China |
| Brand Name: | Shuangpeng |
| Model Number: | JK1 |
| Certification: | ISO9001:2008 |
| Lifting Load | 10t |
| Span | -- |
| Max. Lifting Height | -- |
| Crane Travelling Speed | -- |
| Trolley Travelling Speed | -- |
| Minimum Order Quantity: | 1 |
| Price: | N/A |
| Packaging Details: | Naked |
| Delivery Time: | Within 60Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 400 Sets per Year |
Features:
The final drive gears are made of heat treated carbon steel that provides it a great strength.
It has an emergency crank handle.
Our product is available in AC and DC models also.
The front plate is made of stainless steel that provides a great rust resistance.
The die formed base of the equipment helps in quick mounting applications.
General Drawing or Sketch or Draft Drawing:
| Capacity (t) |
Lifting Height (m) |
Lifting Speed (m/min) |
Power of Lifting (kw) |
Traveling Speed (m/min) |
Power of Traveling (kw) |
Work Duty FEM/ISO |
Rail Distance (mm) |
C (mm) |
H (mm) |
Weight (kg) |
| 10 | 12 | 0.8-8 | 15 | 2~20 | 0.55x2 | 3m/M6 | 1600 | 805 | 1000 | 1960 |
| 18 | 2000 | 2106 | ||||||||
| 16 | 12 | 0.78-7.8 | 22 | 2~20 | 0.75x2 | 3m/M6 | 2000 | 895 | 1200 | 2847 |
| 18 | 2400 | 2996 | ||||||||
| 20 | 12 | 0.6-6 | 22 | 2~20 | 0.75x2 | 3m/M6 | 2000 | 965 | 1250 | 3295 |
| 18 | 2500 | 3480 | ||||||||
| 25 | 12 | 0.5-5 | 22 | 2~20 | 1.1x2 | 3m/M6 | 2000 | 990 | 1300 | 3886 |
| 18 | 2600 | 4152 | ||||||||
| 32 | 12 | 0.5-5 | 30 | 2~20 | 1.5x2 | 3m/M6 | 2200 | 1000 | 1350 | 4428 |
| 15 | 2600 | 4610 | ||||||||
| 18 | 3000 | 4802 | ||||||||
| 40 | 12 | 0.4-4 | 30 | 2~20 | 1.5x2 | 3m/M6 | 2200 | 1030 | 1400 | 4095 |
| 15 | 2600 | 5364 | ||||||||
| 18 | 3000 | 5667 | ||||||||
| 50 | 12 | 0.4-4 | 37 | 2~20 | 2.2x2 | 3m/M6 | 2500 | 1160 | 1450 | 6582 |
| 15 | 2800 | 6845 | ||||||||
| 18 | 3200 | 7090 | ||||||||
| 63 | 12 | 0.4-4 | 45 | 2~20 | 3.0x2 | 3m/M6 | 2500 | 1299 | 1550 | 7656 |
| 15 | 3000 | 8012 | ||||||||
| 18 | 3500 | 8368 | ||||||||
| 80 | 12 | 0.4-4 | 55 | 2~20 | 3.0x2 | 3m/M6 | 3000 | 1249 | 1650 | 10527 |
| 15 | 3500 | 10975 | ||||||||
| 18 | 4000 | 11423 | ||||||||
| 100 | 12 | 0.4-4 | 75 | 2~20 | 4.0x2 | 3m/M6 | 3000 | 1370 | 1800 | 12542 |
| 15 | 3500 | 13088 | ||||||||
| 18 | 4000 | 13636 |
