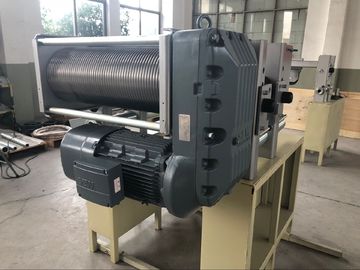

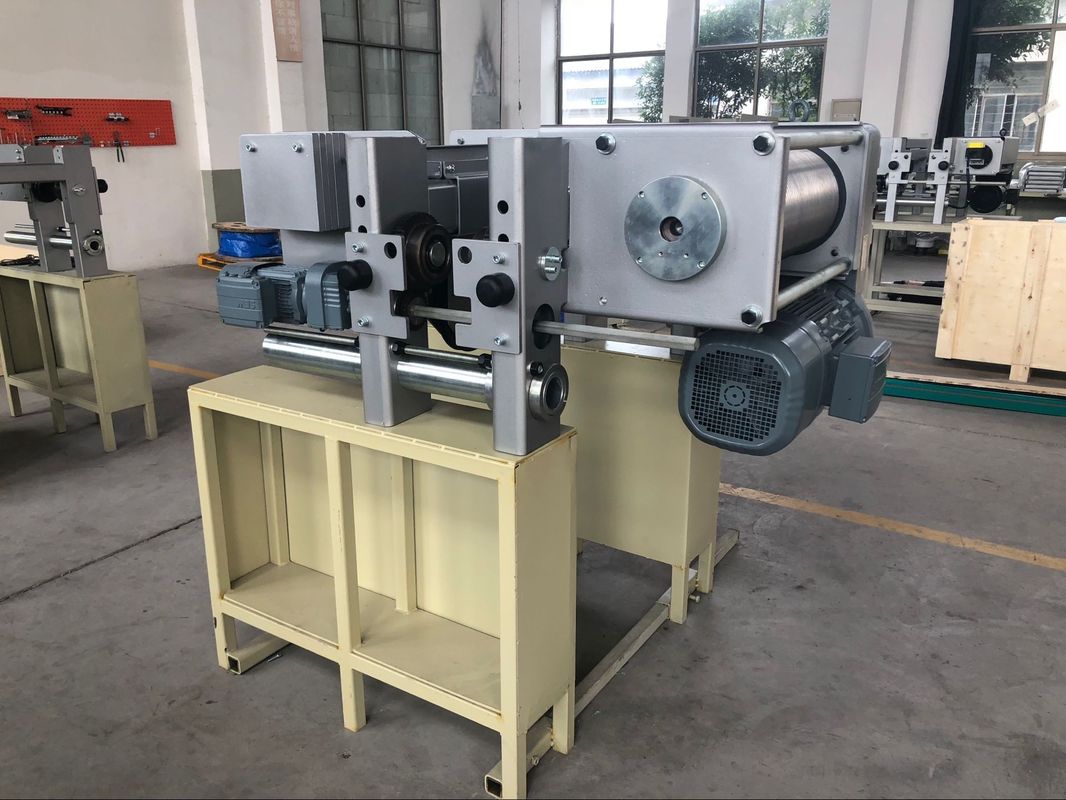

20T European 18m Mini Electric Wire Rope Hoist

20T European 18m Mini Electric Wire Rope Hoist

20T European 18m Mini Electric Wire Rope Hoist
20T European 18m Mini Electric Wire Rope Hoist 20T European 18m Mini Electric Wire Rope Hoist

Large Image :  20T European 18m Mini Electric Wire Rope Hoist Get Best Price

Product Details:
Place of Origin: China
Brand Name: Nante
Certification: ISO9001
Model Number: NHA-D
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: N/A
Packaging Details: Plywood package
Delivery Time: Within 50 days
Payment Terms: T/T, L/C
Supply Ability: 100000sets per year
Detailed Product Description
Condition: New Usage: Construction Hoist
Power Source: Electric Sling Type: Wire Rope
Maximum Lifting Weight: 20t Maximum Lifting Height: 18m
Lifting Power: 15 / 2.5kw Lifting Speed: 4/0.6 M/min
High Light:

18m Low Headroom Hoist

,

20t Low Headroom Hoist

20T European Standard Electric Wire Rope Hosit Low Headroom Hoist with Motor



Advantages:
1. Low headroom design, compact, strong, long service life span, save your space.
2. Three-in-one lifting motor: AMB Germany original imported. Column rotor, low noise.
3. Limit Switch: Cam limit model operate safety.
4. With load limiter protection.
5. Remote control avaliable.



New advantages:
1. Improved travelling motor: Lower noise, more effciency
2. Improved wire rope guider: Improved to engineering plastic material, lighter, less wear to wire rope



The high-quality lifting drive ensures the safe, stable and efficient operation, the compact structure design ensures the small offset size of the hook, the lifting provides the standard configuration of double speed (frequency conversion option), and the trolley is frequency conversion, which ensures the efficient operation of the lifting equipment, the lifting of the workshop logistics efficiency, and the timely implementation of the customer's work plans.

The concept of modular design runs through the whole product design, which ensures the standardization and interchangeability of components, greatly improves product quality and reduces product maintenance cost.



No Description
1. Reducer Third-class dead axel helica gear transmission structure is adopted,; gear and gear axel are made of heat treated alloy steel.
2. Control Box It has device with up an down stroke protection of break off limiter and can cut off main circuit in an emergency,which ensures safe operation of electric block.Electric elements are of long service life and operational safety.
3.Steel Wire Rope It uses GB1102-74(6*37+1) hoist steel wire rope which is durable in use.
4. Conical Motor The hoist motor uses conical motors of relatively stronger starting torque to brake asynchronous motor and does not need extra arrester. The motor s load duration factor is 25%.
5. Button Switch Its hand-operated, easy to handle,and has two modes of cord operation and cordless remote control
6.Gear By adopting Japanese technology, they are innovated symmetrical arrayed high-speed synchronous gears, and are made from international standard gear steel.
7.Chain Adopts high strength chain and high precision welding technology,meet ISO3077-1984 international standard;fits for gusty overload work conditions;takes your hands a better feeling multi-angle operation.
8.Hook Made of high-class alloy steel,it has high strength and high security; by using new design, weight will never escape.



Application



Used in the factory, mine, dock, warehouse, temperature-20 ~ + 40 °C, relative humidity under 85%.



Design Feature



(1) Imported motor can be chosen for high working level up to M5, low noise
(2) Applies to factories, freight yards, terminals, power plants, construction sites and other places
(3) Particularly suitable for the plant with restrict height, maximize the effective lifting height



General Drawing

20T European 18m Mini Electric Wire Rope Hoist 0


Technical Data





Capacity
(t)
Lifting Height
(m)
Lifting Speed
(m/min)
Lifting Power
(KW)
Travel Speed
(m/min)
Travel Power
(KW)
Work Duty - Lifting
FEM/ISO
H
(mm)
C
(mm)
Rail Gauge
B(mm)
2 6/9/12/15/18 5/0.8 3.3/0.5 5/20 0.37 3M M6 210 556 150-300
3.2 6/9/12/15/18 5/0.8 3.3/0.5 5/20 0.37 2M M5 210 556 150-300
5 6/9/12/15/18 5/0.8 6.1/1 5/20 0.37 2M M5 260 596 200-350
6.3 6/9/12/15/18 5/0.8 6.1/1 5/20 0.37 1Am M4 260 596 200-350
8 6/9/12/15/18 5/0.8 9.5/1.5 5/20 0.55 3M M6 325 750 200-410
10 6/9/12/15/18 5/0.8 9.5/1.5 5/20 0.55 2M M5 325 750 200-410
12.5 6/9/12/15/18 5/0.8 12.5/2 5/20 0.55 1Am M4 325 750 200-410
16 6/9/12/15/18 4/0.6 15/2.5 5/20 0.55×2 2M M5 400 920 300-450
20 6/9/12/15/18 4/0.6 15/2.5 5/20 0.55×2 1Am M4 400 920 350-400







20T European 18m Mini Electric Wire Rope Hoist 1
