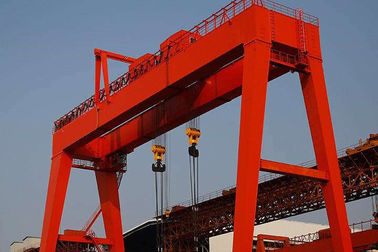

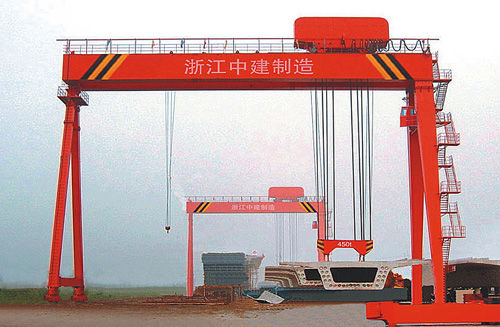

Electric Gantry Crane for Shipbuilding / Road Construction Sites 450t 32m - 20m

Electric Gantry Crane for Shipbuilding / Road Construction Sites 450t 32m - 20m

small.img.alt small.img.alt

Large Image :  Electric Gantry Crane for Shipbuilding / Road Construction Sites 450t 32m - 20m Get Best Price

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Nante
Model Number: QM450T-38M-28M
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: N/A
Packaging Details: Naked
Delivery Time: Within 2 months
Payment Terms: L/C, T/T
Detailed Product Description
Capacity: 450t Span: 32m
Height: 20m Total Power: 148KW
Total Weight: 880t Wire Rope Dia.: Φ42mm
Applications: Widely Lifting Speed: 0.72-0.9m/min
High Light:

rail mounted gantry crane


launching girder bridge

450t Electric Gantry Crane for Shipbuilding


Electric Goliath Gantry Cranes offer an economical solution to bridge cranes when the building is inadequate to support a overhead crane or the crane system is to be located outdoors. A box girder portal gantry crane is a gantry crane that utilizes a "box" configuration in fabricating the girder. This box girder design incorporates a four-sided box with a running surface plate for the hoist trolley attached to the bottom of the box. The advantage of the box girder is that it possesses greater loading capabilities and is able to apply to bigger bridge distances. The crane is generally utilized in pairs with the hoisting mechanism operating on rails attached to the top of each box girder.


Gantry portal crane for shipbuilding can be applied to both single girder and double girder format. It is ideal for outdoor applications where lifting devices can be applied without the cost of supporting steelwork. Indoor applications are also available where with a low ceiling and overhead cranes are not suitable. Typical occasions of goliath gantry crane include steel stock yards, loading areas, the concrete industry, ship building, and workshops.


Gantry/Portal/Goliath cranes are widely used in the following applications:

  1. Precast yards
  2. Shipbuilding
  3. Container Handling
  4. Construction sites
  5. Marble / Granite Industry
  6. Mining Maintenance
  7. Bridge Construction sites
  8. Road Construction Sites
  9. Stock yards
  10. Scrap yards
  11. Railway yards

Design features include:

1. Main girder:
is welded of steel plates, connected by high-strength precision bolt. There are sliding rail for trolley to travel upper the girder which is fixed on outrigger by high-tension precision bolt

2. Outrigger
a). Consist of rigid outrigger and flexible outrigger, all connection points are connected by high-tension bolt
b). The ladder is used by operator to enter into cab or arriving at winch
c). when the span>30m, there need a flexible leg aiming at reducing the lateral thrust the trolley has to the rail when the girder load objects.

3. Travelling mechanism
consist of driving gear box and passive wheel box.

a). The driving gear box supplies power to realize the crane’s travelling.

b). what the difference between driving gear box and passive wheel box is that passive wheel box lacks transmission structure such as dynamo, reducer and a pair of exposed gear

4. Trolley with hoist
is made up of trolley frame, winch and pulley block
a). Trolley frame welded of steel plate is the loading and travelling mechanism of trolley with hoisting
b). Winch is the lifting mechanism of trolley..when it works, wire rope affects the pulley as rising and falling movement, which makes suspended objects lifting and lowering

Warning: wire ropes need to be examined regularly and changed in time if there is a 10% broken wires, loosen wires and wearing down.

5. Cab
a). Glass window through which one can watch overall working condition is installed in the front and two sides of the cab
b). Electric cabinet as a group of independent cabinet , fixed outside of cab is connected by control cable and linkage station which is set up in the cab

6. Electrical system
a). lifting motor, crane travelling motor and hydraulic power motor are included. The whole electrical system is controlled by PLC.
b). two ways to operate the crane: cab operating and remote controlling.
c). Electric components are imported from Schneider in Germany

7. Platform
platform is installed in order to maintain the crane, the protective guard is added to protect the safety of servicemen.

General Drawing or Sketch or Draft Drawing


Technical Parameters

Rated Lifting Capacity


Clear Span


Effective Lifting Height


Trolley Traveling Speed


Lifting Speed




Rate of Pulley block


Wire Rope Dia.


Crane Traveling Speed


Wind Pressure under working


Lifting Capacity of Auxiliary hook


Total Power


Total Weight



Place of Origin:

Zhejiang, China

Brand Name:


Model Number:




Max. Lifting Load




Max. Lifting Height


Crane Travelling Speed


Trolley Travelling Speed
