| Highlight: | pile driver machine,pile driver equipment |
||
|---|---|---|---|

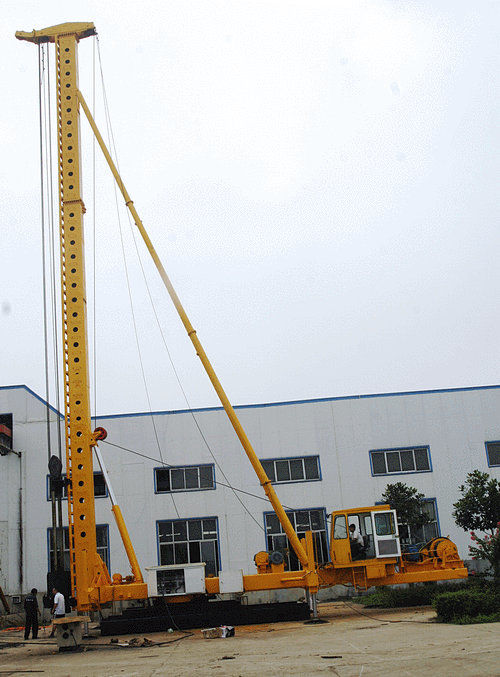

Hydraulic Walking Multifunctional Piling Machine / Hammer Pile Driver with 360 ° Rotation
Multifunctional piling machine/ piling machine employs diesel hammer type, the steel is with universal adjustment; aircraft hydraulic rotary flexible operation according to the need to play the bored piles, precast piles, rubble pile driver ram piles with other types of piles to achieve the 360 ° rotation operation; play CFG pile, low noise, shock, vibration small, non-polluting; multifunctional angle pile and has a good saving for expenditure; hydraulic walking shift flexible, in place to facilitate the four outrigger cylinder is designed to be self-installed the dump; multifunctional pile driver using a diesel hammer pile the main structure, coupled with tailor-made electrical appliances, operation, hydraulic system, able to adapt to different engineering.
Type | KLB20-6T | Main hoist | Pull | 5T |
Max. Diesel hammer type | DD63 | traction speed | 12m/min | |
Drilling depth | 20m | Auxiliary winch | pull | 4T |
Drilling diameter | 300-600mm | traction speed | 17m/min | |
displacement means | Hydraulic walking | Dimensions | working status | 12.5×4.7×26.5m |
overall weight | 36T | transporting state | 15.3×2.5×3.2m |
Type | KLB25-8T | Main hoist | Pull | 8T |
Max. Diesel hammer type | DD83 | traction speed | 12m/min | |
Drilling depth | 25m | Auxiliary winch | pull | 5T |
Drilling diameter | 300-600mm | traction speed | 17m/min | |
displacement means | Hydraulic walking | Dimensions | working status | 12.5×4.7×30.9m |
overall weight | 43T | transporting state | 15.3×2.5×3.2m |
