International Standard Rigid Formwork Truss Form Traveler System

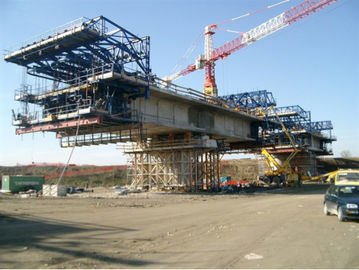

The form traveller system for viaduct construction is acclaimed for achieving the cost-effectiveness of bridge projects worldwide. The system is lightweight, versatile, easy to assemble and operate, rolling forward on rails, the system can be reset quickly and easily.
The form traveller is used for free cantilever construction of post-tensioned box girder - and cable-stayed concrete bridges. Engineering to international standards, the system provides an exceptionally rigid formwork, with a maximum deflection of less than 25mm at full loading.
The Standard form traveller is designed for a maximum segment length of 5 m and load capacities (concrete and formwork) varying from 250t to 400t. The steel weight depends on the cross section of the bridge in question, but will normally vary from about 25t to 65t correspondingly. The Standard form traveller may be adapted to suite almost any cross-section, and is easily adjustable during operation to variations in segment length (up to 5 m), section height, web thickness, and deck width.
Form Travellers are widely used in the following applications:
1. Construction Site
Design features include:
1. High load-bearing Simple in structure.
2. Convenient in assembly, fixing and disassembly.
3. It takes no road space when under construction.
4. Type: Triangle Form Traveler, Rhombus Form Traveler, Cable-stayed Form Traveler

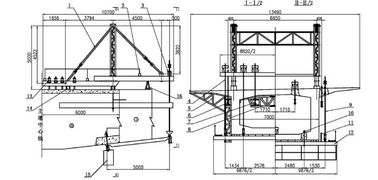

General Drawing or Sketch or Draft Drawing
