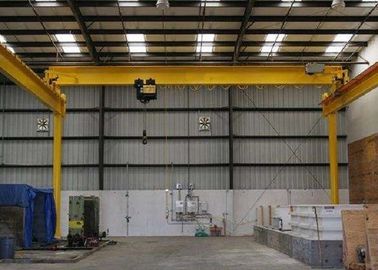

Light Duty Electric Single Girder Overhead Cranes , Travelling Crane

Light Duty Electric Single Girder Overhead Cranes , Travelling Crane

Light Duty Electric Single Girder Overhead Cranes , Travelling Crane
Light Duty Electric Single Girder Overhead Cranes , Travelling Crane Light Duty Electric Single Girder Overhead Cranes , Travelling Crane Light Duty Electric Single Girder Overhead Cranes , Travelling Crane

Large Image :  Light Duty Electric Single Girder Overhead Cranes , Travelling Crane Get Best Price

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Nante
Certification: ISO 9001
Model Number: LDX 5t~10m
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: N/A
Packaging Details: Naked
Delivery Time: Within 60 days
Payment Terms: L/C, T/T
Detailed Product Description
Color: Yellow/Red Capacity: 1~20 T
Lifting Height: 9m Span: 10.5~28m
Brand: Nante Material: Q235B
High Light:

design overhead crane

,

overhead electric cranes



Light duty electric Single girder overhead cranes travelling crane with 5T load capacity

LDX model single girder overhead crane 5t is designed in accordance with European standard with compact structure, small wheel pressure, which carries out effective use of limited plant space, and reduce the cost of plant structure.
LD model single girder overhead crane 5t is widely used in machinery manufacturing, metallurgy, ports, railway stations, warehouses and other occasions, providing more efficient logistics solutions, especially for accurate positioning operation.

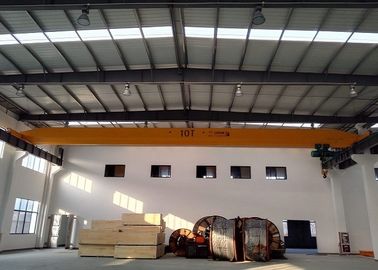

Light Duty Electric Single Girder Overhead Cranes , Travelling Crane 0





Single girder overhead crane with hoist are widely used in the following applications:

  1. LIGHT DUTY Cranes for maintenance, warehouse and assembly operations.
  2. MEDIUM DUTY Cranes for general engineering application and Machine shop.
  3. HEAVY DUTY Cranes for Heavy machine shops, paper mills, Fabrication shop, etc.



Technical Parameters



      10T
  Span m 10.5 14 17.5 21 24.5
Speed Lifting Speed m/min 5/0.8
Trolley Speed 5.0/20
Bridge Speed 8/32
Motor Power Lifting Motor kW 9.5/1.5 9.5/1.5 9.5/1.5 9.5/1.5 9.5/1.5
Trolley Motor 0.96x1 0.96x1 0.96x1 0.96x1 0.96x1
Bridge Motor 0.75x2 1.1x2 1.1x2 1.1x2 1.1x2
Crane Power 11.96 12.66 12.66 12.66 12.66
Basic Data Max.Wheel Load KN 58.7 61.4 64.7 68.6 74.5
Wheel Dia.   200 200 200 250 250
Model of End Carriage   HSE200-15 HSE200-20 HSE200-25 HSE250-30 HSE250-35
Gear Model   SK2282-0.75 SK2282-1.1 SK2282-1.1 SK2282-1.1 SK2282-1.1
Crane Wheel Qty. Pcs 4 4 4 4 4
Crane Rail   40×60 40×60 40×60 40×70 40×70





Design features include:



STRUCTURE:
        Bridge Girder, End carriages, Crab Frame manufactured from box plate design / Rolled Sections. If required 100% radiography of all butt welding joints of bridge and end carriages can be provided.



MOTORS:
        Nante Crane uses sturdy cylindrical/ conical rotor pole-changing motors with elegant continuous cast aluminum sections, integrated safety brakes insulation class F, IP54 protection.



Variable Frequency Drives & Remote Controls:
        We also offer Variable Frequency Drive in hoisting, cross travel, long travel for stepless speed control as an optional feature. We also provide radio remote control cranes for application in inaccessible and hazardous areas.



BRAKES:
        Failsafe magnetic or hydraulic brakes of 150% torque or more are fitted on shaft extensions. For heavy duty cranes a second brake can be mounted to ensure failsafe operation.



CONTROLS:
        Pendant control from floor, master control switches, master controllers in the driver's cabin can be provided. Radio remote control can be provided on request.


Safety feature:
Weight overload protection device, Top quality long time bearing polyurethane materials buffer, Crane traveling limit switch, Voltage lower protection function, Emergency stop system, current overload protection system and so on!



Light Duty Electric Single Girder Overhead Cranes , Travelling Crane 1
