Precast Beam Field 10t Winch Motor Double Gantry Crane

Precast Beam Field 10t Winch Motor Double Gantry Crane

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Precast Beam Field 10t Winch Motor Double Gantry Crane Get Best Price

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Nante
Certification: ISO9001:2008
Model Number: DCS60t-20m-16m
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: N/A
Packaging Details: in Container
Delivery Time: Within 2 months
Payment Terms: L/C, T/T
Detailed Product Description
Feature: Gantry Crane Application: Precast Beam Field
Rated Loading Capacity: 60t Span: 20m
Height: 16m Control Method: Crane Cabin / Remote Control
Power Supply: 3P 380VAC 50HZ Certification: CE
Condition: New Warranty: One Year
High Light:

gantry crane 10 ton

,

overhead and gantry cranes

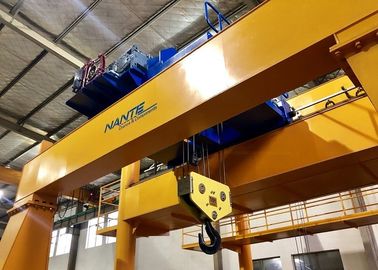

Double Girder Gantry Crane for Precast beam field DCS10t-20m-16m with 10t Nante Winch( motor)



Gantry crane is a kind of deformation of bridge crane, also called gantry crane. It is mainly used for loading and unloading of outdoor goods yard, stock yard and bulk cargo. Gantry crane has the characteristics of high utilization rate, wide operation range, wide adaptability and strong universality, which is widely used in port freight yard.

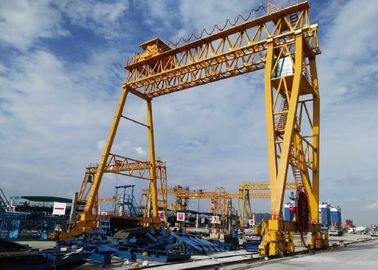

Its metal structure is like a portal frame. Two legs are installed under the main beam, which can walk directly on the track on the ground. The two ends of the main beam can have overhanging cantilever beams.

Double girder gantry crane has strong bearing capacity, large span, good overall stability and many varieties, but its quality is larger and its cost is higher than that of single girder gantry crane with the same lifting capacity. According to the different girder structure, it can be divided into two forms: box girder and truss girder.



Gantry cranes are widely used in the following applications:

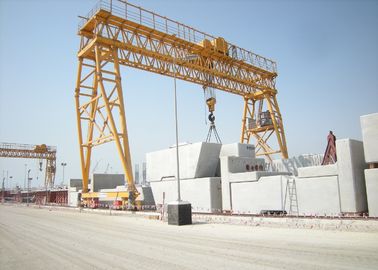

1. Precast yards

2. Shipbuilding

3. Container Handling

4. Construction sites

5. Marble / Granite Industry

6. Mining Maintenance

7. Bridge Construction sites

8. Road Construction Sites

9. Stockyards

10. Scrapyards

11. Railway yards



Main Features:

1. NANTE double girder gantry crane follow FEM standard.
2. The main girder can be box type and lattices type which can windproof and low weight.
3. Double grider gantry crane can achieve the lifting height until 80m, span until 60m, capacity until 700ton
and duty group until M8.

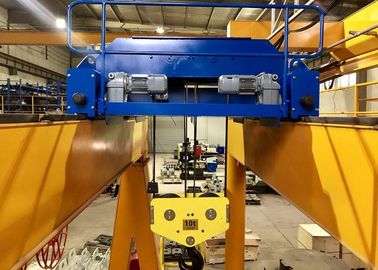

4. Use hollow shaft bogie design with vertical gear motor, which is space saving and long service life.
5. The hoist, winch trolley, control panel, gear motor have rainproof cover which can achieve higher IP class



Design features:

1. Steel structure part of the gantry crane is welded by U-steel with light weight, low cost and convenient assembly and disassembly.

2. Fast lifting speed and high wind resistance.

3. Many safety devices such as overload limiter, over-height limiter and overspeed switch are added to ensure products’ safe operation.

4. We can design gantry cranes with different specifications to meet different customers’ requirements.

5. Full penetration sub-arc welded top flanges for the ultimate in strength and fatigue resistance.

6. Line bored one piece end carriages to ensure precise alignment and smooth travelling options.

7. High quality enamel paint with optional 2-pak or client specific systems.

8. Oversized motors and controls to allow operation in high wind conditions, sandblast and high performance paint systems, galvanized fasteners, space heaters in motors and controls, hoist covers, motor covers etc.

9. Peace of mind knowing that your crane is designed by qualified engineers and manufactured by qualified boilermakers, electricians and fitters.



Data Sheet:

Double Girder Gantry Crane
Capacity   10T 20T 32T
Span m 10 15 20 25 30 10 15 20 25 30 10 15 20 25 30
Cantilever m 3 ~ 7 3 ~ 7 3 ~ 7
Height of Lifting m 6 ~ 15 6 ~ 30 6 ~ 30
Lifting Speed m/min 5/0.8 4/0.66 3.3/0.8
Trolley Speed 5~20 5~20 5~20
Long Travel Speed 0-20, 0-32, 0-40 0-20, 0-32, 0-40 0-20, 0-32, 0-40



our factory

Precast Beam Field 10t Winch Motor Double Gantry Crane 0
