Payment & Shipping Terms:
|Max. Lifting Load:||5T||Span:||10m|
|Brand Name:||NANTE||Lifting Height H:||6m|
|Place Of Origin:||China||Certification::||ISO9001:2008|
design overhead crane,
overhead electric cranes

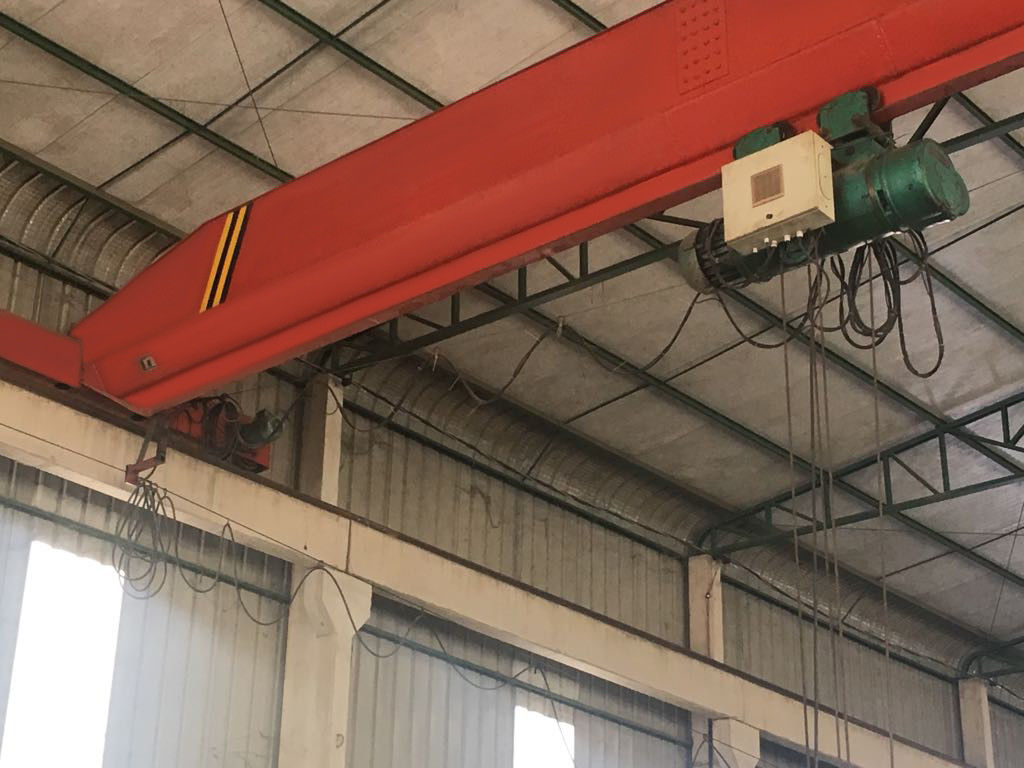

Single Girder Electric Overhead Travelling Crane with China Domestic Configuration Red Color
When heavy loads and wide spans are required, the double girder overhead cranes show their strength. They consist of two torsion-free box girders. This makes them especially suitable for lifting and transporting loads over 50T and for span of more than 35m.
Double girder overhead cranes are available with load capacities up to 50T and with spans up to 35 m. Articulated end carriage joints ensure positive contact of all four wheels with the track. The range of fixing arrangements allows the appropriate integration of double girder travelling cranes into new buildings as well as into existing buildings. Just as with all other types of double girder travelling cranes, the profiles of the main girder are optimally produced using computers so that maximum performance with a minimum of dead-weight can be achieved. An advantage that has financial benefits.
Single girder overhead crane with hoist are widely used in the following applications:
|Motor Power||Lifting Motor||kW||9.5/1.5||9.5/1.5||9.5/1.5||9.5/1.5||9.5/1.5|
|Basic Data||Max.Wheel Load||KN||58.7||61.4||64.7||68.6||74.5|
|Model of End Carriage||HSE200-15||HSE200-20||HSE200-25||HSE250-30||HSE250-35|
|Crane Wheel Qty.||Pcs||4||4||4||4||4|
Design features include:
Bridge Girder, End carriages, Crab Frame manufactured from box plate design / Rolled Sections. If required 100% radiography of all butt welding joints of bridge and end carriages can be provided.
Nante Crane uses sturdy cylindrical/ conical rotor pole-changing motors with elegant continuous cast aluminum sections, integrated safety brakes insulation class F, IP54 protection.
Variable Frequency Drives & Remote Controls:
We also offer Variable Frequency Drive in hoisting, cross travel, long travel for stepless speed control as an optional feature. We also provide radio remote control cranes for application in inaccessible and hazardous areas.
Failsafe magnetic or hydraulic brakes of 150% torque or more are fitted on shaft extensions. For heavy duty cranes a second brake can be mounted to ensure failsafe operation.
Pendant control from floor, master control switches, master controllers in the driver's cabin can be provided. Radio remote control can be provided on request.
