ISO Box Type MH 5T - 9M Single Girder Gantry Crane For Indoor / Outdoor Use

ISO Box Type MH 5T - 9M Single Girder Gantry Crane For Indoor / Outdoor Use

ISO Box Type MH 5T - 9M Single Girder Gantry Crane For Indoor / Outdoor Use
ISO Box Type MH 5T - 9M Single Girder Gantry Crane For Indoor / Outdoor Use ISO Box Type MH 5T - 9M Single Girder Gantry Crane For Indoor / Outdoor Use ISO Box Type MH 5T - 9M Single Girder Gantry Crane For Indoor / Outdoor Use

Large Image :  ISO Box Type MH 5T - 9M Single Girder Gantry Crane For Indoor / Outdoor Use Get Best Price

Product Details:
Place of Origin: China
Brand Name: Nante
Certification: ISO9001
Model Number: 5T -9M
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: N/A
Packaging Details: Seaworthy packings in container or bulk vessel
Delivery Time: Within 2 months
Payment Terms: T/T, L/C
Supply Ability: 5000 Sets per Year
Detailed Product Description
Capacity: 5t Span: 9m
Height: 8m Certificate: ISO9001
Colour: Red/ Yellow
High Light:

launching girder bridge

,

travelling gantry crane



ISO Box Type 5T - 9M Single Girder Gantry Crane for Indoor/ outdoor use

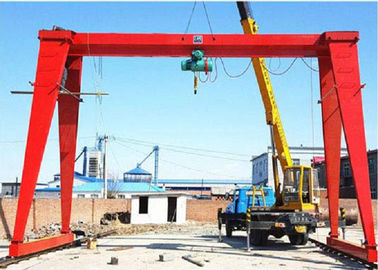

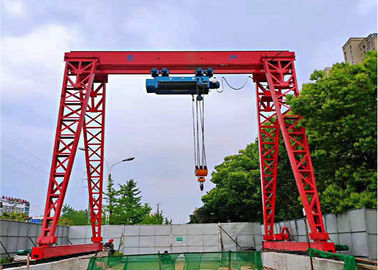

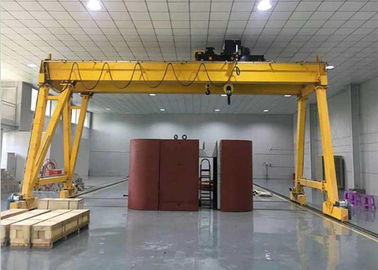

 MH single girder gantry crane is the most commonly used light duty crane, widely applied for indoor and outdoor workplaces, such as storage yards, warehouse, workshop, freight yards, and dock. It is a typical A frame gantry crane and the lifting capacity of this equipment is in a range of 3 ton to 16 ton to handle small and medium sized materials. The metal structure of this lightweight gantry crane is usually designed with box type. For outdoor working environments with strong wind, truss gantry crane is more often used to reduce wind resistance.

Features:
1. high working efficiency;
2. smooth movement &comfortable operation;
3. convenient maintenance & aesthetic painting;
4. light deadweight, light wheel load and reliable performance;
5. customized: design and manufacture according to your request.
Mechanism:
1. High quality carbon steel Q235B and Q345B;
2. connected by high strength screws;
3. Welding seams are tested by X-ray and ultrasound;
4. Compact structure, small volume;
5. Compact reducer motor drive, step less control, hardened gears and safety disc brake;
6. Good operation performance, step less speed regulating and running smoothly;
7. Painting high quality epoxy zinc-rich primer, and the thickness of oil film is 140μm;

Electric System:
1. Control panel protection degree is IP54;
2. Reasonable components installation, convenient for check and maintenance;

ISO Box Type MH 5T - 9M Single Girder Gantry Crane For Indoor / Outdoor Use 0

Control method:
(1) Pendent line control
(2) Remote control
(3) Cabin control
(4) Choose any two together
Safety Protection Devices:
Overload limiter, limit switch, interlocking protection devices, buffer, track sweep plate, bus bar protection board, anti-collision device, main disconnecting switch, emergency stop system and motor overload protection.



General Drawing or Sketch or Draft Drawing

ISO Box Type MH 5T - 9M Single Girder Gantry Crane For Indoor / Outdoor Use 1

Technical data:

Place of Origin: Zhejiang, China
Brand Name: Nante
Model Number: 5t-9m
Certification: ISO9001:2008
Lifting Load 5t
Span 9m
Lifting Height 8m
Crane Travelling Speed 20m/min
Power 220/380/440V 3P 50/60hz



ISO Box Type MH 5T - 9M Single Girder Gantry Crane For Indoor / Outdoor Use 2
