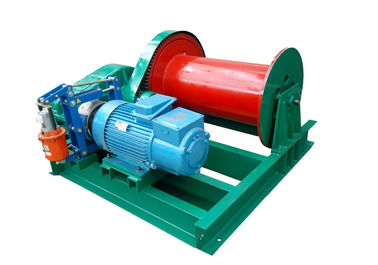

JM10t Electric Hoist Winch Electric Wire Rope Hoists Load 10ton with Work Duty M6

China JM10t Electric Hoist Winch Electric Wire Rope Hoists Load 10ton with Work Duty M6 supplier

Large Image :  JM10t Electric Hoist Winch Electric Wire Rope Hoists Load 10ton with Work Duty M6

Product Details:

Place of Origin: Zhejiang, China
Brand Name: Nante
Certification: ISO9001:2008
Model Number: JK10t

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: N/A
Packaging Details: Naked
Delivery Time: Within 2 months
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Capacity: 10t Lift Height: 12m
Lift Speed: 0.8-8 M/min Power Of Lifting: 15kw
Travel Speed: 2-20 M/min Power Of Travel: 0.55*2kw

JM10t Electric Hoist Winch Electric Wire Rope Hoists Load 10ton with Work Duty M6

Place of Origin:

Zhejiang, China

Brand Name:

Shuangpeng

Model Number:

JM10t

Certification:

ISO9001:2008

Max. Lifting Load

10t

Span

--

Max. Lifting Height

--

Crane Travelling Speed

--

Trolley Travelling Speed

--

Minimum Order Quantity:

1

Price:

N/A

Packaging Details:

Naked

Delivery Time:

Within 2 months

Payment Terms:

L/C, T/T

Supply Ability:

400 Sets per Year



Nante manufactures and exports superior quality electric winches for various applications based on several parts of the world. We have 18 years of winch manufacture experience, with refined technology. Electric hoisting winding engine is a device consisting of a horizontal cylinder turned back by a crank on which a cable or a rope wind is bound. These are compact and light weight material handling and lifting equipments, suitable for installation on cranes, davits and derricks.

Electric Winches are widely used in the following applications:

1.    Cranes

2.    Davits

3.    Derricks

4.    Marine

5.    Punching driver

6     Construction Site and Port

Features:

1.     The final drive gears are made of heat treated carbon steel that provides it a great strength.

2.     It has an emergency crank handle.

3.     Our product is available in AC and DC models also.

4.     The front plate is made of stainless steel that provides a great rust resistance.

5.     The die formed base of the equipment helps in quick mounting applications.

General Drawing or Sketch or Draft Drawing

JM10t Electric Hoist Winch Electric Wire Rope Hoists Load 10ton with Work Duty M6

JM10t Electric Hoist Winch Electric Wire Rope Hoists Load 10ton with Work Duty M6

Technical Data

Model

JM10

JM12

JM15

JM18

JM20

JM25

Max Load (KN)

100

120

150

180

200

250

Rated Rope Speed  (m/min)

9

10

11.5

10

10

9

Rope Dia. (mm)

φ 31

φ 34

φ 40

φ 36

φ 42

φ 44

Length of Rope(m)

500

650

800

600

600

400

Motor Model

YZR225M-8

YZR250M2-8

YZR280M-6

YZR280S-8

YZR280M-8

YZR280M-8

Power (kw)

22

37

45

45

45

55

Figure

Length(mm)

2170

2020

2540

3040

3140

3140

Width(mm)

3070

2300

2570

2350

2400

2400

Height(mm)

1300

1600

1770

2100

2160

2100

Total Weight (kg)

3500

5000

7500

9000

10000

11500
