Special Alloy Steel Wire Rope Hoists WHL - C Two Drum Bucket Electrical Low Headroom

China Special Alloy Steel Wire Rope Hoists WHL - C Two Drum Bucket Electrical Low Headroom supplier

Large Image :  Special Alloy Steel Wire Rope Hoists WHL - C Two Drum Bucket Electrical Low Headroom

Product Details:

Place of Origin: Zhejiang, China
Model Number: WHL-C

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: USD1500~USD3500
Packaging Details: Container packing
Delivery Time: Based on client's needs
Supply Ability: 100000 Sets per Year
Detailed Product Description

Low headroom electric wire rope hoist (4/1 rope reeving)
Twin Beams Wire Rope Electric Hoist have been exported to almost 50 countries and regions, including Europe, USA, Australia and Southeast Asia, etc; and our products, by its newly unique design and super quality, have gained a good reputation among users in China and abroad.

Higher Security and Reliability
1. Brake and clutch ensure the safety under any circumstance, no slip under load
2. IP55 of hoist frame and brake ensures the optimal corrosion resistance under harsh environment.
3. Up and down limit switch ensures the safe operation of the hook on the top and bottom position.
4. Low voltage contactor ensures the safe and reliable operation.
5. Efficient high lifting speed,smooth low lifting speed, precise positioning.
6. Humanization design of control pendant, high tensile seamless twisting
sheath of control cable, optimize the operation to the utmost.
7. Novel design, compact structure.

Components
1. Hooks
Load hooks are heat treated and fracture resistant. In case of dangerous overloading or abuse, the hook does not fracture but will slowly yield.
2. Power
Operating voltage 220-440V, 50/60Hz, 1-3 phase.
Standard low voltage control 36V.
Dual voltage is available.
3. Motor
High efficient energy-saving motor, asbestos free brake system. 2-speed motor available.
Sturdy pole change motors with cylindrical rotors and integrated safety brakes.
3. Limit Switch
Limit switch devices fitted at both top & bottom ends, switch off power automatically to prevent load chain from running out.
4. Pushbutton Switch
Pushbutton switch is rain-proof plastic for severe impact and corrosive atmosphere resistance and mechanically interlocked.
5. Hoisting Gear:
Lightweight gear units with silent running flat bevelled gears deliver the torque required.
6. Rope guide:
The rope guide reduces wear on the rope and rope drum. It is also easy to install, reducing maintenance requirements for the unit as a whole.

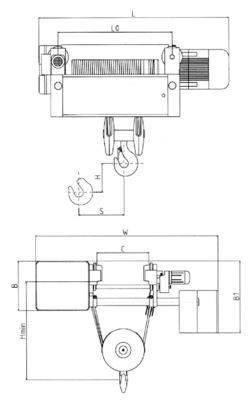

 LOW HEADROOM ELECTRIC WIRE ROPE HOIST,WHL-C TYPE



MODEL

CAP.
(T)

LIFTING SPEED(M/MIN)

TRAVELLING SPEED(M/MIN)

GROUP
ISO

ROPE REEVING

LIFTING MOTOR(KW)

C/mm

A1/mm

A2/mm

B/mm

Hmin/mm

S/mm

WHL-CA2016

1.6

8.0/1.2

15/5

M5

2/1

2.5/0.37

100-500

378

297

430

917

0.0198H

WHL-CA2032

3.2

4.0/0.6

15/5

M5

4/1

2.5/0.37

100-500

378

297

430

760

0.0198H

WHL-CA3025

2.5

8.0/1.2

15/5

M5

2/1

4.9/0.8

116-450

400

329

525

1014

0.0212H

WHL-CA3050

5.0

4.0/0.6

15/5

M5

4/1

4.9/0.8

116-450

400

329

525

872

0.0212H

WHL-CA4063

6.3

10/1.6

15/5

M4

2/1

12.5/2.0

142-500

475

458

688

888

0.0192H

WHL-CA4125

12.5

5/0.8

15/5

M4

4/1

12.5/2.0

142-500

475

458

688

897

0.0192H
