Custom Double Girder Electric Steel Wire Rope Hoists SH Type Motor Protection IP54

China Custom Double Girder Electric Steel Wire Rope Hoists SH Type Motor Protection IP54 supplier
Custom Double Girder Electric Steel Wire Rope Hoists SH Type Motor Protection IP54 supplier Custom Double Girder Electric Steel Wire Rope Hoists SH Type Motor Protection IP54 supplier

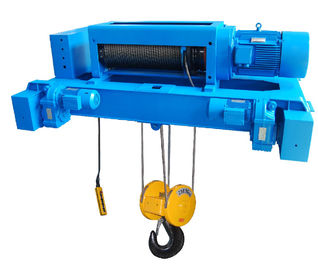

Large Image :  Custom Double Girder Electric Steel Wire Rope Hoists SH Type Motor Protection IP54

Product Details:

Place of Origin: Zhejiang, China
Model Number: SH

Payment & Shipping Terms:

Price: N/A
Packaging Details: Container packing
Delivery Time: Based on client's needs
Supply Ability: 100000 Sets per Year
Contact Now
Detailed Product Description

Motor Protection IP54 Custom Double Girder Electric Steel Wire Rope Hoists SH Type



Lifting capacity

0.5~50ton

Lifting Height

6~35m

Lifting Speed

5/15m/min





 Nante can provide dual rail built-up crab trolley hoist with tough quality. An electric double beam built-up crab hoist is a hoist that make use of steel wire rope as the lifting medium. Usually with heavier loads, we adopt steady and tough material for the trolley frame. It is often powered electrically or pneumatically. This lifting device is consists of a rope storage drum, motor(s), gear box and braking system, and is suspended from a monorail or bridge beam(s) by means of a trolley. It may also be stationary mounted.





A lifting crane is a machine used for lifting and lowering a load, and moving it horizontally. A crane's drives may be manual, powered or a combination of both. Cranes are typically used when there is insufficient (or intermittent) flow volume such that the use of a conveyor cannot be justified. They provide more flexibility in movement than conveyors, and less flexibility in movement than industrial trucks. Loads handled by cranes are more varied with respect to their shape and weight than those handled by a conveyor. Most cranes utilize hoists for vertical movement, although manipulators can be used if precise positioning of the load is required.

Many different types of cranes are used for material handling applications. These include overhead cranes as well as cherry picker type boom lifts, mobile and self-propelled cranes, straddle and counterbalanced (cantilevered) cranes. Portable and mobile floor cranes can be equipped with fixed or telescopic booms as well as mast rotation when equipped with outriggers. Lifting can be performed with the boom itself or a winch operated cable lift.

Selection Criteria

The size of the hoist is determined by the load spectrum, average operating time, safe working load and rope reeving.

1. What are the operating conditions ?
2. What is the specified safe working load ?
3. To what height must the load be lifted ?
4. What is the required lifting speed ?
5. Do the loads need to be lifted and lowered with great accuracy ?
6. Is horizontal load travel necessary ?
7. How the hoist to be controlled ?



Custom Double Girder Electric Steel Wire Rope Hoists SH Type Motor Protection IP54

Custom Double Girder Electric Steel Wire Rope Hoists SH Type Motor Protection IP54

Whether chain hoist or wire rope hoist, electric or pneumatic; our line of powered hoists are ideal in manufacturing, power generation, and industrial facilities where heavy items are lifted and positioned as part of production or warehousing. Our new model high-capacity wire rope hoist complements our line with capacities up to 50 Tons. We offer a full line of manual hoists, both hand chain and lever tools, which are used primarily for maintenance and construction activities.

● 1 ton thru 5 ton Electric Hoists

● 3 ton thru 15 ton Monorail Wire Rope Hoists

● 5 ton thru 40 ton Top Running Wire Rope Hoists



Custom Built Hoists:

● Various Capacities

● Double Girder, Monorail, Jib cranes etc.

● All Types of Open Winches

● Polar Trolley Hoists

● Critical Lift

● Twin Hook

● Quadruple Hook

● Explosion Proof

● Indoor or Outdoor Use

● Transfer Cars

● Hazardous Locations

● Two Drum Bucket

● Automated Hoisting Systems

● Hot Metal Steel Mill Hoists - AC/DC



Common Features:

•          Conical rotor, Squirrel Cage, 1 hr. Rated, Class 'F', Insulated crane duty motor.

•          Electromechanical, Conical disc type, 100% failsafe maintenance free Brake, eliminates need of coil & thereby coil burning and down time problems.

•          Easily portable because of compact design and low weight

•          Wear-resistant, Heat-treated, Grade 80, Special alloy steel calibrated load chain.

•          A special conical friction clutch housed inside the gearbox, protects the hoist against overloading. It also works as Emergency limit stop and protects overhoisting and over lowering

•          Specially designed Chain guide enables Smooth, Jerkless, Free and Silent running of Chain over the Load wire rope sprocket

•          All Gears are made of Carbon / Alloy steel, high precision cut, hardened and tempered, and are mounted on antifriction bearings.

•          Hoist is supplied with a pendant push button station and a two mtrs. Long pendant cable. Additional cable lengths are available on request.

•          Hoist is supplied with a 3 mtrs. Long power supply cable. Extra length can be supplied on request.

•          Hoist is supplied with wire rope for three mtrs. Height of lift. Additional chain can be provided for higher height of lift, on request.



Special Feature:

  • Low headroom design.
  • Overload protection is optional.
  • The normal travelling speed is 20m/min, 12.5, 16, 25, 30, 20/6.5 or 20/5m/min is optional.
  • Hoist electrics cubicle including low voltage transformer.
  • Standard power supply: 380V/400V/415V/575V 50HZ, 230V/440V/460V/60HZ
  • Motor protection IP54 insulation class F.
  • Push button box with emergency button.
  • Hooks with safety latch.
  • Rope guide for use in aggressive environment.
  • Rubber buffers (for hoist with trolley).
  • Set of electrical diagrams.
  • Remote control and second brake system are optional.
  • The standard hook path is 6, 9, 12, 18, 24, 30 & 35 meters, and max hook path can reach 120 meters.

General Drawing or Sketch or Draft Drawing

 Custom Double Girder Electric Steel Wire Rope Hoists SH Type Motor Protection IP54



Model Lifting
Capacity
(t)
Lifting
Speed
(m/min)
Travelling
Speed
(m/min)
Rope
Reeving
Working
Duty
BO H W,A1,A2 Diameter
(mm)
Maximum
Wheel
Load
H6 H9 H12 H15 H18 H24 H30 H9
SH5BS 3.2 7/1.6 20/5 2/1 M4 900 560 800 1000 1200 1400 1600 1700 2200 160 0.9
349 424 500 574 648 700 1084
101 151 202 252 303 404 462
3.2 7/1.6 20/5 4/2 M4 900 560 1000 1200 1400 1600 1800     160 0.95
500 600 700 800 900
0 0 0 0 0
4.8 4.7/1.1 20/5 6/2 M4 900 560 1500 1800 2000 2200 2400     160 1.35
750 900 1000 1100 1200
0 0 0 0 0
5 3.5/0.8 20/5 4/1 M5 900 560 1000 1200 1400 1600 1800     160 1.5
422 483 544 605 666
156 234 312 390 468
6.3 3.5/0.8 20/5 4/1 M4 900 560 1000 1200 1400 1600 1800     160 1.75
422 483 544 605 666
156 234 312 390 468
SH6BS 5 7.6/1.8 20/5 2/1 M4 1000 660 1000 1100 1400 1600 1700 1800 2000 160 1.2
400 460 500 574 648 700 730
101 151 202 252 303 404 505
5 7.6/1.8 20/5 4/2 M4 1000 680 1200 1400 1600 1800 2000     160 1.4
500 600 700 800 900
0 0 0 0 0
7.5 5/1.2 20/5 6/2 M4 1000 680 1300 1500 1700 1900       200 2.125
  900 1000 1100
0 0 0 0
8 3.8/0.9 20/5 4/1 M5 1000 680 1000 1200 1400 1600 1700     200 2.25
422 483 583 655 675
156 234 233 291 350
10 3.8/0.9 20/5 4/1 M4 1000 680 1000 1200 1400 1600 1700     200 2.75
422 483 583 655 675
156 234 233 291 350
SH7BS 8 8/2 20/5 2/1 M4 1150 760 1100 1200 1400 1600 1700 1800 2000 200 2.1
492 512 583 655 675 667 709
116 175 233 291 350 466 582
8 8/2 20/5 4/2 M4 1150 760 1400 1600 1800 2000 2200 2400   200 2.3
700 800 900 1000 1100 1200
0 0 0 0 0 0
12 5.3/1.3 20/5 6/2 M4 1150 780 1600 1900 2200 2400 2600     250 3.3
800 950 1100 1200 1300
0 0 0 0 0
12.5 4/1 20/5 4/1 M5 1150 780 1400 1600 1800 2000 2200     250 3.5
642 713 784 855 926
116 174 233 291 349
16 4/1 20/5 4/1 M4 1150 780 1400 1600 1800 2000 2200     250 4.4
642 713 784 855 926
116 174 233 291 349
