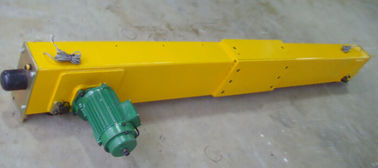

1 ~ 100T Electric Motorized Crane End Carriage Beam For Overhead Crane

Name: 1 ~ 100T Electric Motorized Crane End Carriage Beam For Overhead Crane
Brand: NANTE
SKU: END CARRIAGE
Price: 1 USD
Availability: InStock
Rating: 4.5 (114 reviews)

Large Image : 1 ~ 100T Electric Motorized Crane End Carriage Beam For Overhead Crane Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	NANTE
Certification:	ISO9001, CE, CCC
Model Number:	END CARRIAGE

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Packaging Details:	Seaworthy packing
Delivery Time:	Within 30 days
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	1,000,0pair/year

Contact Now

Detailed Product Description

Model Number::	HSB	Steel Structure::	Torsion-resistant Box Girder Profile
Inside Setting::	Reinforce Plate	Crane Wheel::	45# Steel(equal To AISI 1045)
Driving Motor::	Soft-starting Motor	Color::	RAL1004, Can Be Customized
High Light:	overhead crane end trucks , bridge crane end trucks

1 ~ 100T Electric Motorized Crane End Carriage Beam For Overhead Crane

Quick details:

Capacity: 16~22.5ton
Span: 5.5m~16.5m
Motor power: 1.1*2
Power supply: 3P, 380V, 50HZ
Speed: 19m/min, 20m/min

Electric Motorized End Beam for Overhead Crane, Manufacturer Bridge Crane/Gantry Crane End Truck End Carriage Customization, Electric End Carriage Steel Crane Wheels For Overhead Crane 1ton ~ 100ton.

1~100T crane trolley-end carriage
Independently driven.
for single girder & double girder.
Low repair rate.
Tough material, high safety.

Nante has successfully developed crane kits systems for all kinds of overhead cranes. We are committed to provide our quality service though operational excellence and technology improvement.

Specifications

1. Crane End Carriage of Single/Double Girder Crane
2. Wide range of capacity
3. Refined structure, efficient motor drive

A. Application

End carriage is applicable for wide range of cranes, such as workshop overhead bridge crane, gantry crane, etc. We are committed in providing our customers with quality and customized service.

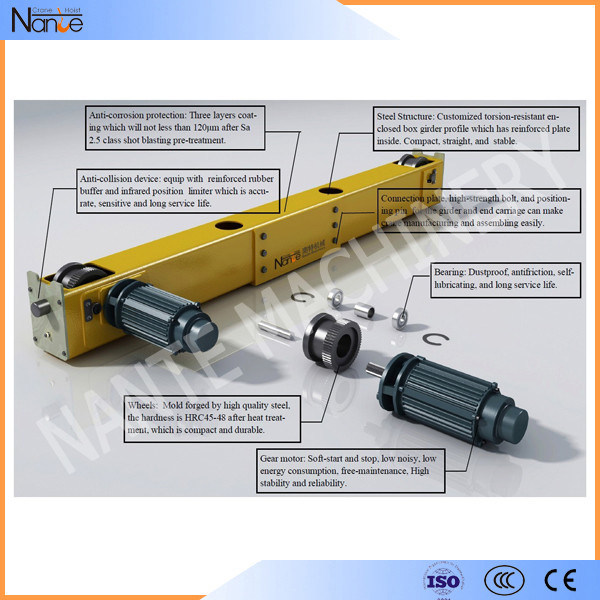

B. Design Feature

•High strength profile with reinforced plate inside

•45# steel wheel group, HRC45-48.

•Self-lubricating bearing

•Soft start motor from Taiwan brand.

•Modular design

C. Sketch Drawing

D. Technical Parameter

No.	Type	Suitable Crane	Travel Speed (m/min)	Power (KW)	Wheel Dia. OD (mm)	SI (mm)	S2 (mm)	W1 (mm)	W2 (mm)	B (mm)	H (mm)
1	L174-20A	lt2t/5.5m-11.5m	18	0.3x2	144	2000	1760	500	410	150	200
2	L174-25A	lt2t/12m-16.5m	18	0.3x2	144	2500	2260	500	410	150	200
3	L174-20B	3t/5.5m-11.5m	18	0.3x2	144	2000	1760	500	410	150	250
4	L174-25B	3t/12m-16.5m	18	0.4x2	144	2500	2260	500	410	150	250
5	L174-30	It2t3t/17m-22.5m	18	0.4x2	144	3000	2700	550	440	150	250
6	L174-35	lt2t/23m-25.5m	18	0.4x2	144	3500	3200	600	510	150	250
7	L200-20	5t/5.5m-11.5m	18	0.4x2	168	2000	1600	600	510	150	250
8	L200-25	5t/12m-16.5m	18	0.4x2	168	2500	2100	600	510	200	250
9	L200-30	5t/17m-22.5m	18	0.4x2	168	3000	2600	650	560	200	250
10	L200-35	3t/23m-25.5m	18	0.4x2	168	3500	3100	650	560	200	250
11	L240-20	10t/5.5m-11.5m	19	0.75x2	208	2000	1600	600	510	200	250
12	L240-25	10t/12m-16.5m	19	0.75x2	208	2500	2100	650	560	200	300
13	L240-30	10t/17m-22.5m	19	0.75x2	208	3000	2600	650	560	200	300
14	L240-35	10t/23m-25.5m	19	0.75x2	208	3500	3100	650	560	200	300
15	L268-25	16t/5.5-16.5m	20	1.1x2	238	2500	2060	700	600	200	300
16	L268-30	16t/17m-22.5m	20	1.1x2	238	3000	2560	750	650	200	300
17	L268-35	10t/23m-25.5m	20	1.1x2	238	3500	3060	700	600	200	300
18	L268-25P	20t/5.5m-16.5m	19	1.5x2	238	2500	2060	950	800	200	350
19	L268-30P	20t/17m-22.5m	19	1.5x2	238	3000	2560	950	800	200	350
