Crab Framed Electric Single Girder Overhead Cranes For General Engineering Application

Crab Framed Electric Single Girder Overhead Cranes For General Engineering Application

Crab Framed Electric Single Girder Overhead Cranes For General Engineering Application
Crab Framed Electric Single Girder Overhead Cranes For General Engineering Application Crab Framed Electric Single Girder Overhead Cranes For General Engineering Application Crab Framed Electric Single Girder Overhead Cranes For General Engineering Application Crab Framed Electric Single Girder Overhead Cranes For General Engineering Application

Large Image :  Crab Framed Electric Single Girder Overhead Cranes For General Engineering Application Get Best Price

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Nante
Certification: ISO9001,CE
Model Number: Single girder
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: N/A
Packaging Details: Naked
Delivery Time: Within 2 months
Payment Terms: L/C, T/T
Detailed Product Description
Color: Red/ Yellow Span: 22m
Capacity: 3T Lifting Height: 12m
Condition: New Protection: IP56
Brand: Nante Original: China
High Light:

manual overhead crane

,

overhead electric cranes

,

crab framed single girder overhead crane

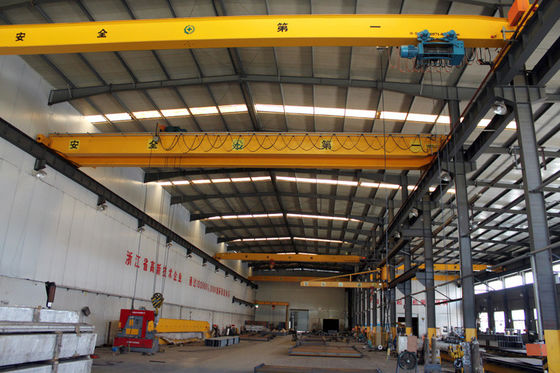

Crab Framed Electric Single Girder Overhead Cranes For General Engineering Application


Crab Framed Electric Hoist type Single Girder Overhead Bridge Cranes system with crab provide solution for materials handling even when production units or warehouses are comparatively small and low. To minimize the capital costs for modifications to buildings to provide extra space, we make use of the minimum of space for our crane systems. Using various fixing arrangements the single girder travelling cranes can be fitted individually to the existing space available. Favorable dimensions result in the optimal highest hook position.

Single beam overhead industrial crane is especially economical to meet lifting tasks within 20t duty. Time and manpower are greatly saved with a set of single beam EOT crane in workshop or other application suitable.


 Normally there is no maximum safety distance to the ceiling of the building for single girder cranes with a load capacity range up to 10 T. This makes it a master at saving space even in buildings with unfavorable dimensions with fewer restrictions. The crane girder is constructed from robust profiles. Using a comprehensive range of fixing arrangements the travelling cranes can be designed to fit the available space. All we need for the planning stage of the crane system are the clear dimensions of the building. We will then design the Crab Framed Electric Single Girder Overhead Cranes individually for you.

Single girder overhead crane with hoist are widely used in the following applications:

1. LIGHT DUTY Cranes for maintenance, warehouse and assembly operations.
2. MEDIUM DUTY Cranes for general engineering application and Machine shop.
3. HEAVY DUTY Cranes for Heavy machine shops, paper mills, Fabrication shop, etc.
4. EXTRA HEAVY DUTY Cranes for continuous operation in Steel mills and other Heavy Engineering purpose. Cranes for Outdoor duty is also designed specially.


Technical Parameters


      2T
  Span m 10.5 14 17.5 21 24.5
Speed Lifting Speed m/min 5/0.8
Trolley Speed 5.0/20
Bridge Speed 8/32
Motor Power Lifting Motor kW 3.2/0.45 3.2/0.45 3.2/0.45 3.2/0.45 3.2/0.45
Trolley Motor 0.64x1 0.64x1 0.64x1 0.64x1 0.64x1
Bridge Motor 0.37x2 0.37x2 0.37x2 0.37x2 0.37x2
Crane Power 4.58 4.58 4.58 4.58 4.58
Basic Data Max.Wheel Load KN 14.7 16 18 20.4 24.3
Wheel Dia.   125 125 125 125 125
Model of End Carriage   HSE125-15 HSE125-20 HSE125-25 HSE125-30 HSE125-35
Gear Model   SK0282-0.37 SK0282-0.37 SK0282-0.37 SK0282-0.37 SK0282-0.37
Crane Wheel Qty. Pcs 4 4 4 4 4
Crane Rail   30×50 30×50 30×50 30×50 30×50




Design features include:

DESIGN:
Compact dimensions, low weight, easy to operate and easy to maintain, modular design with direct
fits between components

STRUCTURE:
Bridge Girder, End carriages, Crab Frame manufactured from box plate design / Rolled Sections.
If required 100% radiography of all butt welding joints of bridge and end carriages can be provided.

MOTORS:
Nante Crane uses sturdy cylindrical/ conical rotor pole-changing motors with elegant continuous cast
aluminum sections, integrated safety brakes insulation class F, IP54 protection.

Variable Frequency Drives & Remote Controls:
We also offer Variable Frequency Drive in hoisting, cross travel,long travel for steples speed control
as an optional feature. We also provide radio remote control cranes for application in inaccessible and
hazardous areas.

Brakes
Failsafe magnetic or hydraulic brakes of 150% torque or more are fitted on shaft extensions. For heavy duty cranes a second brake can be mounted to ensure failsafe operation.

Controls
Pendant control from floor, master control switches,master controllers in the driver's cabin can be
provided.Radio remote control can be provided on request.

ELECTRICAL PANEL:
Modular design, covering a very wide operating range. The systems are designed for ease of installation and maintenance and reliable operation, with fuseless circuitry, ducted wiring and non screwed terminals.

PAINTING:
Every component & part is thoroughly scrubbed & painted with two coats of primer before assembly & two coats of synthetic enamel after testing.

LIMIT SWITCHES:
To prevent over hoisting & over lowering of hook.

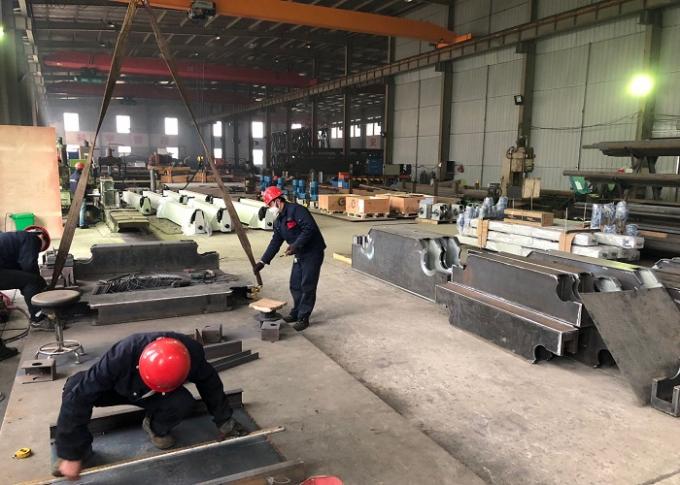

OUR FACTORY
