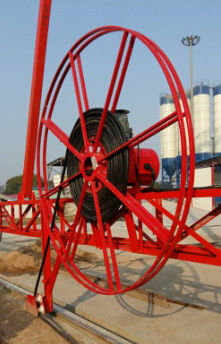

380V / 440V Vertical Crane Components Motorized Cable Reel System MCR Series

380V / 440V Vertical Crane Components Motorized Cable Reel System MCR Series

380V / 440V Vertical Crane Components Motorized Cable Reel System MCR Series
380V / 440V Vertical Crane Components Motorized Cable Reel System MCR Series 380V / 440V Vertical Crane Components Motorized Cable Reel System MCR Series 380V / 440V Vertical Crane Components Motorized Cable Reel System MCR Series 380V / 440V Vertical Crane Components Motorized Cable Reel System MCR Series

Large Image :  380V / 440V Vertical Crane Components Motorized Cable Reel System MCR Series Get Best Price

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Nante
Certification: ISO9001:2008
Model Number: CABLE Drum
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: N/A
Packaging Details: CARTON
Delivery Time: Based on client's needs
Payment Terms: L/C, T/T
Supply Ability: 1000 setss per Year
Detailed Product Description
Voltage: 380V/440V Max.current: 800A
Temperature:: -20℃~+45℃ Max.speed:: 20m/min
Protection Class:: IP65 Installation:: Vertical Installation
High Light:

bridge crane kits

,

parts of an overhead crane



380V / 440V Vertical Crane Components Motorized Cable Reel System MCR Series



Installation method

380V / 440V Vertical Crane Components Motorized Cable Reel System MCR Series 0


Working principle
When moving equipment such as a trolley or a moving device such as a car, pull the roll and release the cable. At this time, the flat scroll coil is wound on the mandrel and the spring stores energy. When the electrical equipment to return, the spring force, the drum in the opposite direction of rotation, synchronous winding cable.


Structural features
1, to flat scroll spring as a driving force, no power consumption, safe and reliable work.
2, the use of slip slip - carbon brush frame structure to transfer power, power supply continuous smooth.
3, set the reversible body, to avoid reversing the reel and break the spring.
4, simple structure, installation, commissioning, easy maintenance.


Main product model
1, DJ1 series: the use of chain drive, an increase of product plasticity, according to the user's requirements for the use of spring configuration and chain transmission ratio, the cable force appropriate.
2, DJ2 series: with a compact, small size, light weight, easy installation and so on. Widely used in electric flat car, mobile car amount, electric grab and other mobile electrical equipment.
3, DJ5 Series: The product is made of plastic shell, compact structure, belonging to the mini spring-type cable reel, mainly for the current below 10A, the moving distance of 10 meters, and the installation of small space occasions.
4, JT1 series: spring frame, reel and slip ring device split design, the cable reel is more stable, easy maintenance.
5, JT2 series: mainly used for current below 50A, moving distance in the range of 30 meters. The main features and structure are similar to DJ2



380V / 440V Vertical Crane Components Motorized Cable Reel System MCR Series 1380V / 440V Vertical Crane Components Motorized Cable Reel System MCR Series 2380V / 440V Vertical Crane Components Motorized Cable Reel System MCR Series 3380V / 440V Vertical Crane Components Motorized Cable Reel System MCR Series 4



The cable reel can be customized according to customer requirements
1. Power supply, voltage and color code
2. Motor brand, power and color code,such as : Siemens
3. Power: Such as MTU-110L and MTU-90L
4. According to the customer's requirements for the color of the cable drum, the paint is gray, red, yellow, etc.



ITEM / SIZE A(mm) B(mm) H1(mm) H2(mm) L1(mm) L2(mm) n-Φ
MCR-10 198 214 145 508 66 515 4-Φ12
MCR-20 221 280 175 588 55 580 4-Φ14
MCR-60 290 406 240 746 61 647 4-Φ18
MCR-90 318 451 245 845 112 790 4-Φ18
MCR-110 380 514 285 911 128 930 4-Φ22
MCR-150 424 568 300 1050 128 9801 4-Φ22
