3 T high perormance M5 NHA Low Headroom Hoist , Electric Wire Hoist For Factory

3 T high perormance M5 NHA Low Headroom Hoist , Electric Wire Hoist For Factory

Specifications

1. Low Headroom Electric Wire Rope Hoist For General Workshop Application 3 Ton
2. Usage: Material handling, metallurgy, etc


Low Headroom Electric Wire Rope Hoist For General Workshop Application 3 Ton,

CE Certified Monorail Steel Rope Hoist Hoisting Machine, Workstation Wire Rope Hoist NHA-XP, steel rope hoist, monorail hoist trolley.

Detailed Product Description

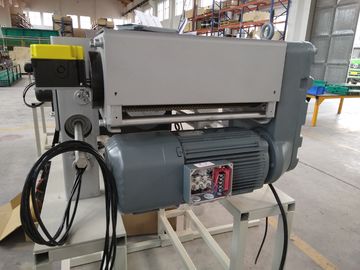

Low Headroom Electric Wire Rope Hoist is the newly developed type which is specific to the box type beam but not the traditional I beam. You can benefit from shock absorption and noise reduction. What’s more, the distance for the gauge can be adjusted. This products, by its newly unique design and great originality, have gained a good reputation among users in China and abroad.

1. Reducer
Third-class dead axel helica gear transmission structure is adopted,; gear and gear axel are made of heat treated alloy steel.

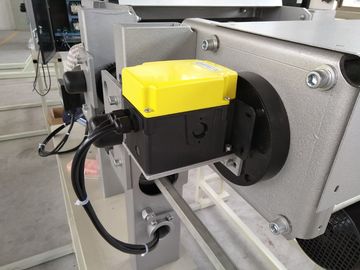

2. Control Box
It has device with up an down stroke protection of break off limiter and can cut off main circuit in an emergency,which ensures safe operation of electric block.Electric elements are of long service life and operational safety.

3.Steel Wire Rope
It uses GB1102-74(6*37+1) hoist steel wire rope which is durable in use.

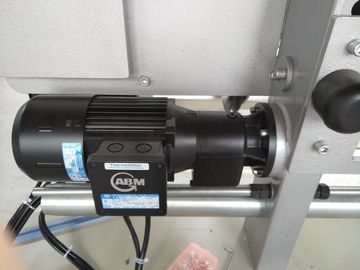

4. Conical Motor
The hoist motor uses conical motors of relatively stronger starting torque to brake asynchronous motor and does not need extra arrester. The motor s load duration factor is 25%.

5. Button Switch
Its hand-operated, easy to handle,and has two modes of cord operation and cordless remote control

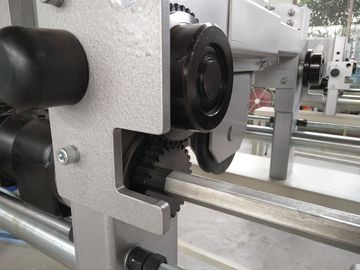

6.Gear

By adopting Japanese technology, they are innovated symmetrical arrayed high-speed synchronous gears, and are made from international standard gear steel.

7.Chain

Adopts high strength chain and high precision welding technology,meet ISO3077-1984 international standard;fits for gusty overload work conditions;takes your hands a better feeling multi-angle operation.

8.Hook

Made of high-class alloy steel,it has high strength and high security; by using new design, weight will never escape.

Application

Used in the factory, mine, dock, warehouse, temperature-20 ~ + 40 °C, relative humidity under 85%.

Design Feature

(1) using international brand motor can be chosen for high working level up to M6, lower noise
(2) applyng to factories, freight yards, terminals, power plants, construction sites and other workplace
(3) Particularly suitable for the plant with restrict height, maximize the effective lifting height

General Drawing

Technical Data
