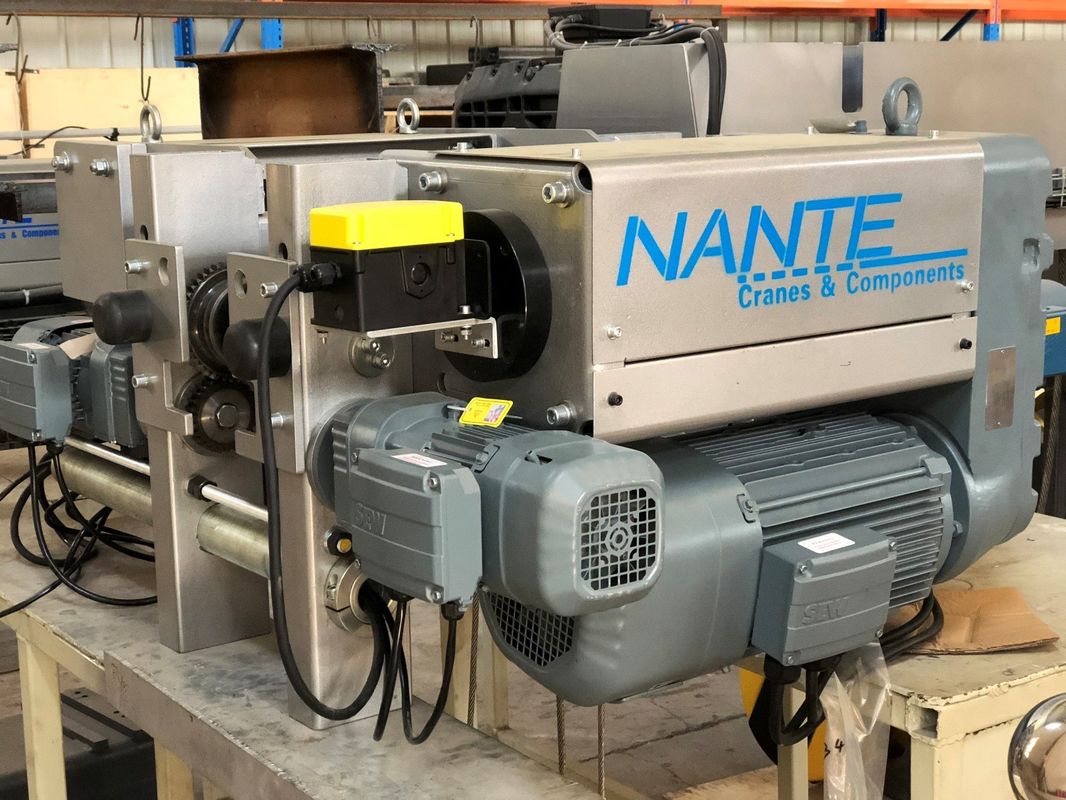

5T - 6m Electric Wire Rope Hoist With Control Panel

5T - 6m Electric Wire Rope Hoist With Control Panel

5T - 6m Electric Wire Rope Hoist With Control Panel
5T - 6m Electric Wire Rope Hoist With Control Panel

Large Image :  5T - 6m Electric Wire Rope Hoist With Control Panel Get Best Price

Product Details:
Place of Origin: China
Brand Name: Nante
Certification: ISO9001
Model Number: NHA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: N/A
Packaging Details: Plywood package
Delivery Time: Within 50 days
Payment Terms: T/T, L/C
Detailed Product Description
Color: Yellow Capacity: 5T
Lifting Height: 6m Work Duty: M5
Certification: ISO, CE, CCC Driving System: Three-in-one
Name: 5T-6m Low Headroom Electric Wire Rope Hoist With Top Brand Control Panel
High Light:

ultra low headroom hoist

,

low headroom hoist and trolley





5T-6m Low Headroom Electric Wire Rope Hoist with top brand control panel

CE Certified Monorail Steel Rope Hoist Hoisting Machine, Workstation Wire Rope Hoist SHA-XD, steel rope hoist, monorail hoist trolley.



Detail Product Description



1. Reducer

Third-class dead axel helica gear transmission structure is adopted,; gear and gear axel are made of heat treated alloy steel.

2. Control Box
It has device with up an down stroke protection of break off limiter and can cut off main circuit in an emergency,which ensures safe operation of electric block.Electric elements are of long service life and operational safety.

3.Steel Wire Rope
It uses GB1102-74(6*37+1) hoist steel wire rope which is durable in use.

4. Conical Motor
The hoist motor uses conical motors of relatively stronger starting torque to brake asynchronous motor and does not need extra arrester. The motor s load duration factor is 25%.

5. Button Switch
Its hand-operated, easy to handle,and has two modes of cord operation and cordless remote control

6.Gear

By adopting Japanese technology, they are innovated symmetrical arrayed high-speed synchronous gears, and are made from international standard gear steel.

7.Chain

Adopts high strength chain and high precision welding technology,meet ISO3077-1984 international standard;fits for gusty overload work conditions;takes your hands a better feeling multi-angle operation.

8.Hook

Made of high-class alloy steel,it has high strength and high security; by using new design, weight will never escape.



Application



Used in the factory, mine, dock, warehouse, temperature-20 ~ + 40 °C, relative humidity under 85%.



Design Feature



Low Headroom Electric Wire Rope Hoist is the newly developed type which is specific to the box type beam but not the traditional I beam. You can benefit from shock absorption and noise reduction. What’s more, the distance for the gauge can be adjusted. This products, by its newly unique design and great originality, have gained a good reputation among users in China and abroad.



(1) imported motor can be chosen for high working level up to M5, low noise
(2) applies to factories, freight yards, terminals, power plants, construction sites and other places
(3) Particularly suitable for the plant with restrict height, maximize the effective lifting height



General Drawing

5T - 6m Electric Wire Rope Hoist With Control Panel 0


Technical Data



Model Lifting
Capacity
(t)
Lifting
Speed
(m/min)
Travelling
Speed
(m/min)
Working
Duty
Fall Lifting
Motor
Power(kw)


C A1 A2 B Hmin
SH A2XD 1.6 8.0/1.2 15.8/5 M5 2/1 2.5/0.37 100-400 420 320 590 570
3.2 4.0/0.6 15.8/5 M5 4/1 2.5/0.37 100-400 420 320 436 500
SH A3XD 2.5 8.0/1.2 15.8/5 M5 2/1 4.9/0.8 100-450 500 400 600 720
5 4.0/0.6 15.8/5 M5 4/1 4.9/0.8 100-450 500 400 600 650
SH A4XD 6.3 10/1,6 15.6/5 M4 2/1 12.5/2.0 100-500 570 500 700 950
12.5 5.0/0.8 15.6/5 M4 4/1 12.5/2.0 100-500 570 500 700 800



Model S L Self
Weight
(kg)
6H 9H 12H 18H
SH A2XD 0.0198H 690 810 925 1143
0.0198H 925 1142 1381
SH A3XD 0.0212H 720 845 972 1226
0.0212H 972 1153 1392
SH A4XD 0.0192H 761 881 993 1224
0.0192H 993 1224 1455
