Product Details:
Payment & Shipping Terms:
|
Model Number:: | EC | Steel Structure:: | Torsion-resistant Box Girder Profile |
---|---|---|---|
Inside Setting:: | Reinforce Plate | Crane Wheel:: | 45# Steel(equal To AISI 1045) |
Bearing:: | HRB | Driving Motor:: | Soft-starting Motor |
Pre-treatment:: | Pre-treatment:: Shot-blasting | Color:: | RAL1004, Can Be Customized |
High Light: | Hoist End Beam,overhead crane end trucks |

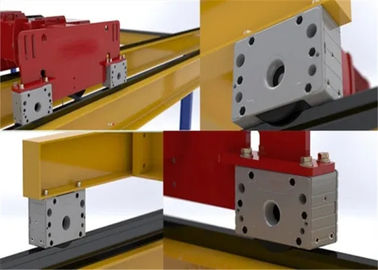

Overhead Crane Self-Designed End Carriage/End Truck
Quick details:
Electric Motorized End Beam for Overhead Crane, Manufacturer Bridge Crane/Gantry Crane End Truck End Carriage Customization, Electric End Carriage Steel Crane Wheels For Overhead Crane 1ton ~ 100ton.
Nante has successfully developed crane kits systems for all kinds of overhead cranes. We are committed to provide our quality service though operational excellence and technology improvement.
A. Application
End carriage is applicable for wide range of cranes, such as workshop overhead bridge crane, gantry crane, etc. We are committed in providing our customers with quality and customized service.
B. Design Feature
•High strength profile with reinforced plate inside
•45# steel wheel group, HRC45-48.
•Self-lubricating bearing
•Soft start motor from Taiwan brand.
•Modular design
C. Sketch Drawing
D. Technical Parameter
No. |
Type |
Suitable Crane |
Travel Speed (m/min) |
Power (KW) |
Wheel Dia. OD (mm) |
SI (mm) |
S2 (mm) |
W1 (mm) |
W2 (mm) |
B (mm) |
H (mm) |
1 |
L174-20A |
lt2t/5.5m-11.5m |
18 |
0.3x2 |
144 |
2000 |
1760 |
500 |
410 |
150 |
200 |
2 |
L174-25A |
lt2t/12m-16.5m |
18 |
0.3x2 |
144 |
2500 |
2260 |
500 |
410 |
150 |
200 |
3 |
L174-20B |
3t/5.5m-11.5m |
18 |
0.3x2 |
144 |
2000 |
1760 |
500 |
410 |
150 |
250 |
4 |
L174-25B |
3t/12m-16.5m |
18 |
0.4x2 |
144 |
2500 |
2260 |
500 |
410 |
150 |
250 |
5 |
L174-30 |
It2t3t/17m-22.5m |
18 |
0.4x2 |
144 |
3000 |
2700 |
550 |
440 |
150 |
250 |
6 |
L174-35 |
lt2t/23m-25.5m |
18 |
0.4x2 |
144 |
3500 |
3200 |
600 |
510 |
150 |
250 |
7 |
L200-20 |
5t/5.5m-11.5m |
18 |
0.4x2 |
168 |
2000 |
1600 |
600 |
510 |
150 |
250 |
8 |
L200-25 |
5t/12m-16.5m |
18 |
0.4x2 |
168 |
2500 |
2100 |
600 |
510 |
200 |
250 |
9 |
L200-30 |
5t/17m-22.5m |
18 |
0.4x2 |
168 |
3000 |
2600 |
650 |
560 |
200 |
250 |
10 |
L200-35 |
3t/23m-25.5m |
18 |
0.4x2 |
168 |
3500 |
3100 |
650 |
560 |
200 |
250 |
11 |
L240-20 |
10t/5.5m-11.5m |
19 |
0.75x2 |
208 |
2000 |
1600 |
600 |
510 |
200 |
250 |
12 |
L240-25 |
10t/12m-16.5m |
19 |
0.75x2 |
208 |
2500 |
2100 |
650 |
560 |
200 |
300 |
13 |
L240-30 |
10t/17m-22.5m |
19 |
0.75x2 |
208 |
3000 |
2600 |
650 |
560 |
200 |
300 |
14 |
L240-35 |
10t/23m-25.5m |
19 |
0.75x2 |
208 |
3500 |
3100 |
650 |
560 |
200 |
300 |
15 |
L268-25 |
16t/5.5-16.5m |
20 |
1.1x2 |
238 |
2500 |
2060 |
700 |
600 |
200 |
300 |
16 |
L268-30 |
16t/17m-22.5m |
20 |
1.1x2 |
238 |
3000 |
2560 |
750 |
650 |
200 |
300 |
17 |
L268-35 |
10t/23m-25.5m |
20 |
1.1x2 |
238 |
3500 |
3060 |
700 |
600 |
200 |
300 |
18 |
L268-25P |
20t/5.5m-16.5m |
19 |
1.5x2 |
238 |
2500 |
2060 |
950 |
800 |
200 |
350 |
19 |
L268-30P |
20t/17m-22.5m |
19 |
1.5x2 |
238 |
3000 |
2560 |
950 |
800 |
200 |
350 |
