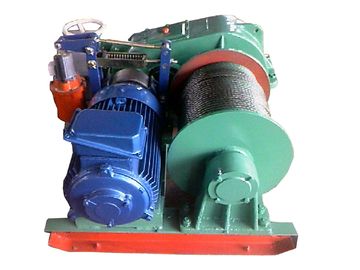

Construction Electric Hoist Winch With Compact / Light Weight Material Handling

Electric Hoists Winches with Compact and Light Weight Material Handling

The winch is a equipment which use wire rope or chain which is install in the drum to lifting up the cargos from the ground. The winch lifting direction can be vertical, horizontal, and oblique pulling.
The winch can be manual winch, electrical winch, and hydraulic winch base on the different power.
The winch can be crane winch, construction winch, tower winch, mining winch etc which is base on the different application. And this session is focus on the crane winch.

Nante manufactures and exports superior quality lifting winch for its valuable clients based at several parts of the world. Electric hoisting winding machine is a device consisting of a horizontal cylinder turned back by a crank on which a cable or a rope wind is bound. These are compact and light weight material handling and lifting equipments, suitable for installation on cranes, davits and s.

Applications:

• 1.    Cranes
• 2.    Davits
• 3.    s
• 4.    Marine
• 5.    Punching driver
• 6.    Construction Site and Port

Features:

• Compact and low head room Design, Light Self-weight
• Can customized design base on different application and duty group.
• The Gear box and motor is connected by flange, high transmission efficiency
• High performance motor, ED can achieve to 60%, and IP class can achieve IP66, and Insulation class can achieve H
• The motor have heat protection function. and have Encoder for over speed and Synchronization control
• Can have dual brake design for high duty group and high safety demand.
• The T series hook is high grade material, compact design, low self-weight, and follow DIN standard.
• Use high strength wire rope, max. force is 2160N/mm2, galvanized coating and free-lubrication.
• 2 reeving design, the lifting point always in the centre.
• The control panel enclosure is IP55, and wiring is base on IEC standard.
• . User inverter control for lifting and cross travel, smooth and low energy consumption.
• PLC programming is optional.
• Have a systemic safety device for the winch, like Overload limited switch, double positioning limited switch, cross limited switch, phase protection relay, over-current protection device, etc.

Main Components:

Gear box:

• Heavy Duty Design
• Compact design, and light self weight.
• Hardened gears, high stability
• Modular design, connected with motor by flange, easy for assembling.
• Good sealing performance

Motor with Electromagnetic brake:

• IEC Design Standard
• High efficiency and energy saving, ED can achieve S3-60%
• The default IP class is IP55, and customized to IP66.
• The default Insulation class is F, and customized to H.
• Include Manual Release bar
• Include Overheat protection
• Include Electromagnetic brake which is safety, smooth and fast performance.
• Encoder is optional, have the function of over speed protection and Synchronization control

Hydraulic Thruster Brake:

• brake torque is adjustable
• High stability and brake smooth.
• Have Manual Release function.
• Have the brake pad wear out limit switch.

Drum:

• Standard Rope groove design
• Use Q355B Roll plate
• Easy for disassembling.
• Excellent Processing Technology Guarantee concentricity of the drum.

Rope Guider:

• New Patented Design
• Easy for Installation.
• The diameter can be small adjustment.
• Rolling running can protect the drum.

Hook Block & Wire rope:

• Compact design, low self weight.
• Use T Series hook block follow DIN standard.
• The T series hook is high grade material, compact design, low self-weight, and follow DIN standard.
• 2 reeving design, the lifting point always in the centre.
• Have the mechanism which protect the rope disengaged from the groove.
• Use high strength wire rope, max. force is 2160N/mm2, galvanized coating and free-lubrication.

Control Panel:

• The control panel enclosure is assembled by modular stamping steel, which is high strength, and achieve IP55.
• The enclosure high quality Spray painting which can be used outdoor.
• All electrical device, like MCB, Contact, Relay is all Schneider brand.
• Include two fan which is for fresh air in and hot air out
• Terminal is base on DIN standard.
• Inverter control for lifting and cross travel, smooth and low energy consumption.
• The Inverter brand can be Schneider, Yaskawa, and Delta.
• Use Stainless steel resistor, small volume and Fast heat dissipation.
• Follow IEC Standard.

Technical Data

General Drawing or Sketch or Draft Drawing

Installation:
