Critical Lift Custom Foot Mounted Twin Hook Wire Rope Hoists SH Fixed

Critical Lift Custom Foot Mounted Twin Hook Wire Rope Hoists SH Fixed

Critical Lift Custom Foot Mounted Twin Hook Wire Rope Hoists SH Fixed
Critical Lift Custom Foot Mounted Twin Hook Wire Rope Hoists SH Fixed Critical Lift Custom Foot Mounted Twin Hook Wire Rope Hoists SH Fixed

Large Image :  Critical Lift Custom Foot Mounted Twin Hook Wire Rope Hoists SH Fixed Get Best Price

Product Details:
Place of Origin: Zhejiang, China
Model Number: SH
Payment & Shipping Terms:
Price: N/A
Packaging Details: Container packing
Delivery Time: Based on client's needs
Supply Ability: 100000 Sets per Year
Detailed Product Description
High Light:

wire rope hoists


portable crane hoist

Critical Lift Custom Foot Mounted Twin Hook Wire Rope Hoists SH Fixed


SH stationary electric wire rope hoist with quadrate simpler European design has its particular advantage for compact quadrate structure and internal configuration. The planetary gear reducer is adopted to ensure high transmission efficiency. It is characterized by low noise, compact structure, omitting the intermediate shaft. The square appearance is easier to install and fix. In addition, the lifting hook is designed to prevent accidental slippage; Motor has the thermal protection device, which will automatically cut off to prevent damage when the temperature is too high.


With the ideal design, we can ensure high safety as well as working efficiency. Load limit protection device is optional to avoid overload-induced adverse consequences.



1) Steel rope electric hoist, newest design with quadrate outline, modularized

construction, and good unitized capability

2) The fundamental mode change combine is very convenient and multiform

3) The special drive composition method is very stationary which saves the usual long

transmission shaft

4) The reducer use plant speed-down drive is highly effective, low noise and long


5) Unique column rotor-taper breaking wheel motor with disk is low noise and reliable

6) With the advanced technology from overseas, the guide rope unit is very reliable

and safe

7) High precision and super mechanical spin limit

8) High quality electric control component with low malfunction

        9) The products from 400kg to 50MT, complying with the international standard

A wire rope hoist is a hoist that utilizes wire rope as the lifting medium. It is often powered electrically or pneumatically. This lifting device is made up of a rope storage drum, motor(s), gear box and braking system, and is suspended from a monorail or bridge beam(s) by means of a trolley. It may also be stationary mounted.

A crane is a machine used for lifting and lowering a load, and moving it horizontally. A crane's drives may be manual, powered or a combination of both. Cranes are typically used when there is insufficient (or intermittent) flow volume such that the use of a conveyor cannot be justified. They provide more flexibility in movement than conveyors, and less flexibility in movement than industrial trucks. Loads handled by cranes are more varied with respect to their shape and weight than those handled by a conveyor. Most cranes utilize hoists for vertical movement, although manipulators can be used if precise positioning of the load is required.

Many different types of cranes are used for material handling applications. These include overhead cranes as well as cherry picker type boom lifts, mobile and self-propelled cranes, straddle and counterbalanced (cantilevered) cranes. Portable and mobile floor cranes can be equipped with fixed or telescopic booms as well as mast rotation when equipped with outriggers. Lifting can be performed with the boom itself or a winch operated cable lift.

Special Feature:

•          Versatile applications thanks to variable rope lead-offs.

•          Flexible mounting arrangements due to various connection variants.

•          Ideal for refurbishment or modernization.

•          One rope guide for all rope lead-off variants.

•          Optimum utilization of space thanks to compact design.

•          High availability thanks to a low maintenance requirement.

•          Fast handling thanks to high hoists speeds.

•          Low-vibration, quite-running motor.

•          Fast acting brake.

•          Gearbox lubricated for life.

•          Protective rope guide.

•          Modular electrical equipment.

•          Precision geared limit switch.

•          Overload protection.

•          Control via cable connection or by radio.

•          Available with 2/1, 4/1 or 4/2 reeving.

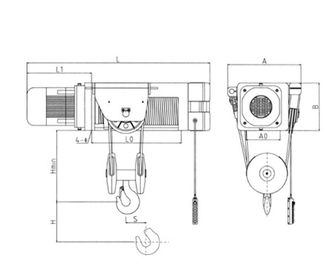

General Drawing or Sketch or Draft Drawing

  Critical Lift Custom Foot Mounted Twin Hook Wire Rope Hoists SH Fixed 0



Model Lifting
Dimension L A AO B Hmin L1 Wheel
6m 9m 12m 15m
SH2-4/1A 1 M4 1.1
L 678 813 948 1083 410 192 244 285 281 13
LO 358 493 628 763
S 66 94 132 165
SH3-4/1A 2 M4 1.5
L 1080 1274 1468 1662 430 194 244 310 390 18
LO 518 712 906 1100
S 96 144 192 240
SH4-4/1A 4 M4 3
L 1240 1449 1657 1866 505 245 300 425 462 18
LO 597 806 1014 1223
S 105 157 209 261
SH5-41A 6.3 M4 4.5
L 1378 1597 1815 2033 550 280 335 570 550 18
LO 632 851 1069 1287
S 110 164 219 273
SH6-4/1A 10 M4 7.5
L 1464 1693 1922 2151 610 309 370 574 550 22
LO 688 917 1146 1375
S 118 177 236 295
SH7-4/1A 16 M4 13
L 1706 1939 2172 2405 731 350 440 640 725 26
LO 738 971 1204 1473
S 117 175 233 292
