Product Details:
Payment & Shipping Terms:
|
| Color: | Yellow.red | Capacity: | 10T |
|---|---|---|---|
| Lifting Height: | 9m | Span: | 1~20m |
| Brand: | Nante | Material: | Q235B |
| End Carriage: | HSE250-30 | Motor: | SK2282-0.75kw |
| High Light: | design overhead crane,overhead electric cranes,light duty overhead travelling crane |
||
Light duty electric Single girder overhead cranes travelling crane with 10 T load capacity
Describe

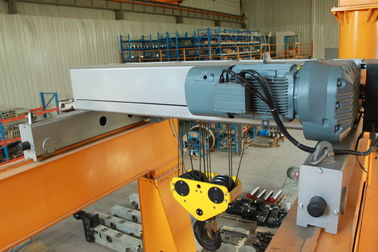

LD European type Single girder electric hoist overhead bridge crane cranes provide solution for materials handling even when production units or warehouses are comparatively small and low.
To minimize the capital costs for buildings modifications to provide extra space, we utilize the minimum of space for our crane systems.
Using various fixing arrangements the single girder travelling cranes can be fitted individually to the existing space available. Favorable dimensions result in the optimal highest hook position.
Single girder overhead crane with hoist are widely used in the following applications:
Technical Parameters
| 10T | |||||||
| Span | m | 10.5 | 14 | 17.5 | 21 | 24.5 | |
| Speed | Lifting Speed | m/min | 5/0.8 | ||||
| Trolley Speed | 5.0/20 | ||||||
| Bridge Speed | 8/32 | ||||||
| Motor Power | Lifting Motor | kW | 9.5/1.5 | 9.5/1.5 | 9.5/1.5 | 9.5/1.5 | 9.5/1.5 |
| Trolley Motor | 0.96x1 | 0.96x1 | 0.96x1 | 0.96x1 | 0.96x1 | ||
| Bridge Motor | 0.75x2 | 1.1x2 | 1.1x2 | 1.1x2 | 1.1x2 | ||
| Crane Power | 11.96 | 12.66 | 12.66 | 12.66 | 12.66 | ||
| Basic Data | Max.Wheel Load | KN | 58.7 | 61.4 | 64.7 | 68.6 | 74.5 |
| Wheel Dia. | 200 | 200 | 200 | 250 | 250 | ||
| Model of End Carriage | HSE200-15 | HSE200-20 | HSE200-25 | HSE250-30 | HSE250-35 | ||
| Gear Model | SK2282-0.75 | SK2282-1.1 | SK2282-1.1 | SK2282-1.1 | SK2282-1.1 | ||
| Crane Wheel Qty. | Pcs | 4 | 4 | 4 | 4 | 4 | |
| Crane Rail | 40×60 | 40×60 | 40×60 | 40×70 | 40×70 | ||
Design features include:
STRUCTURE:

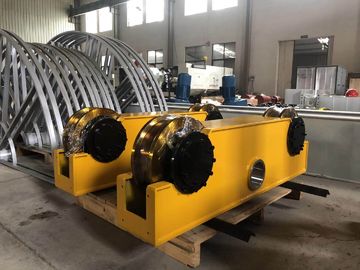

Bridge Girder, End carriages, Crab Frame manufactured from box plate design / Rolled Sections. If required 100% radiography of all butt welding joints of bridge and end carriages can be provided.
MOTORS:
Nante Crane uses sturdy cylindrical/ conical rotor pole-changing motors with elegant continuous cast aluminum sections, integrated safety brakes insulation class F, IP54 protection.
Variable Frequency Drives & Remote Controls:
We also offer Variable Frequency Drive in hoisting, cross travel, long travel for stepless speed control as an optional feature. We also provide radio remote control cranes for application in inaccessible and hazardous areas.
BRAKES:
Failsafe magnetic or hydraulic brakes of 150% torque or more are fitted on shaft extensions. For heavy duty cranes a second brake can be mounted to ensure failsafe operation.
CONTROLS:
Pendant control from floor, master control switches, master controllers in the driver's cabin can be provided. Radio remote control can be provided on request.

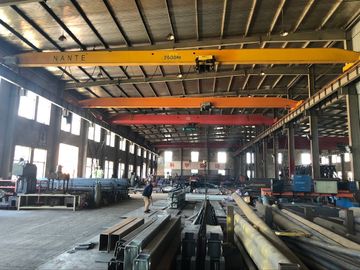

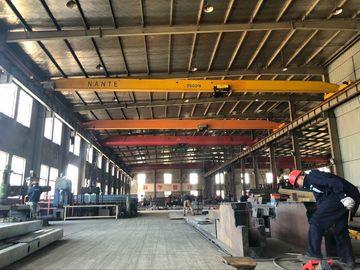

OUR FACTORY
