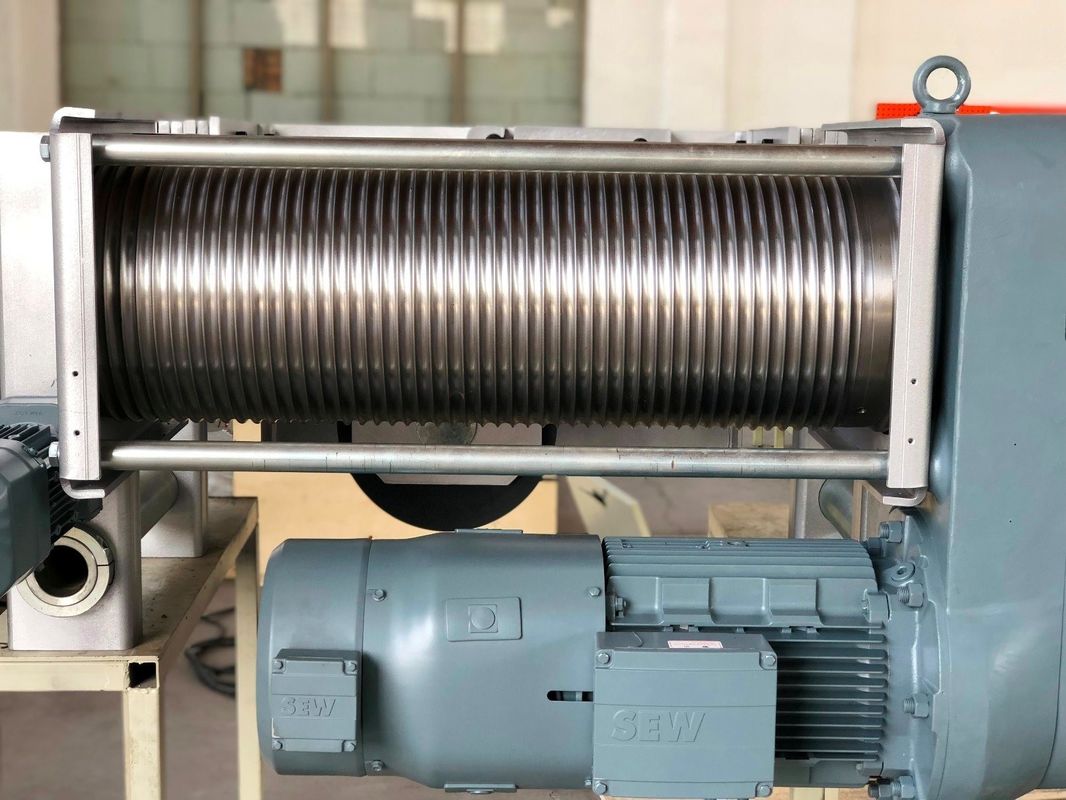

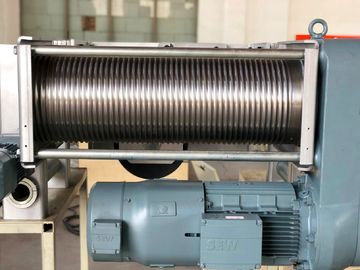

Electric Travel Steel Wire Rope Low Headroom Hoist

Electric Travel Steel Wire Rope Low Headroom Hoist

Electric Travel Steel Wire Rope Low Headroom Hoist
Electric Travel Steel Wire Rope Low Headroom Hoist

Large Image :  Electric Travel Steel Wire Rope Low Headroom Hoist Get Best Price

Product Details:
Place of Origin: China
Brand Name: Nante
Certification: ISO
Model Number: NHA
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: N/A
Packaging Details: Container Packing
Delivery Time: within 50 days
Payment Terms: TT
Supply Ability: 500 Pcs per year
Detailed Product Description
Type: Wire Rope Hoist Lift Speed: 2~8m/min
Maximum Lifting Height: >20m Transport Package: Container Packing
Specification: Lifting Height: 6~12m HS Code: 8431390000
High Light:

low headroom electric hoist

,

low headroom travel hoist

,

Low Headroom Wire Rope Hoist

Electric Wire Rope Hoist Low Headroom Hoist Travel Hoist with Steel Wire Rope



Low Headroom Electric Wire Rope Hoist is the newly developed type which is specific to the box type beam as well as I beam track, which can greatly benefited from shock absorption and noise reduction. What's more, the distance for the gauge can be adjusted. Our series hoisting products have been exported to almost 50 countries and regions, including Europe, USA, Australia and Southeast Asia, etc; And our products, by its newly unique design and super quality, have gained a good reputation among users in China and abroad.

1. Reducer
Third-class dead axel helica gear transmission structure is adopted,; Gear and gear axel are made of heat treated alloy steel; Case and case cover with precise assembly and good seal are made of quality cast iron. The reducer is independent, so its easy to load and unload it.
2. Control Box
It has device with up an down stroke protection of break off limiter and can cut off main circuit in an emergency, which ensures safe operation of electric block. Electric elements are of long service life and operational safety.
3. Steel Wire Rope
It uses GB1102-74(6*37+1) hoist steel wire rope which is durable in use.
4. Conical Motor
The hoist motor uses conical motors of relatively stronger starting torque to brake asynchronous motor and does not need extra arrester. The motor s load duration factor is 25%; The motor uses B frade and F grade insulation and its grade of protection isIP44/IP54.
5. Button Switch
Its hand-operated, easy to handle, and has two modes of cord operation and cordless remote control
6. Gear
By adopting Japanese technology, they are innovated symmetrical arrayed high -speed synchronous gears, and are made from international standard gear steel. Compared with common gears, they are more wearable and steadier, and more laborsaving.
7. Chain
Adopts high strength chain and high precision welding technology, meet ISO3077-1984 international standard; Fits for gusty overload work conditions; Takes your hands a better feeling multi-angle operation.
8. Hook
Made of high-class alloy steel, it has high strength and high security; By using new design, weight will never escape.
9. Components
Main components are all made of high-class alloy steel, with high precision and security.
10. Framework
Slight design and more beautiful; with less weight and smaller work area.
11. Plastic Plating
By adopting advanced plastic plating technology inside and outside, it looks like a new one after years of operation.
12. Encloser
Made of high-classed steel, more firmly and dexterous.





Technical Data



Capacity
(t)
Lifting Height
(m)
Lifting Speed
(m/min)
Lifting Power
(KW)
Travel Speed
(m/min)
Travel Power
(KW)
Work Duty - Lifting
FEM/ISO
H
(mm)
C
(mm)
Rail Gauge
B(mm)
2 6/9/12/15/18 5/0.8 3.3/0.5 5/20 0.37 3M M6 210 556 150-300
3.2 6/9/12/15/18 5/0.8 3.3/0.5 5/20 0.37 2M M5 210 556 150-300
5 6/9/12/15/18 5/0.8 6.1/1 5/20 0.37 2M M5 260 596 200-350
6.3 6/9/12/15/18 5/0.8 6.1/1 5/20 0.37 1Am M4 260 596 200-350
8 6/9/12/15/18 5/0.8 9.5/1.5 5/20 0.55 3M M6 325 750 200-410
10 6/9/12/15/18 5/0.8 9.5/1.5 5/20 0.55 2M M5 325 750 200-410
12.5 6/9/12/15/18 5/0.8 12.5/2 5/20 0.55 1Am M4 325 750 200-410
16 6/9/12/15/18 4/0.6 15/2.5 5/20 0.55×2 2M M5 400 920 300-450
20 6/9/12/15/18 4/0.6 15/2.5 5/20 0.55×2 1Am M4 400 920 350-400





Drawing

Electric Travel Steel Wire Rope Low Headroom Hoist 0
