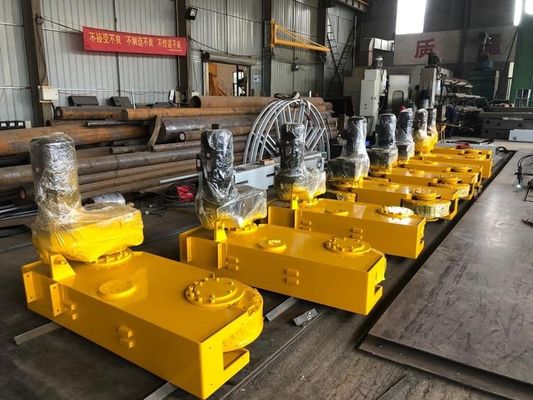

HSE series Hollow Shaft End Carriage Gantry Crane / Bridge Crane End Trucks

HSE series Hollow Shaft End Carriage Gantry Crane / Bridge Crane End Trucks

HSE series Hollow Shaft End Carriage Gantry Crane / Bridge Crane End Trucks
HSE series Hollow Shaft End Carriage Gantry Crane / Bridge Crane End Trucks HSE series Hollow Shaft End Carriage Gantry Crane / Bridge Crane End Trucks

Large Image :  HSE series Hollow Shaft End Carriage Gantry Crane / Bridge Crane End Trucks Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: NANTE
Certification: ISO9001, CE, CCC
Model Number: END CARRIAGE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 1000-3000
Packaging Details: Seaworthy packing
Delivery Time: Within 30 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 1,000,0pair/year
Detailed Product Description
Brand Name:: Nante-End Carriage Model Number:: HSE
Condition: New Motor: Nord/SEW
Brand: NANTE Original: China
High Light:

Hoist End Beam

,

overhead crane end trucks

HSE series Gantry Crane / Bridge Crane End Trucks 1 ton - 100 ton

Specifications



1. Overhead Crane Self-Designed End Truck End Carriage
2. For overhead crane, gantry crane




Overhead Crane Self-Designed End Carriage/End Truck, Electric End Carriage Steel Crane Wheels For Overhead Crane 1ton ~ 100ton.



  • 1~100T crane trolley-end carriage
  • Independently driven.
  • for single girder & double girder.
  • Low repair rate.
  • Tough material, high safety.



Nante has successfully developed crane kits systems for all kinds of overhead cranes. We are committed to provide our quality service though operational excellence and technology improvement.



A wide range of Crane End Carriage is available for customers’ choice. They are designed for single girder crane, double girder crane range from 1~50ton(standard), other capacity can be customized.

With the backup of high quality manufacturing facilities and solid technological strength, we have been pursuing for nearly two decades the service principle of “quality first”, providing qualified goods for customers in South America, South Asia, Europe, Middle East, etc,



Application



End carriage is applicable for wide range of cranes, such as workshop overhead bridge crane, gantry crane, etc. We are committed in providing our customers with quality and customized service.



Design Feature



• High strength profile with reinforced plate inside

• 45# steel wheel group, HRC45-48.

• Self-lubricating bearing

• Soft start motor from Taiwan brand.

• Modular design



General Drawing

Yellow Crane End Carriage 3 P , 380 V , 50 HZ With CE / CCC

D. Technical Parameter



No.

Type

Suitable Crane

Travel Speed (m/min)

Power

(KW)

Wheel Dia.

OD

(mm)

SI

(mm)

S2

(mm

)

W1

(mm)

W2

(mm)

B

(mm)

H

(mm)

1

HSE-125

lt2t/5.5m-11.5m

18

0.3x2

144

2000

1760

500

410

150

200

2

HSE-125

lt2t/12m-16.5m

18

0.3x2

144

2500

2260

500

410

150

200

3

HSE-125

3t/5.5m-11.5m

18

0.3x2

144

2000

1760

500

410

150

250

4

HSE-125

3t/12m-16.5m

18

0.4x2

144

2500

2260

500

410

150

250

5

HSE-160

It2t3t/17m-22.5m

18

0.4x2

144

3000

2700

550

440

150

250

6

HSE-160

lt2t/23m-25.5m

18

0.4x2

144

3500

3200

600

510

150

250

7

HSE-160

5t/5.5m-11.5m

18

0.4x2

168

2000

1600

600

510

150

250

8

HSE-160

5t/12m-16.5m

18

0.4x2

168

2500

2100

600

510

200

250

9

HSE-200

5t/17m-22.5m

18

0.4x2

168

3000

2600

650

560

200

250

10

HSE-200

3t/23m-25.5m

18

0.4x2

168

3500

3100

650

560

200

250

11

HSE-200

10t/5.5m-11.5m

19

0.75x2

208

2000

1600

600

510

200

250

12

HSE-200

10t/12m-16.5m

19

0.75x2

208

2500

2100

650

560

200

300

13

HSE-250

10t/17m-22.5m

19

0.75x2

208

3000

2600

650

560

200

300

14

HSE-250

10t/23m-25.5m

19

0.75x2

208

3500

3100

650

560

200

300

15

HSE-250

16t/5.5-16.5m

20

1.1x2

238

2500

2060

700

600

200

300

16

HSE-250

16t/17m-22.5m

20

1.1x2

238

3000

2560

750

650

200

300

17

HSE-320

10t/23m-25.5m

20

1.1x2

238

3500

3060

700

600

200

300

18

HSE-320

20t/5.5m-16.5m

19

1.5x2

238

2500

2060

950

800

200

350

19

HSE-320

20t/17m-22.5m

19

1.5x2

238

3000

2560

950

800

200

350
