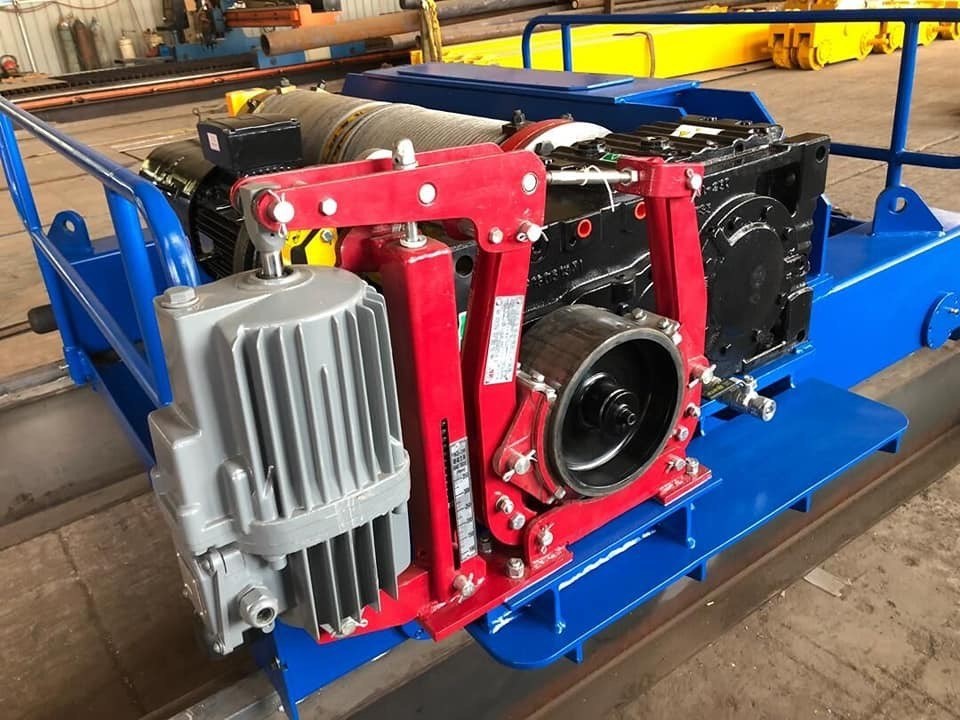

Hydraulic Thruster Brake 12m Electric Hoist Winch

Hydraulic Thruster Brake 12m Electric Hoist Winch

Hydraulic Thruster Brake 12m Electric Hoist Winch
Hydraulic Thruster Brake 12m Electric Hoist Winch

Large Image :  Hydraulic Thruster Brake 12m Electric Hoist Winch Get Best Price

Product Details:
Place of Origin: china
Brand Name: NANTE
Certification: ISO
Model Number: NW10T
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 5000-20000 usd
Packaging Details: Pallet or Wooden Case
Delivery Time: 50 days
Payment Terms: L/C, T/T
Supply Ability: 1 set / day
Detailed Product Description
Capacity: 10T Lifting Height: 12m
Lifting Speed: 0.8-8 M/min Traveling Speed: 2-20 M/min
Work Duty: M6 Rail Distance: 1600
High Light:

12m electric rope hoist winch


10 tonne electric winch

High Speed Electric Hoist Winch Used for Cranes as Main Hoist Hydraulic Thruster brake


Which use wire rope or chain which is install in the drum to lifting up the cargos from the ground. The winch lifting direction can be vertical, horizontal, and oblique pulling.

The winch can be manual winch, electrical winch, and hydraulic winch base on the different power.

The winch can be crane winch, construction winch, tower winch, mining winch etc which is base on the different application. And this session is focus on the crane winch.


Nante manufactures and exports superior quality electric winches for its valuable clients based at several parts of the world. Electric winch is a device consisting of a horizontal cylinder turned back by a crank on which a cable or a rope wind is bound. These are compact and light weight material handling and lifting equipments, suitable for installation on cranes, davits and s.

Electric Winches are widely used in the following applications:
1. Cranes
2. Davits
3. s
4. Marine
5. Punching driver
6. Construction Site and Port

1. The final drive gears are made of heat treated carbon steel that provides it a great strength.
2. It has an emergency crank handle.
3. Our product is available in AC and DC models also.
4. The front plate is made of stainless steel that provides a great rust resistance.
5. The die formed base of the equipment helps in quick mounting applications.



1. Compact and low head room Design, Light Self-weight

2. Can customized design base on different application and duty group.
3. The Gear box and motor is connected by flange, high transmission efficiency
4. High performance motor, ED can achieve to 60%, and IP class can achieve IP66, and Insulation class can achieve H
5. The motor have heat protection function. and have Encoder for over speed and Synchronization control
6. Can have dual brake design for high duty group and high safety demand.

7. The T series hook is high grade material, compact design, low self-weight, and follow DIN standard.
8. Use high strength wire rope, max. force is 2160N2, galvanized coating and free-lubrication.
9. 2 reeling design, the lifting point always in the centre.
10. The control panel enclosure is IP55, and wiring is base on IEC standard.
11. User inverter control for lifting and cross travel, smooth and low energy consumption.
12. PLC programming is optional.
13. Have a systemic safety device for the winch, like Overload limited switch, double positioning limited switch, cross limited switch, phase protection relay, over-current protection device, etc.


Data sheet:




Model Rated Load Rated Rope Speed Length of Rope Rope Dia. Motor Model Power Size Total Weight
KN m/min m mm KW mm KG
JK0.5 5 22 110 7.5 Y100L2-4 3 710*690*490 200
JK1 10 22 80 9.3 Y112M-4 4 710*610*410 300
JK1.6 16 24 115 12.5 Y132S-4 5.5 940*900*570 500
JK2 20 24 110 13 Y132M-4 7.5 940*900*570 550
JK3.2 32 30 250 15.5 YZR180L-6 15 1640*1430*820 1150
JK5 50 30 240 21.5 YZR225M-6 30 1900*1738*985 2500
JK8 80 30 210 26 YZR280S-8 45 1980*1790*1100 3500
JK10 100 30 300 30 YZR315S-8 55 2250*2500*1300 5100


Hydraulic Thruster Brake 12m Electric Hoist Winch 0
