|Certification:||ISO9001:2008||Place Of Origin:||Zhejiang, China|
manual overhead crane,
design overhead crane,
22m span double girder overhesd cranes

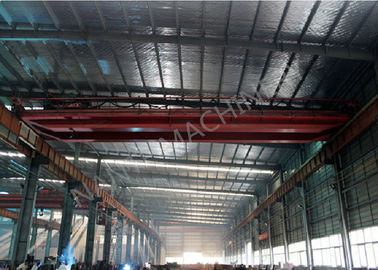

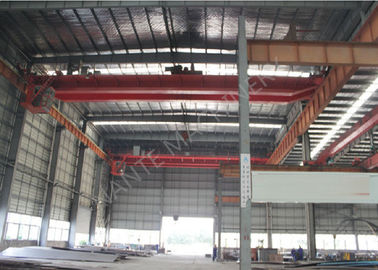

Below are the picture that were actually submitted with the project in Mexicanos
|Capacity||Span||Lifting Height||Power||Long travel Mechanism||Cross Travel Mechanism|
|Pendent||Cabin||Hoist Type||Lifting Speed||Travelling Speed|
|5||7.5||6;9;12;||3P AC 380V50Hz||28.72||
(6, 9, 12)-
(MD1)10-(6, 9, 12)-A2
|Rail Dia.||Tread Width||Max. Wheel Load||Total Weight||Dimension|
QD25t - 5t - 22m Double Beam Overhead Cranes For Transporting Loads
When heavy duty and wide spans are required, the double girder Electric Hoist Overhead Cranes for heavy loads can perform functionally. They consist of two torsion-free box girders. This makes them especially suitable for lifting and transporting heavy loads with large span. It uses winch as lifting mechanism.

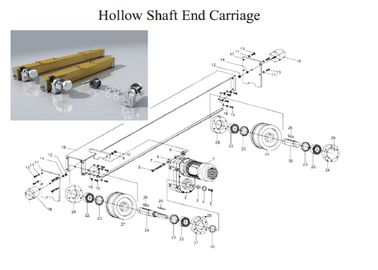

Double beam overhead industrial crane is characterized by strong bearing, big span, and overall stability with various models, but their quality is better compared with single girder gantry crane with the same capacity. They are available with load capacities up to 50T and with spans up to 35 m. Articulated end carriage joints ensure positive contact of all four wheels with the track. The range of fixing arrangements allows the appropriate integration of double girder travelling cranes be installed into new buildings as well as existing buildings. Just as with all other types of double girder travelling cranes, the profiles of the main girder are optimally produced with the assistance of computers so that maximum performance with a minimum of dead-weight can be achieved. This advantage could achieve financial benefits.
