| Driving Motor:: | Soft-starting Motor | Color:: | RAL1004, Can Be Customized |
|---|---|---|---|
| Pre-treatment:: | Shot-blasting | Bearing:: | HRB |
| Crane Wheel:: | 45# Steel(equal To AISI 1045) | Inside Setting:: | Reinforce Plate |
| Steel Structure:: | Torsion-resistant Box Girder Profile | Model Number:: | EC |
| High Light: | overhead crane end trucks,bridge crane end trucks |
||

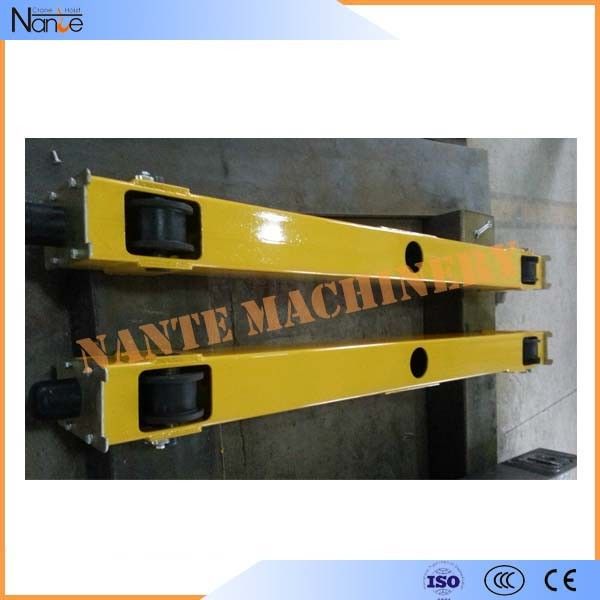

Reinforce Plate 3 Phase Steel End Carriage for Overhead Crane / End Truck
Quick details:
Nante has successfully developed crane kits systems for all kinds of overhead cranes. We are committed to provide our quality service though operational excellence and technology improvement.
Electric Motorized End Beam for Overhead Crane, Manufacturer Bridge Crane/Gantry Crane End Truck End Carriage Customization, Electric End Carriage Steel Crane Wheels For Overhead Crane 1ton ~ 100ton.
Specifications
A. Application
End carriage is applicable for wide range of cranes, such as workshop overhead bridge crane, gantry crane, etc. We are committed in providing our customers with quality and customized service.
B. Design Feature
•High strength profile with reinforced plate inside
•45# steel wheel group, HRC45-48.
•Self-lubricating bearing
•Soft start motor from Taiwan brand.
•Modular design
C. Sketch Drawing
D. Technical Parameter
|
No. |
Type |
Suitable Crane |
Travel Speed (m/min) |
Power (KW) |
Wheel Dia. OD (mm) |
SI (mm) |
S2 (mm) |
W1 (mm) |
W2 (mm) |
B (mm) |
H (mm) |
|
1 |
L174-20A |
lt2t/5.5m-11.5m |
18 |
0.3x2 |
144 |
2000 |
1760 |
500 |
410 |
150 |
200 |
|
2 |
L174-25A |
lt2t/12m-16.5m |
18 |
0.3x2 |
144 |
2500 |
2260 |
500 |
410 |
150 |
200 |
|
3 |
L174-20B |
3t/5.5m-11.5m |
18 |
0.3x2 |
144 |
2000 |
1760 |
500 |
410 |
150 |
250 |
|
4 |
L174-25B |
3t/12m-16.5m |
18 |
0.4x2 |
144 |
2500 |
2260 |
500 |
410 |
150 |
250 |
|
5 |
L174-30 |
It2t3t/17m-22.5m |
18 |
0.4x2 |
144 |
3000 |
2700 |
550 |
440 |
150 |
250 |
|
6 |
L174-35 |
lt2t/23m-25.5m |
18 |
0.4x2 |
144 |
3500 |
3200 |
600 |
510 |
150 |
250 |
|
7 |
L200-20 |
5t/5.5m-11.5m |
18 |
0.4x2 |
168 |
2000 |
1600 |
600 |
510 |
150 |
250 |
|
8 |
L200-25 |
5t/12m-16.5m |
18 |
0.4x2 |
168 |
2500 |
2100 |
600 |
510 |
200 |
250 |
|
9 |
L200-30 |
5t/17m-22.5m |
18 |
0.4x2 |
168 |
3000 |
2600 |
650 |
560 |
200 |
250 |
|
10 |
L200-35 |
3t/23m-25.5m |
18 |
0.4x2 |
168 |
3500 |
3100 |
650 |
560 |
200 |
250 |
|
11 |
L240-20 |
10t/5.5m-11.5m |
19 |
0.75x2 |
208 |
2000 |
1600 |
600 |
510 |
200 |
250 |
|
12 |
L240-25 |
10t/12m-16.5m |
19 |
0.75x2 |
208 |
2500 |
2100 |
650 |
560 |
200 |
300 |
|
13 |
L240-30 |
10t/17m-22.5m |
19 |
0.75x2 |
208 |
3000 |
2600 |
650 |
560 |
200 |
300 |
|
14 |
L240-35 |
10t/23m-25.5m |
19 |
0.75x2 |
208 |
3500 |
3100 |
650 |
560 |
200 |
300 |
|
15 |
L268-25 |
16t/5.5-16.5m |
20 |
1.1x2 |
238 |
2500 |
2060 |
700 |
600 |
200 |
300 |
|
16 |
L268-30 |
16t/17m-22.5m |
20 |
1.1x2 |
238 |
3000 |
2560 |
750 |
650 |
200 |
300 |
|
17 |
L268-35 |
10t/23m-25.5m |
20 |
1.1x2 |
238 |
3500 |
3060 |
700 |
600 |
200 |
300 |
|
18 |
L268-25P |
20t/5.5m-16.5m |
19 |
1.5x2 |
238 |
2500 |
2060 |
950 |
800 |
200 |
350 |
|
19 |
L268-30P |
20t/17m-22.5m |
19 |
1.5x2 |
238 |
3000 |
2560 |
950 |
800 |
200 |
350 |
