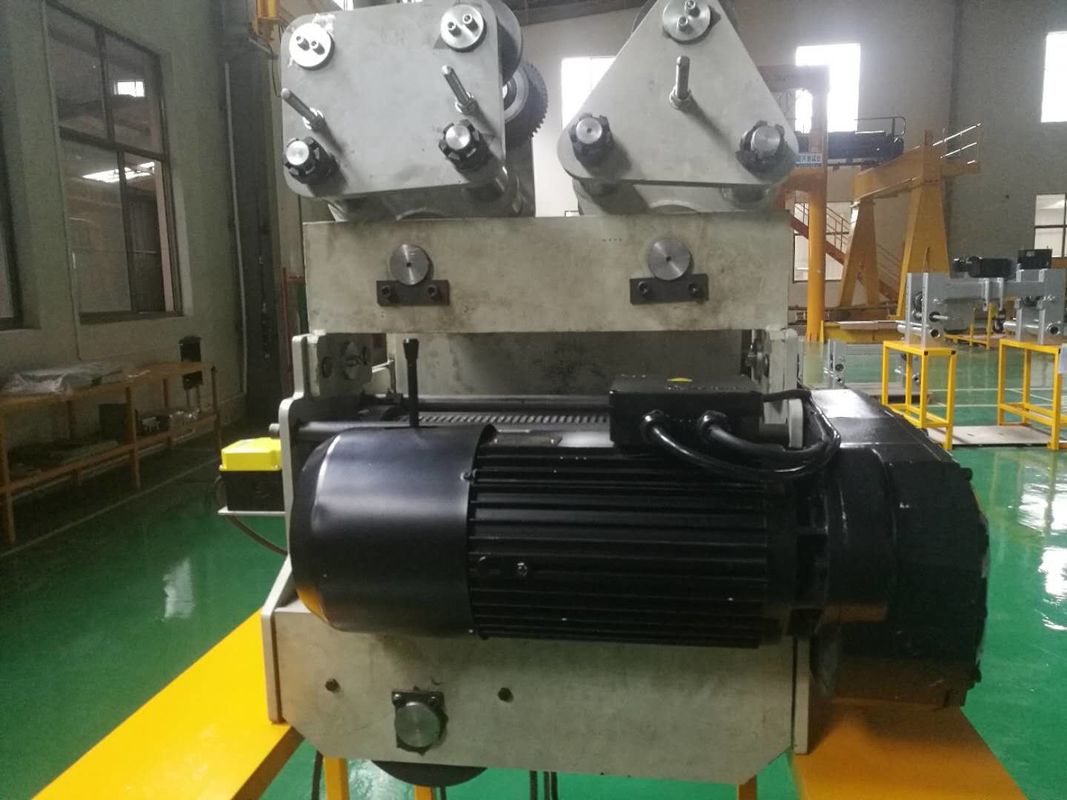

Underhung Small Volume 8m / Min Wire Rope Hoist

Underhung Small Volume 8m / Min Wire Rope Hoist

Underhung Small Volume 8m / Min Wire Rope Hoist
Underhung Small Volume 8m / Min Wire Rope Hoist

Large Image :  Underhung Small Volume 8m / Min Wire Rope Hoist Get Best Price

Product Details:
Place of Origin: China
Brand Name: NANTE
Certification: ISO
Model Number: NHA-B
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: USD800-5000/set
Packaging Details: Wooden case
Delivery Time: 5 weeks
Payment Terms: L/C, T/T
Supply Ability: 1000set/year
Detailed Product Description
Capacity: 1T -20T Lifting Speed: 8m/min
Traveling Speed: 20m/min Working Duty: M4
High Light:

8m / min electric rope hoist


20 ton wire rope hoist

Electric wire rope hoist NHA-B model underhung type new design with small volume




NHA-B series steel rope electric hoist have newest designing with quadrate outline, modularize construction, good unitized capability.
1. The fundamental mode change combine is very convenient and multiform.
2 The special long transmission shaft.
3. The reducer use planetary speed-down drive which have high effective, low yawp long using life.
4. Unique column rotor-taper breaking wheel motor with low yawp, disk reliable.
5. With the advanced guide rope technology from overseas, unit is very reliable and safety.
6. High precision and super mechanical apin limiter.
7. High quality control electric component with low malfunction.


Model Capacity (t) Lifting Speed (m/min) Lifting Power (KW)

Travel Speed


Travel Power (KW) Working Class (FEM/ISO)
NHA-B 1 2/1 8m/min 1.5kw 0.37 M4
NHA-B 2 2/1 8m/min 3kw 0.37 M4
NHA-B 3.2 2/1 8m/min 4.5kw 0.37 M4
NHA-B 3.2 4/1 5m/min 3kw 0.37 M4
NHA-B 5 2/1 8m/min 7.5kw 0.55 M4
NHA-B 6.3 4/1 5m/min 4.5kw 0.55 M4
NHA-B 10 4/1 4m/min 7.5kw 0.75 M4
NHA-B 16 4/1 4m/min 13kw 2*0.75 M4
NHA-B 20 4/1 4m/min 13kw 2*0.75 M4


About Nante Machinery

After 20 years rapid development, NANTE and its parents company ZHONGJIAN Group has grown into a leading integrated solution provider for crane components in China. Dedicated to the research and development of new lifting and handling technologies, we adopt innovative ideas and design in developing new products and services. Backed up by a wealth of industial experience on lifting industy, we can provide to customer wide range of lifing equipment and components with scientific design, good safety, high performance, efficient operation and low maintenance cost. We are committed to help our clients to reduce investment cost, improve production efficiency, and economize energy consumption.

Our Service
We can provide to customer an integrated solution which includes project consultant, design, manufacturing, transportatons, installation, maintenance and technical support. Our one-step services can not only save our customers' time but also minimize their cost. In compliance with our service oncept "Customer First", we provide the following support services to ensure smooth running of customer's lifting and handling,Presale Technical Support, After-sale Maintenance, Spare Parts Support and Customized Solutions.

R&D Strength
All staffs in our R&D Center are engineers with many years with experiences in lifting equipment design. They input great efforts in technology transformation, computerized designing and integration. We can not only design the product with the national regulated safety technique specifications and design standards, but also BS, DIN, and other international standard.
To name some strength of our R&D:
1.We are the Beam launcher National standards drafting company.
2.We design and build the China highest truss gantry crane.
3.We design and build China longest beam launcher.
