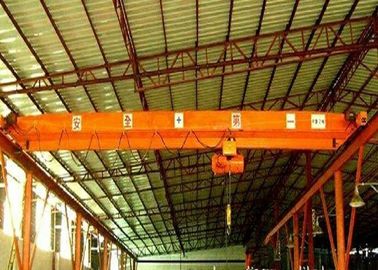

Light single Girder electric overhead travelling crane Type LDX3t-15m for industrial use

Light single Girder electric overhead travelling crane Type LDX3t-15m for industrial use

Light single Girder electric overhead travelling crane Type LDX3t-15m for industrial use
Light single Girder electric overhead travelling crane Type LDX3t-15m for industrial use Light single Girder electric overhead travelling crane Type LDX3t-15m for industrial use

Large Image :  Light single Girder electric overhead travelling crane Type LDX3t-15m for industrial use Get Best Price

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Nante
Certification: ISO
Model Number: LDA3t-15m
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: N/A
Packaging Details: Naked
Delivery Time: Within 2 months
Payment Terms: L/C, T/T
Detailed Product Description
Color: Clients' Requirments END CARRIAGE: HSE125-25
Motor Brand: Nord Lifting Height: 6m
Capacity: 3T Brand: Nante
Power Source: 3 Phase 380V 50hz Or Accord Your Requirements Colour: Red Or Yellow
High Light:

design overhead crane

,

overhead electric cranes

,

industrial electric overhead travelling crane

Light single Girder electric overhead travelling crane Type LDX3t-15m for industrial use



Single girder Electric Hoist Travelling Bridge crane systems provide solution for materials handling even when production units or warehouses are comparatively small and low.To minimize the capital costs for buildings modifications toprovide extra space, we utilize the minimum of space for our crane systems.



Using various fixing arrangements the single girder travelling cranes can be fitted individually to the existing space available.Favorable dimensions result in the optimal highest hook position.



This makes it a master at saving space even in buildings with unfavorable dimensions. The crane girder is constructed from robust profiles. Using a comprehensive range of fixing arrangements the travelling cranes can be designed to fit the available space. All we need for the planning stage of the crane system are the clear dimensions of the building. We will then design the crane individually for you.



Design Compact dimensions, low weight, easy to operate and easy to maintain, modular design with direct fits between components

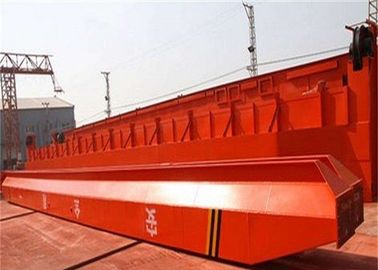

Structure Bridge Girder, End carriages, Crab Frame manufactured from box plate design / Rolled Sections. If required 100% radiography of all butt welding joints of bridge and end carriages can be provided.
Motors Nante Crane uses sturdy cylindrical/ conical rotor pole-changing motors with elegant continuous cast aluminum sections, integrated safety brakes insulation class F, IP54 protection.
Controls Pendant control from floor, master control switches, master controllers in the driver's cabin can be provided. Radio remote control can be provided on request.
Electrical Panel Modular design, covering a very wide operating range. The systems are designed for ease of installation and maintenance and reliable operation, with fuseless circuitry, ducted wiring and non-screwed terminals. Each drive group is equipped with a motor overload protection device to provide effective protection against inadmissible overloading.
Painting Every component & part is thoroughly scrubbed & painted with two coats of primer before assembly & two coats of synthetic enamel after testing.





Technical Parameters

      3.2T
  Span m 10.5 14 17.5 21 24.5
Speed Lifting Speed m/min 5/0.8
Trolley Speed 5.0/20
Bridge Speed 8/32
Motor Power Lifting Motor kW 3.2/0.45 3.2/0.45 3.2/0.45 3.2/0.45 3.2/0.45
Trolley Motor 0.64x1 0.64x1 0.64x1 0.64x1 0.64x1
Bridge Motor 0.37x2 0.37x2 0.37x2 0.55x2 0.55x2
Crane Power 4.58 4.58 4.58 4.94 4.94
Basic Data Max.Wheel Load KN 20.8 22.8 24.8 27.3 31.4
Wheel Dia.   125 125 125 125 125
Model of End Carriage   HSE125-15 HSE125-20 HSE125-25 HSE125-30 HSE125-35
Gear Model   SK0282-0.37 SK0282-0.37 SK0282-0.37 SK0282-0.55 SK0282-0.55
Crane Wheel Qty. Pcs 4 4 4 4 4
Crane Rail   30×50 30×50 30×50 30×50 30×50







Single girder overhead industrial crane with hoist are widely used in the following applications:
1. LIGHT DUTY Cranes for maintenance, warehouse and assembly operations.
2. MEDIUM DUTY Cranes for general engineering application and Machine shop.
3. HEAVY DUTY Cranes for Heavy machine shops, paper mills, Fabrication shop, etc.
4. EXTRA HEAVY DUTY Cranes for continuous operation in Steel mills and other Heavy Engineering purpose. Cranes for Outdoor duty is also designed specially.
