Home ProductsCrane End Carriage

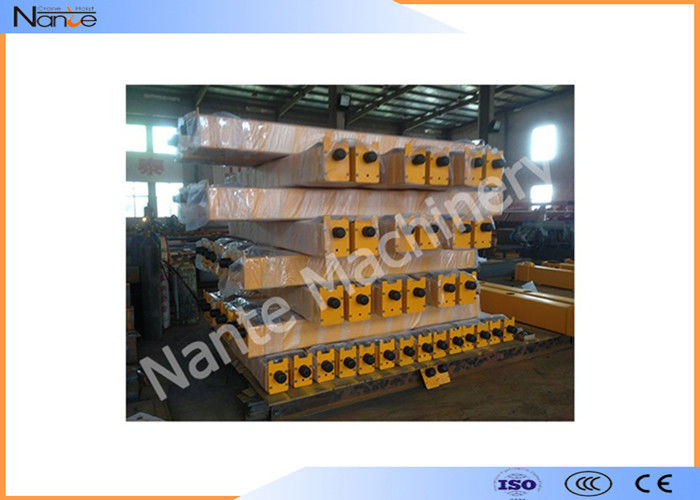

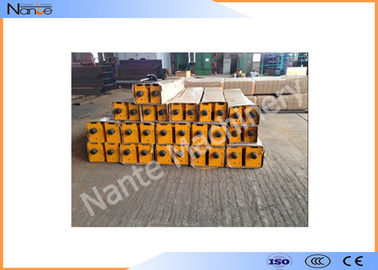

Independently Driven Crane End Carriage Shot - blasting ISO9001

Independently Driven Crane End Carriage Shot - blasting ISO9001

Independently Driven Crane End Carriage Shot - blasting ISO9001
Independently Driven Crane End Carriage Shot - blasting ISO9001 Independently Driven Crane End Carriage Shot - blasting ISO9001

Large Image :  Independently Driven Crane End Carriage Shot - blasting ISO9001 Get Best Price

Product Details:
Place of Origin: China
Brand Name: NANTE
Certification: ISO9001, CE, CCC
Model Number: Crane End Carriage
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pair/Pairs
Packaging Details: Seaworthy packing
Delivery Time: Within 30 days
Supply Ability: 10000 Pair/Pairs per Year
Detailed Product Description
Certification:: ISO9001, CE, CCC Inside Setting:: Reinforce Plate
Color:: RAL1004, Can Be Customized Place Of Origin:: Zhejiang, China (Mainland)
Driving Motor:: Soft-starting Motor Pre-treatment:: Shot-blasting
Bearing:: HRB Capacity:: 16~22.5ton
High Light:

overhead crane end trucks

,

bridge crane end trucks

Place of Origin: Zhejiang, China (Mainland)

Brand Name: Nante

Model Number: EC

Steel Structure: Torsion-resistant box girder profile

Inside Setting: Reinforce plate

Crane Wheel: 45# steel(equal to AISI 1045)

Bearing: HRB

Driving Motor: Soft-starting motor

Pre-treatment: Shot-blasting

Color: RAL1004, can be customized



Packaging Details:Seaworthy packing

Delivery Detail:Within 30 days

Specifications

1. Manufacturer Bridge Crane/Gantry Crane End Truck End Carriage Customization
2. For overhead crane, gantry crane





Manufacturer Bridge Crane/Gantry Crane End Truck End Carriage Customization, Electric End Carriage Steel Crane Wheels For Overhead Crane 1ton ~ 100ton.



  • 1~100T crane trolley-end carriage
  • Independently driven.
  • for single girder & double girder.
  • Low repair rate.
  • Tough material, high safety.



Nante has successfully developed crane kits systems for all kinds of overhead cranes. We are committed to provide our quality service though operational excellence and technology improvement.



A wide range of Crane End Carriage is available for customers’ choice. They are designed for single girder crane, double girder crane range from 1~50ton(standard), other capacity can be customized.

With the backup of high quality manufacturing facilities and solid technological strength, we have been pursuing for nearly two decades the service principle of “quality first”, providing qualified goods for customers in South America, South Asia, Europe, Middle East, etc,



Application



End carriage is applicable for wide range of cranes, such as workshop overhead bridge crane, gantry crane, etc. We are committed in providing our customers with quality and customized service.



Design Feature



High strength profile with reinforced plate inside

45# steel wheel group, HRC45-48.

Self-lubricating bearing

Soft start motor from Taiwan brand.

Modular design



General Drawing

 Independently Driven Crane End Carriage Shot - blasting ISO9001 0





No.

Type

Suitable Crane

Travel Speed (m/min)

Power

(KW)

Wheel Dia.

OD

(mm)

SI

(mm)

S2

(mm)

W1

(mm)

W2

(mm)

B

(mm)

H

(mm)

1

L174-20A

lt2t/5.5m-11.5m

18

0.3x2

144

2000

1760

500

410

150

200

2

L174-25A

lt2t/12m-16.5m

18

0.3x2

144

2500

2260

500

410

150

200

3

L174-20B

3t/5.5m-11.5m

18

0.3x2

144

2000

1760

500

410

150

250

4

L174-25B

3t/12m-16.5m

18

0.4x2

144

2500

2260

500

410

150

250

5

L174-30

It2t3t/17m-22.5m

18

0.4x2

144

3000

2700

550

440

150

250

6

L174-35

lt2t/23m-25.5m

18

0.4x2

144

3500

3200

600

510

150

250

7

L200-20

5t/5.5m-11.5m

18

0.4x2

168

2000

1600

600

510

150

250

8

L200-25

5t/12m-16.5m

18

0.4x2

168

2500

2100

600

510

200

250

9

L200-30

5t/17m-22.5m

18

0.4x2

168

3000

2600

650

560

200

250

10

L200-35

3t/23m-25.5m

18

0.4x2

168

3500

3100

650

560

200

250

11

L240-20

10t/5.5m-11.5m

19

0.75x2

208

2000

1600

600

510

200

250

12

L240-25

10t/12m-16.5m

19

0.75x2

208

2500

2100

650

560

200

300

13

L240-30

10t/17m-22.5m

19

0.75x2

208

3000

2600

650

560

200

300

14

L240-35

10t/23m-25.5m

19

0.75x2

208

3500

3100

650

560

200

300

15

L268-25

16t/5.5-16.5m

20

1.1x2

238

2500

2060

700

600

200

300

16

L268-30

16t/17m-22.5m

20

1.1x2

238

3000

2560

750

650

200

300

17

L268-35

10t/23m-25.5m

20

1.1x2

238

3500

3060

700

600

200

300

18

L268-25P

20t/5.5m-16.5m

19

1.5x2

238

2500

2060

950

800

200

350

19

L268-30P

20t/17m-22.5m

19

1.5x2

238

3000

2560

950

800

200

350
