GCL 619 Geared Single Trolley Manual Chain Hoist With Simple And Useful Structure For Mine

GCL 619 Geared Single Trolley Manual Chain Hoist With Simple And Useful Structure For Mine

GCL 619 Geared Single Trolley Manual Chain Hoist With Simple And Useful Structure For Mine
GCL 619 Geared Single Trolley Manual Chain Hoist With Simple And Useful Structure For Mine GCL 619 Geared Single Trolley Manual Chain Hoist With Simple And Useful Structure For Mine

Large Image :  GCL 619 Geared Single Trolley Manual Chain Hoist With Simple And Useful Structure For Mine Get Best Price

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Nante
Certification: ISO9001:2008
Model Number: GCL 619
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: N/A
Packaging Details: Seaworthy packings into container or bulk vessel
Delivery Time: Based on client's needs
Payment Terms: L/C, T/T
Supply Ability: 50,000pcs/year
Detailed Product Description
Capacity: 0.5t I-Beam Width: 64-140
N.W./kgs: 14 A: 308.5
B: 212 C: 198.5
High Light:

chain hoist manual

,

manual cable hoist

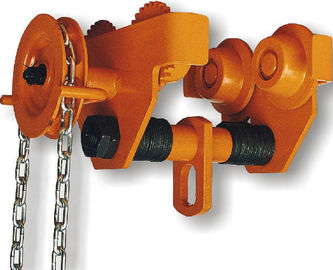

GCL 619 Geared Single Trolley Manual Chain Hoist Trolley With Simple And Useful Structure For Mines



Geared single running manual trolley is a simple and useful structure, easy for carry and operate. This type is driven by chain, it can be used together with Chain hoist or other lifting products to match the composition of lifting and transporting. It can freely run in a certain radius of curvature of the I-beam track along the upper and lower wings, installed in the straight or the curve of the monorail overhead transport line or manual single-beam bridge. It is widely applicable to factories, mines, docks, shipyards, warehouses and computer room and other places to install machines, lifting goods, especially for locations with no power equipment installation.



Feature:

  1. Capacity from 0.5T-30T.
  2. Wheels are lubricated and equipped with bearings for longer service life.
  3. Making use of thicker steel plates and stronger axle to ensure safety operation.
  4. Lightweight, easy to carry, graceful appearance.

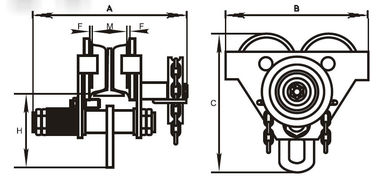

Capacity I-Beam Width N.W./kgs A B C H
0.5t 64-140 14 308.5 212 198.5 113
1t 64-140 19 328.5 255 231.5 128
2t 76-165 29 361.5 302 278 152
3t 76-203 40 428.5 344 338 186
5t 88-203 65 434 378 393 219
10t 125-203 103 487.5 455 490 275.5
20t 136-203 245 547 642 622 315
30t 144-175 255 517 642 557 245
