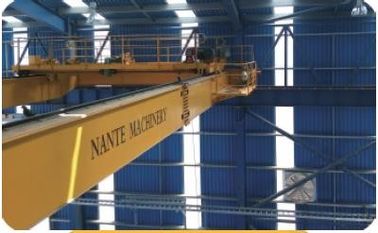

5T Double Girder Overhead Cranes , Electronic Safety Workshop Bridge Crane

5T Double Girder Overhead Cranes , Electronic Safety Workshop Bridge Crane

small.img.alt small.img.alt small.img.alt

Large Image :  5T Double Girder Overhead Cranes , Electronic Safety Workshop Bridge Crane Get Best Price

Product Details:
Place of Origin: China
Brand Name: Nante
Certification: ISO9001:2008
Model Number: Double Girder 5T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Naked
Delivery Time: one month
Detailed Product Description
Color: Yellow Capacity: 5T
Lifting Height: 9m Payment: T/T
Delivery Time: One Month Brand: NANTE
Origin: China Lifting Speed: 5/0.8m/min
High Light:

manual overhead crane


design overhead crane


european style workshop bridge crane



5T Double Girder Overhead Cranes Bridge Crane Safety Workshop Overhead Crane



General Drawing or Sketch or Draft Drawing

5T Double Girder Overhead Cranes , Electronic Safety Workshop Bridge Crane 0

Technical Parameters

Capacity Span Lifting Height Power Long travel Mechanism

Cross Travel


Pendent Cabin Hoist Type Lifting Speed


lling Speed

Speed Motor Power Speed Motor Speed
t m   m/min Model kW m/min Model kW   m/min
5 7.5 6;9;12;

3P AC 380V50





2×0.8 42.9 YSE90L-4D 2×1.5




8;8/0.8 17
10 7.5






Rail Dia. Tread Width   Max. Wheel Load Total Weight Dimension
K W L  L1 H  H1 H2 h
mm KN t mm
Ф300 37-70 34.43 4.9 1500 3000 3550 120 1163 781 578 -3
38.04 5.86 17
40.9 6.78 107
44.13 7.98 187
47.17 9.2 267
50.28 10.7 347
57.28 5.6 121 1374 863 620 47
62.68 6.68 187
67.38 8.04 277
72.03 9.65 427
76.66 11.37 527
80.99 13.05 607

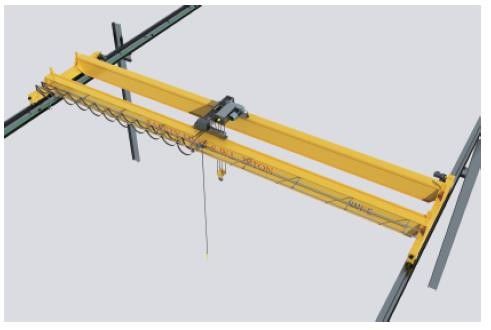

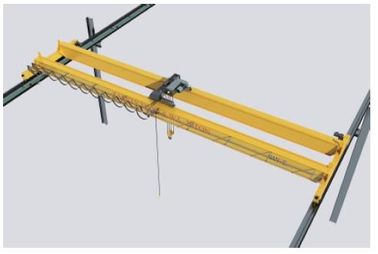

LH European Design Overhead Crane


NANTE European style electric hoist overhead cranes combine light weight construction with heavyweight strength, power and durability. Their superb handling characteristics together a with a wide range of standard and optional features makethem an automatic first choice for application requiring optimallifting equipment with long term reliability.



Compact design, optimal space utilization

Because of the unique dimensions of NANTECRANE,the floor area under the crane is used more efficiently. The small space requirement and the lightweight, durable construction of NANTECRANE lead to optimization of the work area to the users benefit. Compared to any other type of cranes, NANTE cranes enable a reduction in the structural requirements of rails, runway beams and columns, and the overall height of the building. Consequently, NANTE cranes begin its own payback by reducing building construction costs



Superior safety and reliability

In developing the NANTE crane, NANTE utilized its vast experience in diverse customer applications and its extensive resources, combined with know-how from skilled staff, each crane ensures reliability and quality to users. Our design and experience enables the product to be adapted to your specific production process requirements. And serial production of cranes, ending with full load factory testing of every crane, certifies the functionality of all machinery and equipment, and serial production of crane.
