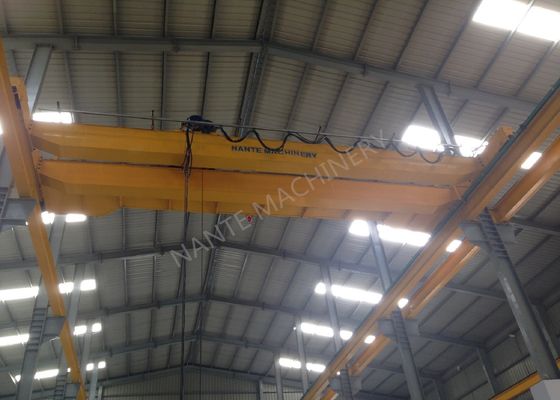

Double Girder Overhead Bridge Cranes Capacity 20Ton Span 14m for Steel processing plant

Double Girder Overhead Bridge Cranes Capacity 20Ton Span 14m for Steel processing plant

Double Girder Overhead Bridge Cranes Capacity 20Ton Span 14m for Steel processing plant
Double Girder Overhead Bridge Cranes Capacity 20Ton Span 14m for Steel processing plant Double Girder Overhead Bridge Cranes Capacity 20Ton Span 14m for Steel processing plant Double Girder Overhead Bridge Cranes Capacity 20Ton Span 14m for Steel processing plant Double Girder Overhead Bridge Cranes Capacity 20Ton Span 14m for Steel processing plant

Large Image :  Double Girder Overhead Bridge Cranes Capacity 20Ton Span 14m for Steel processing plant Get Best Price

Product Details:
Place of Origin: Zhejiang, China
Brand Name: NANTE
Certification: CE,ISO
Model Number: QD20t-14m
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: N/A
Packaging Details: in Container
Delivery Time: 4 weeks
Payment Terms: L/C, T/T
Detailed Product Description
Feature: Double Girder Bridge Crane Model Number: QD10t-14m
Capacity: 20T Span: 14m
Lifting Height: 9m Color: Yellow Or Customized
Brand Name: Nante Certification: ISO9001:2008
Warranty: One Year Condition: New
Control Method: Cabin / Wireless Remote / Pendant Button Control Working Duty: A3-A7

Double Girder Overhead Bridge Cranes Capacity 20Ton Span 14m for Shipbuilding Industry



This is Double Girder Electric Overhead Travelling Crane. When heavy loads and wide duty are required, the double Girder Electric Hoist Overhead cranes for construction show their strength. They consist of two torsion-free box girders. This makes them especially suitable for lifting and transporting heavy loads.



Dual rail overhead industrial crane is characterized by strong bearing, big span, and overall stability with various models, but their quality is better compared with single girder gantry crane with the same capacity. They are available with load capacities up to 50T and with spans up to 35 m. Articulated end carriage joints ensure positive contact of all four wheels with the track. The range of fixing arrangements allows the appropriate integration of double girder travelling cranes into new buildings as well as into existing buildings. Just as with all other types of double girder travelling cranes, the profiles of the main girder are optimally produced using computers so that maximum performance with a minimum of dead-weight can be achieved. An advantage that has financial benefits.


Double girder overhead crane with hoist or winch are widely used in the following applications:

1. Light duty cranes for repair shops, light assembly operations, service buildings, light warehouses, where service requirements are infrequent.

2. Medium duty cranes for machine shops and general industrial use both indoor and outdoor application.

3. Extra heavy duty cranes for steel mills and other heavy machine shops, steel warehouses, heavy fabrication shops, paper mills etc. with magnet and bucket operation for scrap yards, fertilizer plants & induction furnace.

4. Extra heavy duty cranes for steel mills and other heavy engineering purposes. Cranes designed for hot metal application on request.



Main Features:

1. NANTE Double girder overhead crane follow FEM standard.
2. Nante design and fabricate the main girder which combines light weight construction with heavy weight strength, power and durability.
3. Can use double girder hoist or winch which can achieve until M7 duty group.
4. Nante use bogie end carriage which will make the long travel of crane to be more smooth than long end carriage.
5. The control panel follow IEC standard, and can use all inverter control for lifting, long travel, and cross travel.
6. Except load limited switch, rotational limited switch, cross limited switch, nante can design the dual brake system and dual height limitator
for double safety.



Design Features:

1. Design:

Compact dimensions, low weight, easy to operate and easy to maintain, modular design with direct fits between components

2. Structure:

Bridge Girder, End carriages, Crab Frame manufactured from box plate design / Rolled Sections. If required 100% radiography of all butt welding joints of bridge and end carriages can be provided.

3. Motors:

NANTE Crane uses sturdy cylindrical/ conical rotor pole-changing motors with elegant continuous cast aluminum sections, integrated safety brakes insulation class F, IP54 protection.

4. Variable Frequency Drives & Remote Controls:

We also offer Variable Frequency Drive in hoisting, cross travel, long travel for stepless speed control as an optional feature. We also provide radio remote control cranes for application in inaccessible and hazardous areas.

5. Brakes:

Failsafe magnetic or hydraulic brakes of 150% torque or more are fitted on shaft extensions. For heavy duty cranes a second brake can be mounted to ensure failsafe operation.

6. Controls:

Pendant control from floor, master control switches, master controllers in the driver's cabin can be provided. Radio remote control can be provided on request.

7. Electrical Panel:

Modular design, covering a very wide operating range. The systems are designed for ease of installation and maintenance and reliable operation, with fuseless circuitry, ducted wiring and non-screwed terminals. Each drive group is equipped with a motor overload protection device to provide effective protection against inadmissible overloading.

8. Painting:

Every component & part is thoroughly scrubbed & painted with two coats of primer before assembly & two coats of synthetic enamel after testing.

9. Limit Switches:

To prevent over hoisting & over lowering of hook.



Technical Parameters

      20T
Span m 14 17.5 21 24.5 28
Lifting Speed m/min 4/0.66
Trolley Speed 5.0/20
Bridge Speed 8/32
Lifting Motor kW 16/2.6 16/2.6 16/2.6 16/2.6 16/2.6
Trolley Motor 0.55x2 0.55x2 0.55x2 0.55x2 0.55x2
Bridge Motor 1.1x4 1.1x4 1.1x4 1.1x4 1.5x4
Crane Power 24.1 24.1 24.1 24.1 24.1
Hoist kg 1104 1104 1104 1104 1104
End Carriage 1165 1165 1165 1340 1340
Long travel Motor 160 160 160 160 168
Girder 5520 7960 10800 13730 17050
maintenance platform 980 1230 1470 1720 1970
Long travel Control Panel 26.0 26.0 26.0 26.0 26.0
Power supply system 79.9 97.7 115.5 133.4 151.3
Total Crane 9034.9 11742.7 14840.5 18213.4 21809.3
Max.Wheel Load KN 57.7 61.8 66 70.3 75
Wheel Dia.   200 200 200 250 250
Length of End Carriage   HSE-D200-15x2 HSE-D200-15x2 HSE-D200-15x2 HSE-D250-15x2 HSE-D250-15x2
Gear Model   SK2282-1.1*4 SK2282-1.1*4 SK2282-1.1*4 SK2282-1.1*4 SK2282-1.5*4
Crane Wheel Qty. Pcs 8 8 8 8 8
Crane Rail   40×60 40×60 40×60 40×60 40×60

3D picture

Double Girder Overhead Bridge Cranes Capacity 20Ton Span 14m for Steel processing plant 0

Double Girder Overhead Bridge Cranes Capacity 20Ton Span 14m for Steel processing plant 1



UT Test

Double Girder Overhead Bridge Cranes Capacity 20Ton Span 14m for Steel processing plant 2
