|Name:||Double Girder Gantry Crane||Capacity:||5T|
|Span:||22m||Model Number:||Double Girder|
manual overhead crane,
design overhead crane

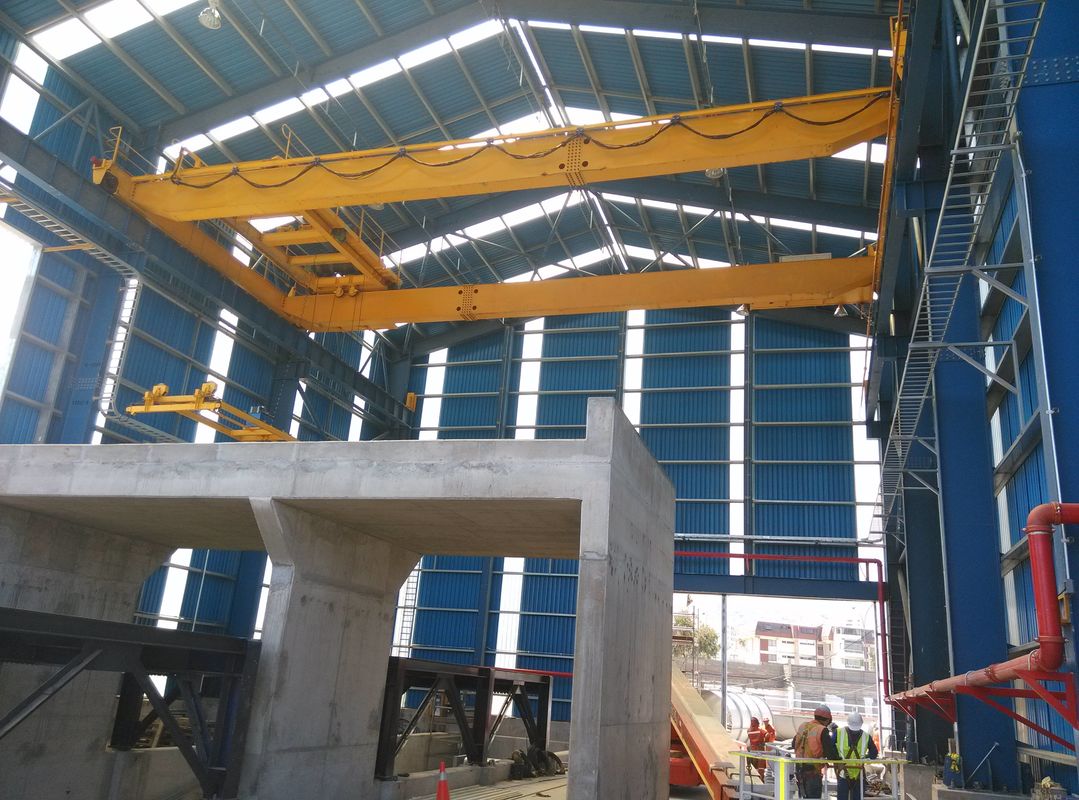

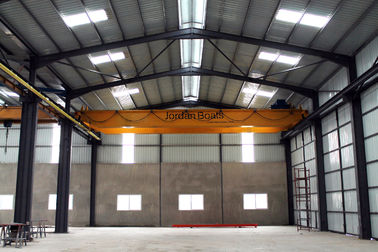

Explosion Proof Double Girder Overhead Crane 5 TON For Lifting Material
These systems provide space for materials handling even when production units or warehouses are comparatively small and low. To minimize the capital costs for modifications to buildings to provide extra space, we utilize the minimum of space for our crane systems. Using various fixing arrangements the single girder travelling cranes can be fitted individually to the existing space available. Favorable dimensions result in the optimal highest hook position.
Normally there is no maximum safety distance to the ceiling of the building for single girder cranes with a load capacity range of up to 10 T. This makes it a master at saving space even in buildings with unfavorable dimensions. The crane girder is constructed from robust profiles. Using a comprehensive range of fixing arrangements the travelling cranes can be designed to fit the available space. All we need for the planning stage of the crane system are the clear dimensions of the building. We will then design the crane individually for you.
Double girder overhead crane with hoist are widely used in the following applications:
1. Light duty cranes for repair shops, light assembly operations, service buildings, light warehouses, where service requirements are infrequent.
2. Medium duty cranes for machine shops and general industrial use both indoor and outdoor application.
3. Extra heavy duty cranes for steel mills and other heavy machine shops, steel warehouses, heavy fabrication shops, paper mills etc. with magnet and bucket operation for scrap yards, fertilizer plants & induction furnace.
4. Extra heavy duty cranes for steel mills and other heavy engineering purposes. Cranes designed for hot metal application on request.
Design features include:
Compact dimensions, low weight, easy to operate and easy to maintain, modular design with direct fits between components
Bridge Girder, End carriages, Crab Frame manufactured from box plate design / Rolled Sections. If required 100% radiography of all butt welding joints of bridge and end carriages can be provided.
Nante Crane uses sturdy cylindrical/ conical rotor pole-changing motors with elegant continuous cast aluminum sections, integrated safety brakes insulation class F, IP54 protection.
Variable Frequency Drives & Remote Controls:
We also offer Variable Frequency Drive in hoisting, cross travel, long travel for stepless speed control as an optional feature. We also provide radio remote control cranes for application in inaccessible and hazardous areas.
Failsafe magnetic or hydraulic brakes of 150% torque or more are fitted on shaft extensions. For heavy duty cranes a second brake can be mounted to ensure failsafe operation.
Pendant control from floor, master control switches, master controllers in the driver's cabin can be provided. Radio remote control can be provided on request.
Modular design, covering a very wide operating range. The systems are designed for ease of installation and maintenance and reliable operation, with fuseless circuitry, ducted wiring and non-screwed terminals. Each drive group is equipped with a motor overload protection device to provide effective protection against inadmissible overloading.
Every component & part is thoroughly scrubbed & painted with two coats of primer before assembly & two coats of synthetic enamel after testing.
To prevent over hoisting & over lowering of hook.
|Capacity||Span||Lifting Height||Power||Long travel Mechanism||
|Lifting Speed||Travelling Speed|
3P AC 380V50
|Rail Dia.||Tread Width||Max. Wheel Load||Total Weight||Dimension|
