Heavy Loads / Wide Span Double Girder Overhead Electric Cranes For Warehouse

Heavy Loads / Wide Span Double Girder Overhead Electric Cranes For Warehouse

small.img.alt small.img.alt small.img.alt

Large Image :  Heavy Loads / Wide Span Double Girder Overhead Electric Cranes For Warehouse Get Best Price

Product Details:
Place of Origin: Zhejiang, China
Brand Name: NANTE
Certification: ISO9001:2008
Model Number: LH5t-16m
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: N/A
Packaging Details: Naked
Delivery Time: Within 2 months
Payment Terms: L/C, T/T
Detailed Product Description
Place Of Origin: Zhejiang, China Brand Name: NANTE
Model Number: LH5t-16m Certification: ISO9001:2008
Max.Lifting Load: 5T Span: 16.5m
High Light:

overhead electric cranes


design overhead crane


Warehouse Double Girder Overhead Electric Cranes

Heavy Loads and Wide Spans of Double girder overhead cranes

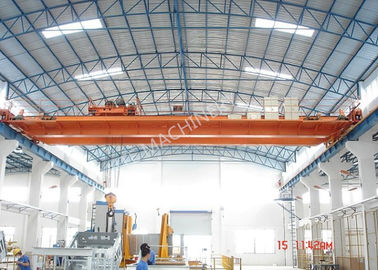

Heavy Loads / Wide Span Double Girder Overhead Electric Cranes For Warehouse 0

Technical Parameters

Capacity Span Lifting Height Power Long travel Mechanism Cross Travel Mechanism
Pendent Cabin



Lifting Speed
Speed Motor Power Speed Motor Speed
t m   m/min Model kW m/min Model kW   m/min
5 7.5 6;9;12; 3P AC 380V50Hz 28.72 YSE802-4D 2×0.8 42.9 YSE90L-4D 2×1.5


5-(6, 9, 12)


10 7.5 YSE90L-4D 2×1.5


10-(6, 9, 12)-A2

Rail Dia. Tread Width   Max. Wheel Load Total Weight Dimension
K W L  L1 H  H1 H2 h
mm KN t mm
Ф300 37-70 34.43 4.9 1500 3000 3550 120 1163 781 578 -3
38.04 5.86 17
40.9 6.78 107
44.13 7.98 187
47.17 9.2 267
50.28 10.7 347
57.28 5.6 121 1374 863 620 47
62.68 6.68 187
67.38 8.04 277
72.03 9.65 427
76.66 11.37 527
80.99 13.05 607

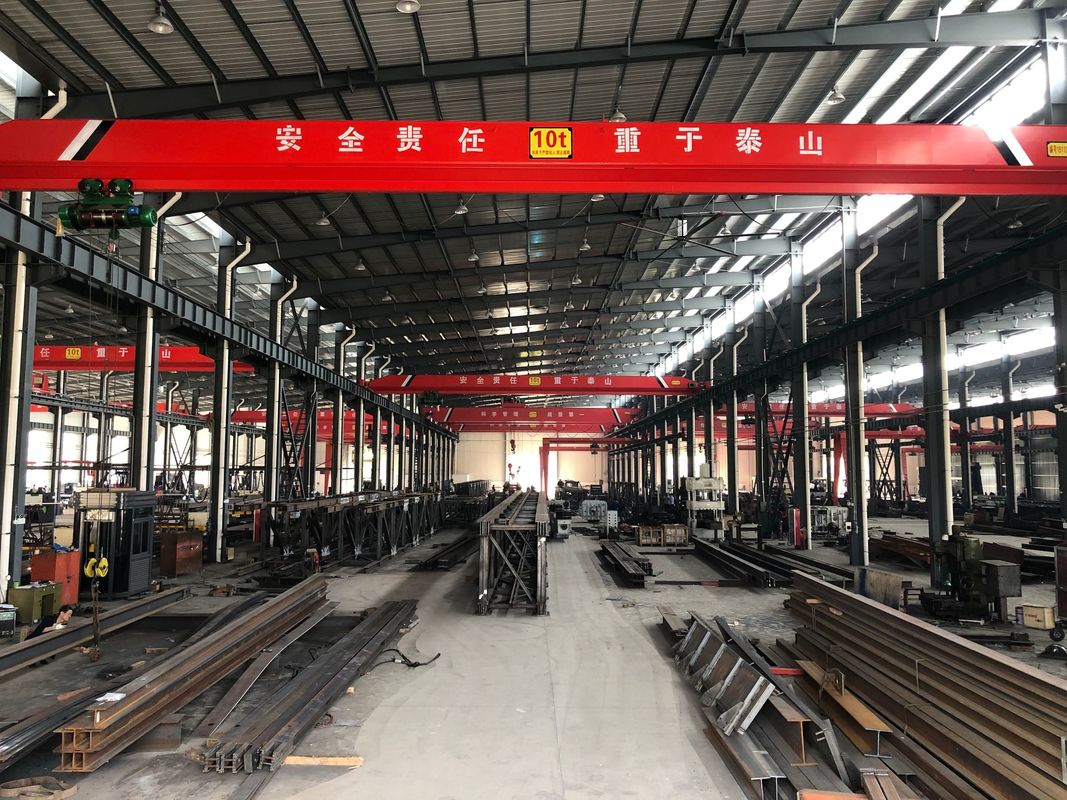

Heavy Loads / Wide Span Double Girder Overhead Electric Cranes For Warehouse 1

This is the heavy load and wide spans of double Girder Bridge  crane. When heavy loads and wide duty are required, the electric double beam electric overhead travelling bridge cranes for workshop show their strength. They consist of two torsion-free box girders. This makes them especially suitable for lifting and transporting heavy loads.


Daul rail overhead crane is characterized by strong bearing, big span, and overall stability with various models, but their quality is better compared with single girder gantry crane with the same capacity. They are available with load capacities up to 50T and with spans up to 35 m. Articulated end carriage joints ensure positive contact of all four wheels with the track. The range of fixing arrangements allows the appropriate integration of double girder travelling cranes into new buildings as well as into existing buildings. Just as with all other types of double girder travelling cranes, the profiles of the main girder are optimally produced using computers so that maximum performance with a minimum of dead-weight can be achieved. An advantage that has financial benefits.


Dual rail overhead industrial crane with hoist are widely used in the following applications:

1.       Light duty cranes for repair shops, light assembly operations, service buildings, light warehouses, where service requirements are infrequent.

2.       Medium duty cranes for machine shops and general industrial use both indoor and outdoor application.

3.       Extra heavy duty cranes for steel mills and other heavy machine shops, steel warehouses, heavy fabrication shops, paper mills etc. with magnet and bucket operation for scrap yards, fertilizer plants & induction furnace.

4.       Extra heavy duty cranes for steel mills and other heavy engineering purposes. Cranes designed for hot metal application on request.

Design features include:


Compact dimensions, low weight, easy to operate and easy to maintain, modular design with direct fits between components


Bridge Girder, End carriages, Crab Frame manufactured from box plate design / Rolled Sections. If required 100% radiography of all butt welding joints of bridge and end carriages can be provided.


NANTE Crane uses sturdy cylindrical/ conical rotor pole-changing motors with elegant continuous cast aluminum sections, integrated safety brakes insulation class F, IP54 protection.

Variable Frequency Drives & Remote Controls –

We also offer Variable Frequency Drive in hoisting, cross travel, long travel for stepless speed control as an optional feature. We also provide radio remote control cranes for application in inaccessible and hazardous areas.

Brakes –

Failsafe magnetic or hydraulic brakes of 150% torque or more are fitted on shaft extensions. For heavy duty cranes a second brake can be mounted to ensure failsafe operation.

Controls –

Pendant control from floor, master control switches, master controllers in the driver's cabin can be provided. Radio remote control can be provided on request.


Modular design, covering a very wide operating range. The systems are designed for ease of installation and maintenance and reliable operation, with fuseless circuitry, ducted wiring and non-screwed terminals. Each drive group is equipped with a motor overload protection device to provide effective protection against inadmissible overloading.


Every component & part is thoroughly scrubbed & painted with two coats of primer before assembly & two coats of synthetic enamel after testing.


To prevent over hoisting & over lowering of hook.
