|Color:||Green, White Or Orange||Conductor Material:||Copper|
|Standard Length:||4m||Leakage Distance:||30~35mm|
bridge crane kits,
parts of an overhead crane

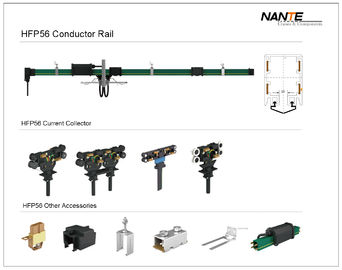

HFP56 Powerail Enclosed Conductor System
•Standard length: 4m.
•Conductor material: copper
•Single powerline, easytrack, single flexline, multiline, boxline
Detailed Product Description

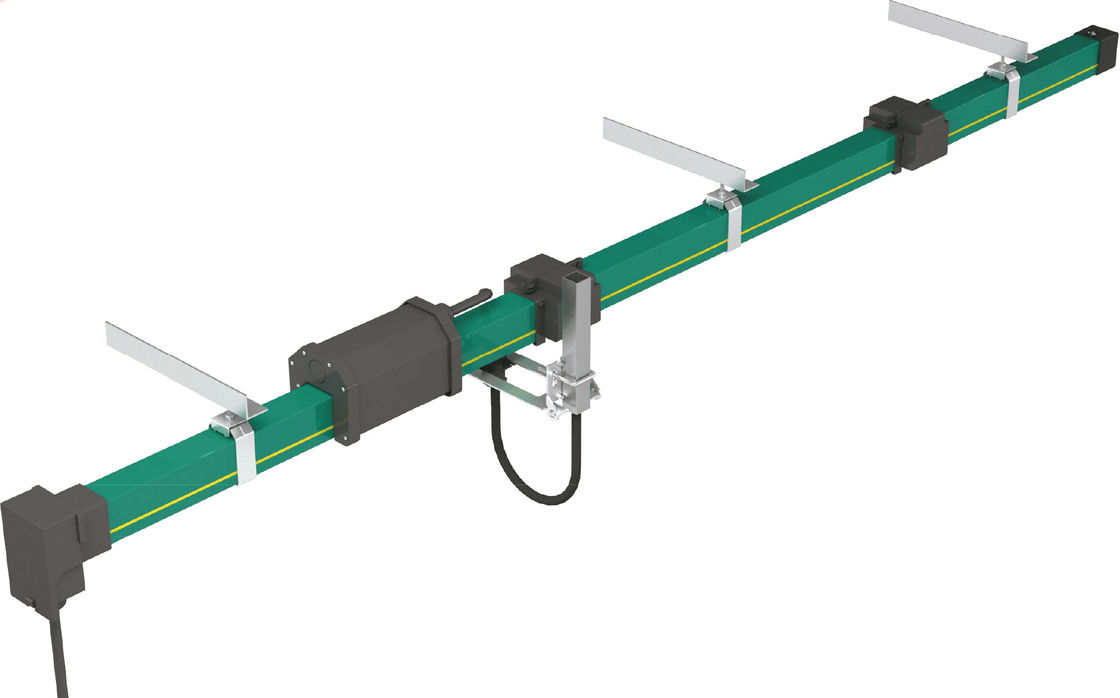

The bottom opening can be sealed with a neoprene sealing strip to keep debris and fumes out. The current collector is self-guided in these systems and only needs to be towed with a towing arm. Multiple copper conductors in an enclosure (aluminium or PVC housing) is available in 3 to 16 conductors and amperage capacities from 30 to 240.
The ranges of applications of HFP Power Rail Enclosed Conductor System
Compact arrangement, corrosion resistance and simple assembly are its essential features.
Color green, PVC housing for 4 conductors. Standard section 4 m.
Other sections are available.
The ground conductor is identified by international color code.
Through PVC joint caps.
Line feeds or end feeds.
The open ends of the powerail are closed by end caps for HFP.
Standard brackets for powerail attachment to crane girders are available.
Powerail with sliding and fixpoint hangers.
Standard distance between suspension points for indoor and outdoor installations: 1200mm.
Expansion during temperature fluctuation
The Expansion sections are required to compensate the different expansions between copper conductors and steel-or concrete structures, in varying temperatures without interrupting electrial power.
Expansion joints are used when the Powerail length between feeds, curves, switches or other fix points is exceeding 20m.
Install one expansion joint every 100m.
PVC Shrouded Conductor Rail
|Model||Pole No.||Cross section||Max. current||Leakage-distance||Max. voltage||Resistance||Weight|
